AD7814ARM-REEL7

AD7814ARM-REEL7 Overview

Product belongs to the AD7814 series. This product is categorized as Temperature Sensor Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style MSOP-8 Operational temperature range: -55°C ~ 125°C Output-Type: SPI Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 8-MSOP Configuration Local Accuracy is rated at 2 C . Digital, Local Operating temperature: 0°C ~ 85°C (-55°C ~ 125°C) Operating temperature: -55°C ~ 125°C Temperature accuracy: ±2°C (±3.5°C) Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 400 uA is 92 nA. 3-Wire Microwire SPI interface type Maximum supply voltage of 5.5 VDC Minimum supply voltage is 2.7 VDC

AD7814ARM-REEL7 Image

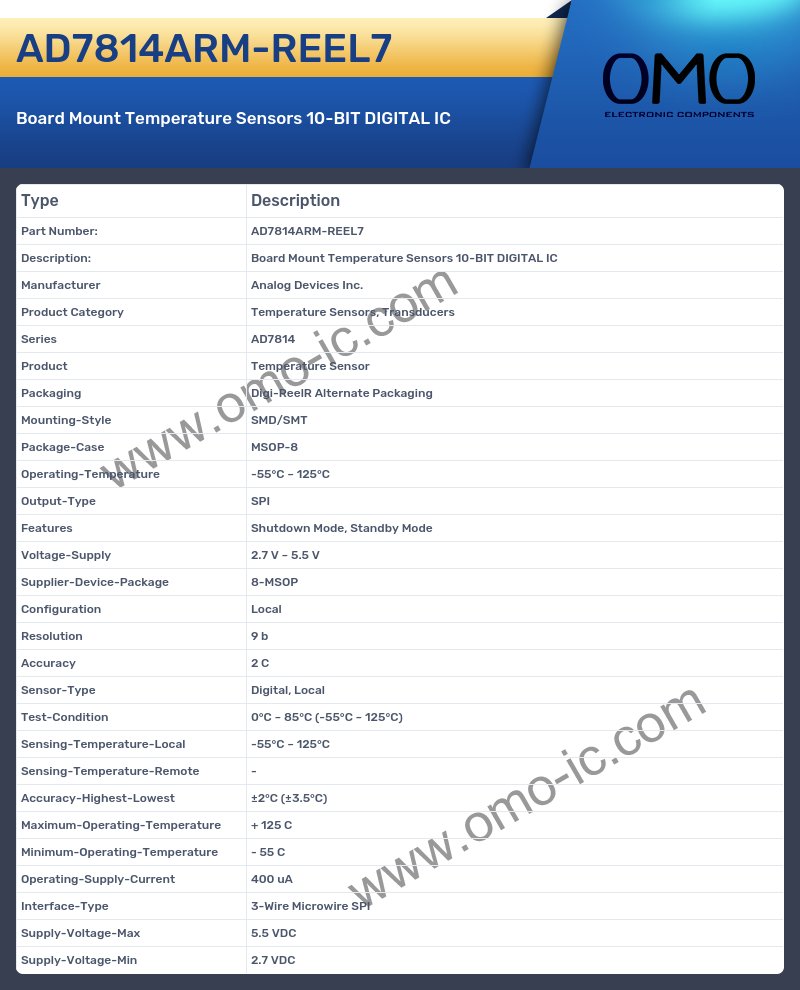

AD7814ARM-REEL7 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Temperature Sensors, Transducers
• Series AD7814
• Product Temperature Sensor
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case MSOP-8
• Operating-Temperature -55°C ~ 125°C
• Output-Type SPI
• Features Shutdown Mode, Standby Mode
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 8-MSOP
• Configuration Local
• Resolution 9 b
• Accuracy 2 C
• Sensor-Type Digital, Local
• Test-Condition 0°C ~ 85°C (-55°C ~ 125°C)
• Sensing-Temperature-Local -55°C ~ 125°C
• Sensing-Temperature-Remote -
• Accuracy-Highest-Lowest ±2°C (±3.5°C)
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 400 uA
• Interface-Type 3-Wire Microwire SPI
• Supply-Voltage-Max 5.5 VDC
• Supply-Voltage-Min 2.7 VDC
