AD7847AR

AD7847AR Overview

Product belongs to the AD7847 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tube Alternate Packaging is the packaging method for this product Weight of 0.038731 oz SMD/SMT Mounting-Style SOIC-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 2 Channel Supplier device package: 24-SOIC W Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±14.25 V ~ 15.75 V. The Voltage Supply Digital for this product is -. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 2 The 5μs is an impressive 15 us. No Differential-Output Power-off control: 1000 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 8 mA is 92 nA. Parallel interface type Maximum supply voltage of 15.75 V Minimum supply voltage is 14.25 V Number-of-Converters: 2 Converter 250 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

AD7847AR Image

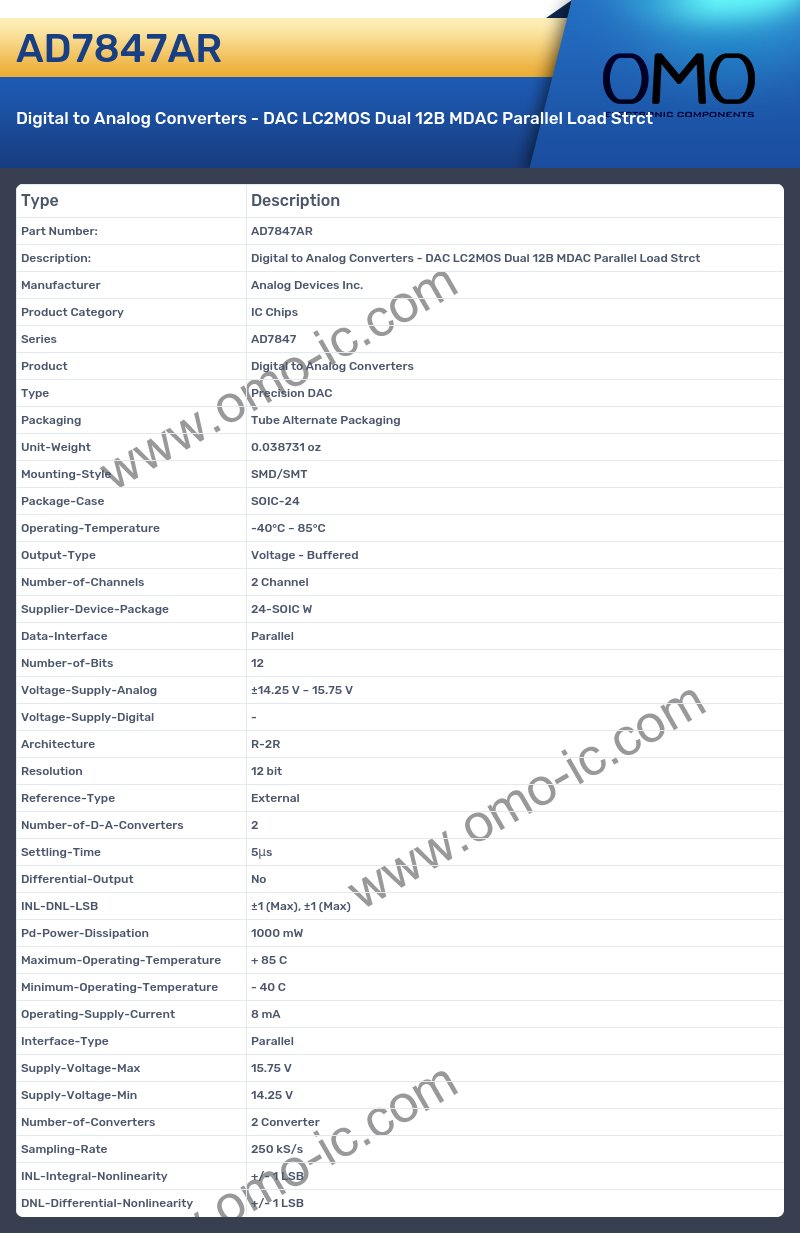

AD7847AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series AD7847
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.038731 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 24-SOIC W
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±14.25 V ~ 15.75 V
• Voltage-Supply-Digital -
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 5μs
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 8 mA
• Interface-Type Parallel
• Supply-Voltage-Max 15.75 V
• Supply-Voltage-Min 14.25 V
• Number-of-Converters 2 Converter
• Sampling-Rate 250 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
