AD8072JRZ

AD8072JRZ Overview

Product belongs to the AD8072 series. This product is categorized as Video Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Surface Mount mounting type Output-Type: - Versatile Current Feedback applications for maximum usability Number of channels: 2 Channel Supplier device package: 8-SOIC 2 is 8. Voltage supply range: 5 V ~ 12 V, ±2.5 V ~ 6 V This product has a 3.5mA of 200μA. The 100MHz The 500 V/μs. Current-Output-Channel is 30mA The amplifier is of Current Feedback Amplifier type. Power-off control: 900 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 3.5 mA is 92 nA. The AD8072JR-EBZ. Maximum supply voltage of +/- 6 V Minimum supply voltage is +/- 2.5 V Input bias current of 10 uA at 5 V The 4 mV at 5 V. The 64 dB (Typ). The CMRR-Common-Mode-Rejection-Ratio is 54 dB (Typ). 100 MHz is the 3-dB bandwidth of the product.

AD8072JRZ Image

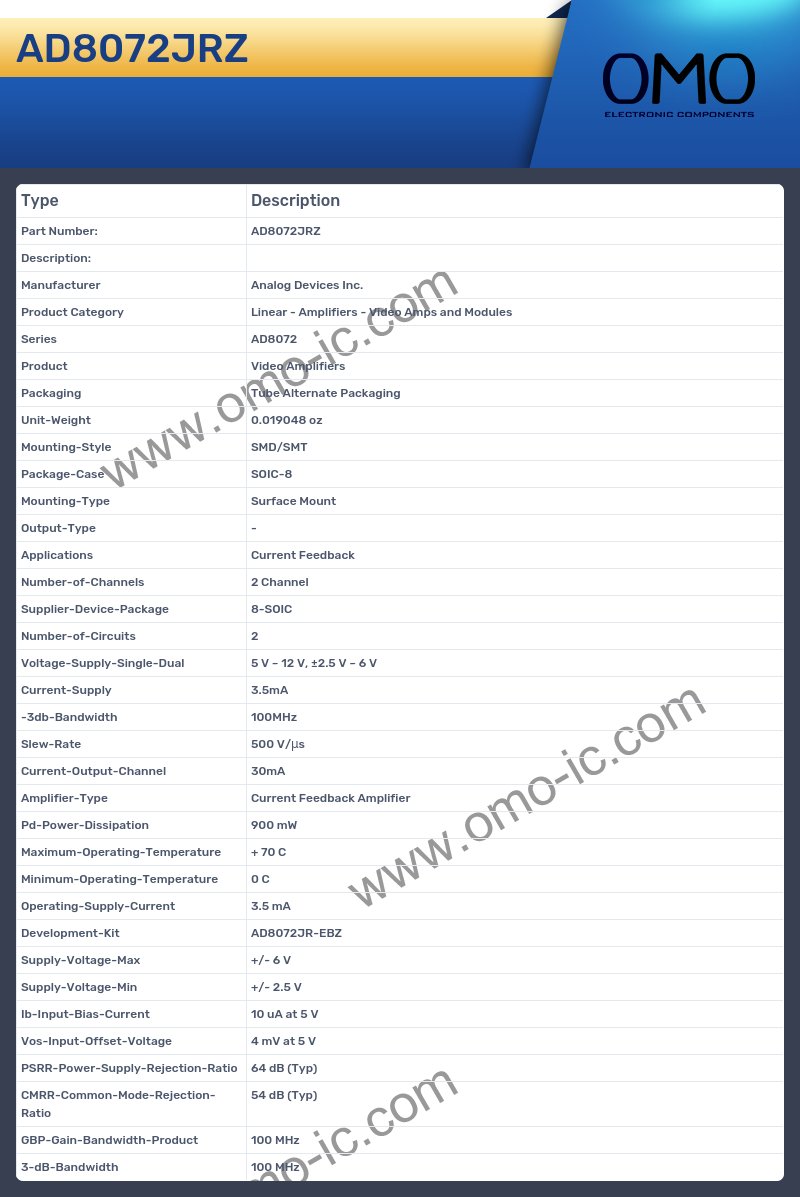

AD8072JRZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series AD8072
• Product Video Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Mounting-Type Surface Mount
• Output-Type -
• Applications Current Feedback
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SOIC
• Number-of-Circuits 2
• Voltage-Supply-Single-Dual 5 V ~ 12 V, ±2.5 V ~ 6 V
• Current-Supply 3.5mA
• -3db-Bandwidth 100MHz
• Slew-Rate 500 V/μs
• Current-Output-Channel 30mA
• Amplifier-Type Current Feedback Amplifier
• Pd-Power-Dissipation 900 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 3.5 mA
• Development-Kit AD8072JR-EBZ
• Supply-Voltage-Max +/- 6 V
• Supply-Voltage-Min +/- 2.5 V
• Ib-Input-Bias-Current 10 uA at 5 V
• Vos-Input-Offset-Voltage 4 mV at 5 V
• PSRR-Power-Supply-Rejection-Ratio 64 dB (Typ)
• CMRR-Common-Mode-Rejection-Ratio 54 dB (Typ)
• GBP-Gain-Bandwidth-Product 100 MHz
• 3-dB-Bandwidth 100 MHz
