AD810AR

AD810AR Overview

Product belongs to the AD810 series. This product is categorized as Video Amplifiers Tube is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 The No for this product is CMOS/TTL. Surface Mount mounting type Output-Type: No Versatile Current Feedback applications for maximum usability Number of channels: 1 Channel Supplier device package: 8-SOIC 1 is 8. Voltage supply range: 5 V ~ 36 V, ±2.5 V ~ 18 V This product has a 6.8mA of 200μA. The 80MHz The 1000 V/μs. Current-Output-Channel is 60mA The amplifier is of Current Feedback Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Input bias current of 7.5 uA The 6 mV. The 65 dB. The CMRR-Common-Mode-Rejection-Ratio is 52 dB. The 2.9 nV/sqrt Hz of this product is 110 nV/sqrt Hz. 80 MHz is the 3-dB bandwidth of the product. 88 dB voltage gain

AD810AR Image

AD810AR Specifications

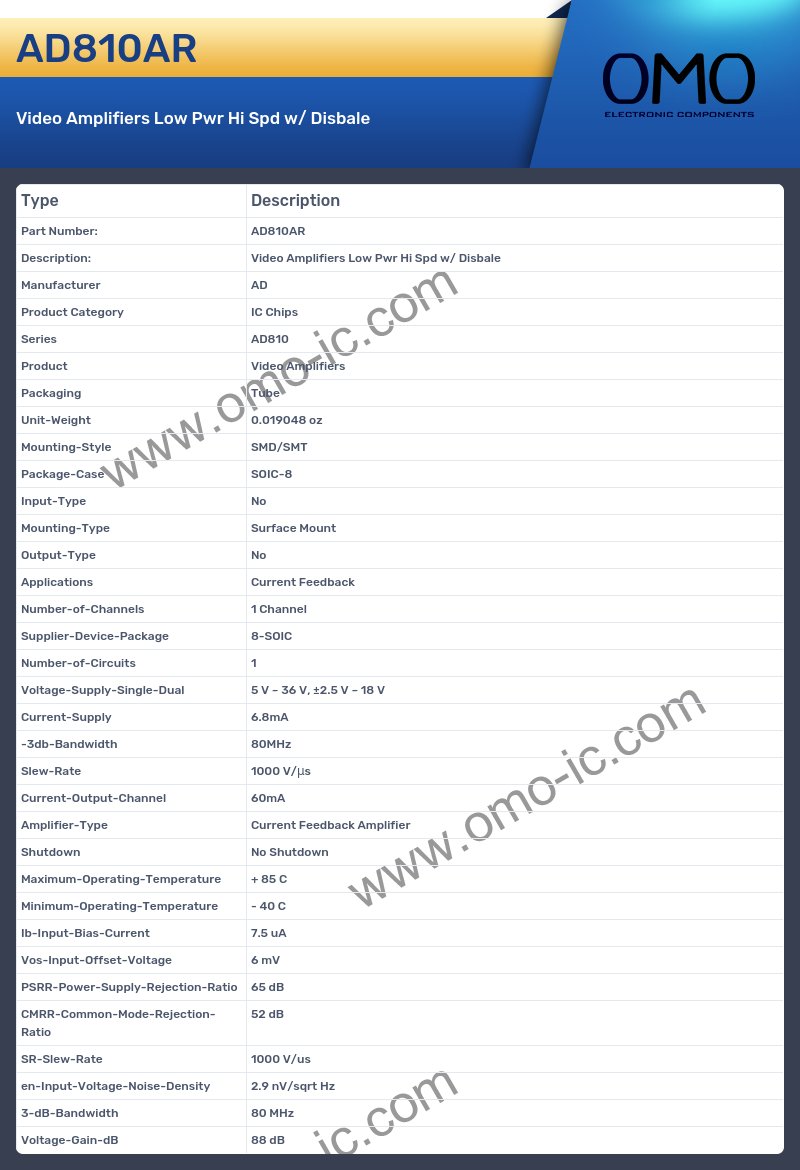

• Manufacturer AD
• Product Category IC Chips
• Series AD810
• Product Video Amplifiers
• Packaging Tube
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type No
• Mounting-Type Surface Mount
• Output-Type No
• Applications Current Feedback
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Number-of-Circuits 1
• Voltage-Supply-Single-Dual 5 V ~ 36 V, ±2.5 V ~ 18 V
• Current-Supply 6.8mA
• -3db-Bandwidth 80MHz
• Slew-Rate 1000 V/μs
• Current-Output-Channel 60mA
• Amplifier-Type Current Feedback Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Ib-Input-Bias-Current 7.5 uA
• Vos-Input-Offset-Voltage 6 mV
• PSRR-Power-Supply-Rejection-Ratio 65 dB
• CMRR-Common-Mode-Rejection-Ratio 52 dB
• SR-Slew-Rate 1000 V/us
• en-Input-Voltage-Noise-Density 2.9 nV/sqrt Hz
• 3-dB-Bandwidth 80 MHz
• Voltage-Gain-dB 88 dB
