AD812AR Overview

Product belongs to the AD812 series. This product is categorized as Video Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Surface Mount mounting type Output-Type: - Versatile Current Feedback applications for maximum usability Number of channels: 2 Channel Supplier device package: 8-SOIC 2 is 8. Voltage supply range: 2.4 V ~ 36 V, ±1.2 V ~ 18 V This product has a 4.5mA of 200μA. The 145MHz The 1600 V/μs. Current-Output-Channel is 50mA The amplifier is of Current Feedback type. Power-off control: 900 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 11 mA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 2.4 V Input bias current of 1.5 uA at 5 V The 2 mV. The 80 dB. 50 mA The CMRR-Common-Mode-Rejection-Ratio is 58 dB. 115 dB voltage gain

AD812AR Image

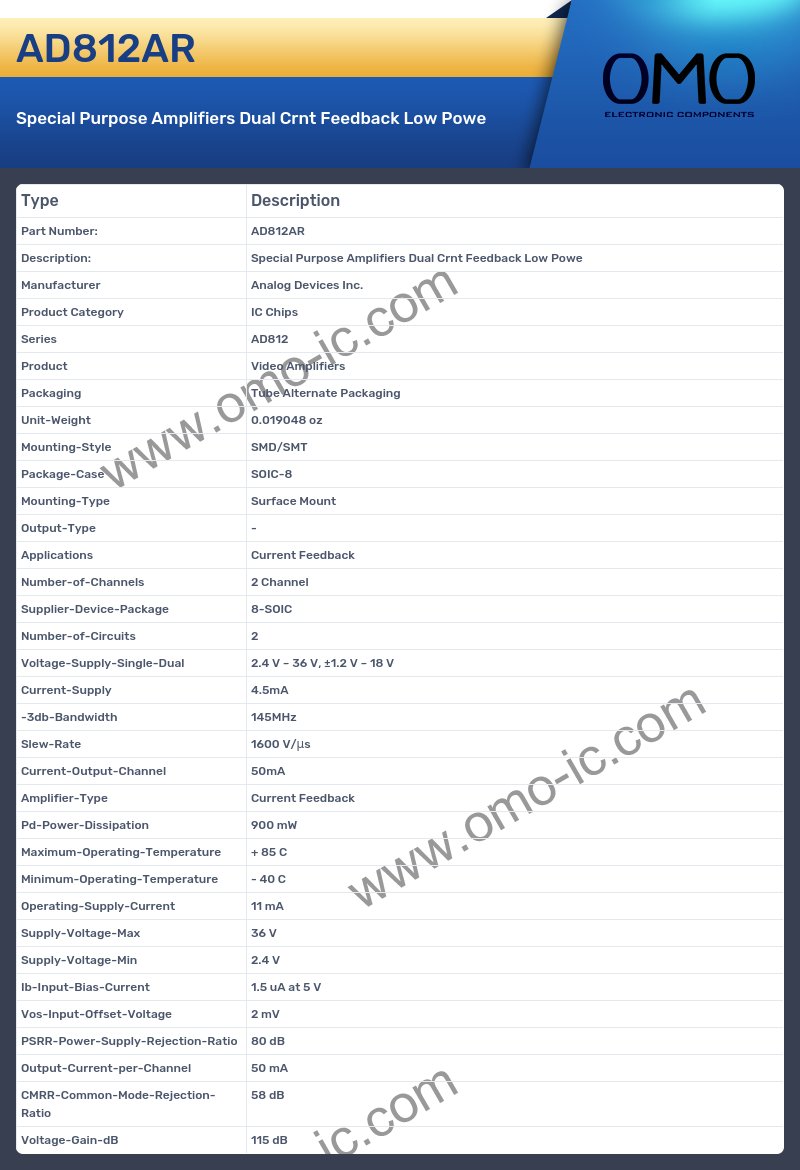

AD812AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series AD812
• Product Video Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Mounting-Type Surface Mount
• Output-Type -
• Applications Current Feedback
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SOIC
• Number-of-Circuits 2
• Voltage-Supply-Single-Dual 2.4 V ~ 36 V, ±1.2 V ~ 18 V
• Current-Supply 4.5mA
• -3db-Bandwidth 145MHz
• Slew-Rate 1600 V/μs
• Current-Output-Channel 50mA
• Amplifier-Type Current Feedback
• Pd-Power-Dissipation 900 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 11 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 2.4 V
• Ib-Input-Bias-Current 1.5 uA at 5 V
• Vos-Input-Offset-Voltage 2 mV
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• Output-Current-per-Channel 50 mA
• CMRR-Common-Mode-Rejection-Ratio 58 dB
• Voltage-Gain-dB 115 dB
