AD812ARZ

AD812ARZ Overview

Product belongs to the AD812 series. This product is categorized as Video Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Surface Mount mounting type Output-Type: - Versatile Current Feedback applications for maximum usability Number of channels: 2 Channel Supplier device package: 8-SOIC 2 is 8. Voltage supply range: 2.4 V ~ 36 V, ±1.2 V ~ 18 V This product has a 4.5mA of 200μA. The 145MHz The 1600 V/μs. Current-Output-Channel is 50mA The amplifier is of Current Feedback type. Power-off control: 0.9 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 4.5 mA is 92 nA. The AD812AR-EBZ. Maximum supply voltage of 36 V Minimum supply voltage is 2.4 V Input bias current of 38 uA The 2 mV. The 80 dB. 50 mA The CMRR-Common-Mode-Rejection-Ratio is 58 dB. 82 dB voltage gain

AD812ARZ Image

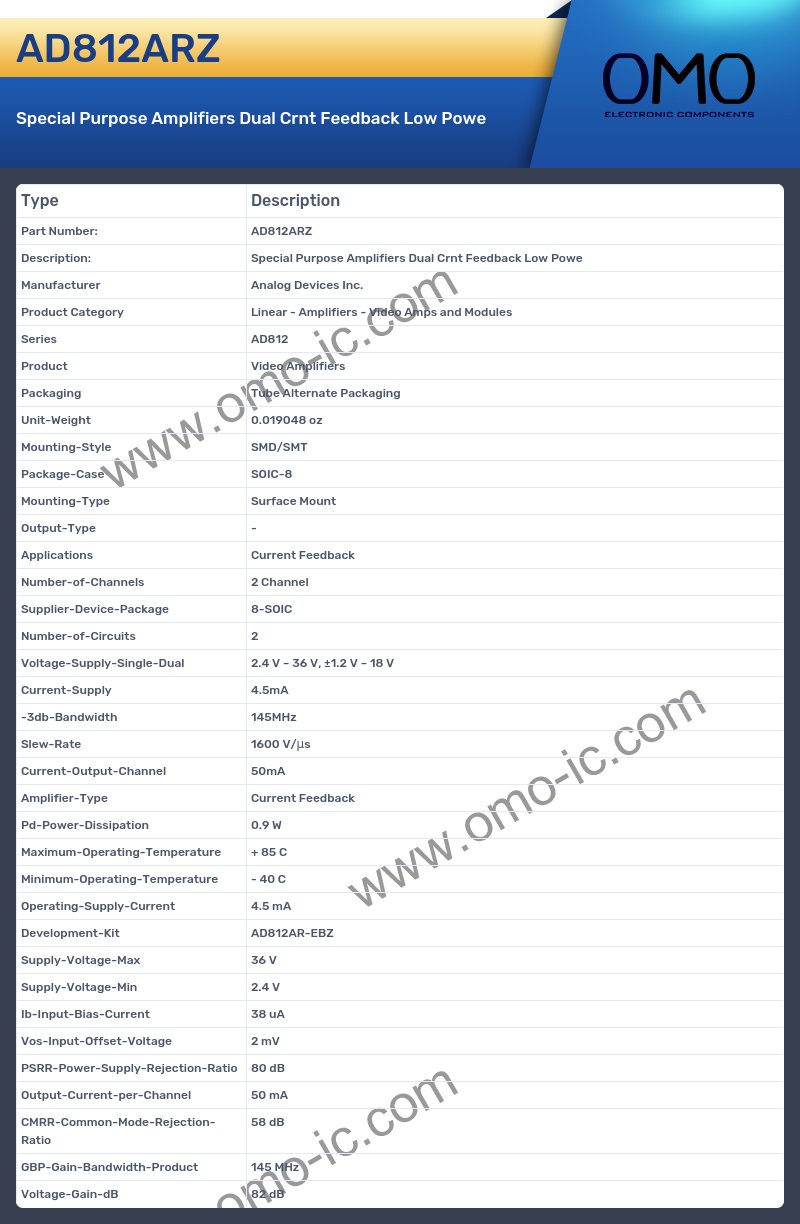

AD812ARZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series AD812
• Product Video Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Mounting-Type Surface Mount
• Output-Type -
• Applications Current Feedback
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SOIC
• Number-of-Circuits 2
• Voltage-Supply-Single-Dual 2.4 V ~ 36 V, ±1.2 V ~ 18 V
• Current-Supply 4.5mA
• -3db-Bandwidth 145MHz
• Slew-Rate 1600 V/μs
• Current-Output-Channel 50mA
• Amplifier-Type Current Feedback
• Pd-Power-Dissipation 0.9 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 4.5 mA
• Development-Kit AD812AR-EBZ
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 2.4 V
• Ib-Input-Bias-Current 38 uA
• Vos-Input-Offset-Voltage 2 mV
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• Output-Current-per-Channel 50 mA
• CMRR-Common-Mode-Rejection-Ratio 58 dB
• GBP-Gain-Bandwidth-Product 145 MHz
• Voltage-Gain-dB 82 dB
