AD822AN

AD822AN Overview

Product belongs to the AD822 series. This product is categorized as Precision Amplifiers Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style Output-Type: Rail to Rail Output Number of channels: 2 Channel Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 1.3 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 5 V PDIP-8 Input bias current of 25 pA The 100 uV. The 80 dB. 15 mA The CMRR-Common-Mode-Rejection-Ratio is 80 dB. The 25 nV/sqrt Hz at 5 V of this product is 110 nV/sqrt Hz. 120 dB voltage gain

AD822AN Image

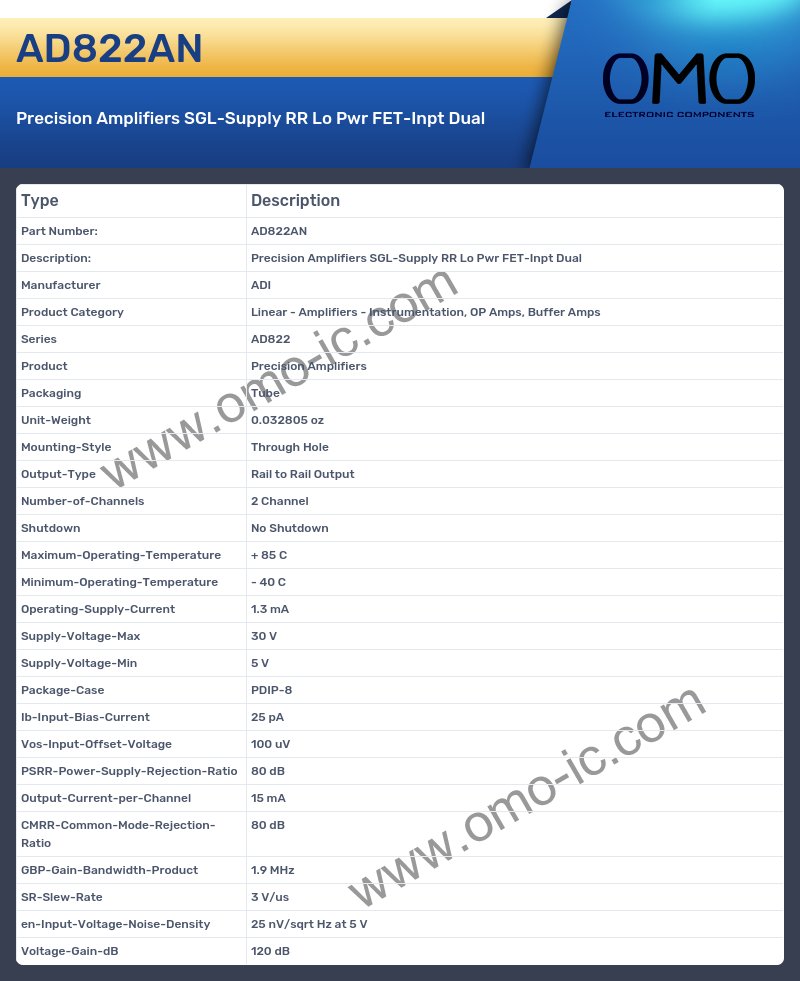

AD822AN Specifications

• Manufacturer ADI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series AD822
• Product Precision Amplifiers
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Output-Type Rail to Rail Output
• Number-of-Channels 2 Channel
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.3 mA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 5 V
• Package-Case PDIP-8
• Ib-Input-Bias-Current 25 pA
• Vos-Input-Offset-Voltage 100 uV
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• Output-Current-per-Channel 15 mA
• CMRR-Common-Mode-Rejection-Ratio 80 dB
• GBP-Gain-Bandwidth-Product 1.9 MHz
• SR-Slew-Rate 3 V/us
• en-Input-Voltage-Noise-Density 25 nV/sqrt Hz at 5 V
• Voltage-Gain-dB 120 dB
