AD830JR

AD830JR Overview

Product belongs to the AD830 series. This product is categorized as Differential Amplifiers Tube is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Surface Mount mounting type Output-Type: - Versatile Differential applications for maximum usability Number of channels: 1 Channel Supplier device package: 8-SOIC 1 is 8. Voltage supply range: 8 V ~ 33 V, ±4 V ~ 16.5 V This product has a 14.5mA of 200μA. The 85MHz The 360 V/μs. Current-Output-Channel is 50mA The amplifier is of Video Line Receiver type. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 14.5 mA is 92 nA. Maximum supply voltage of 33 V Minimum supply voltage is 8 V Input bias current of 10 uA The 1.5 mV. The - 12 V to + 12.8 V. 50 mA The CMRR-Common-Mode-Rejection-Ratio is 90 dB. The 27 nV/sqrt Hz of this product is 110 nV/sqrt Hz. Gain in voltage per voltage: 1 V/V 85 MHz is the 3-dB bandwidth of the product. Maximum Input Resistance" is " 370 kOhms This product's 15 MHz.

AD830JR Image

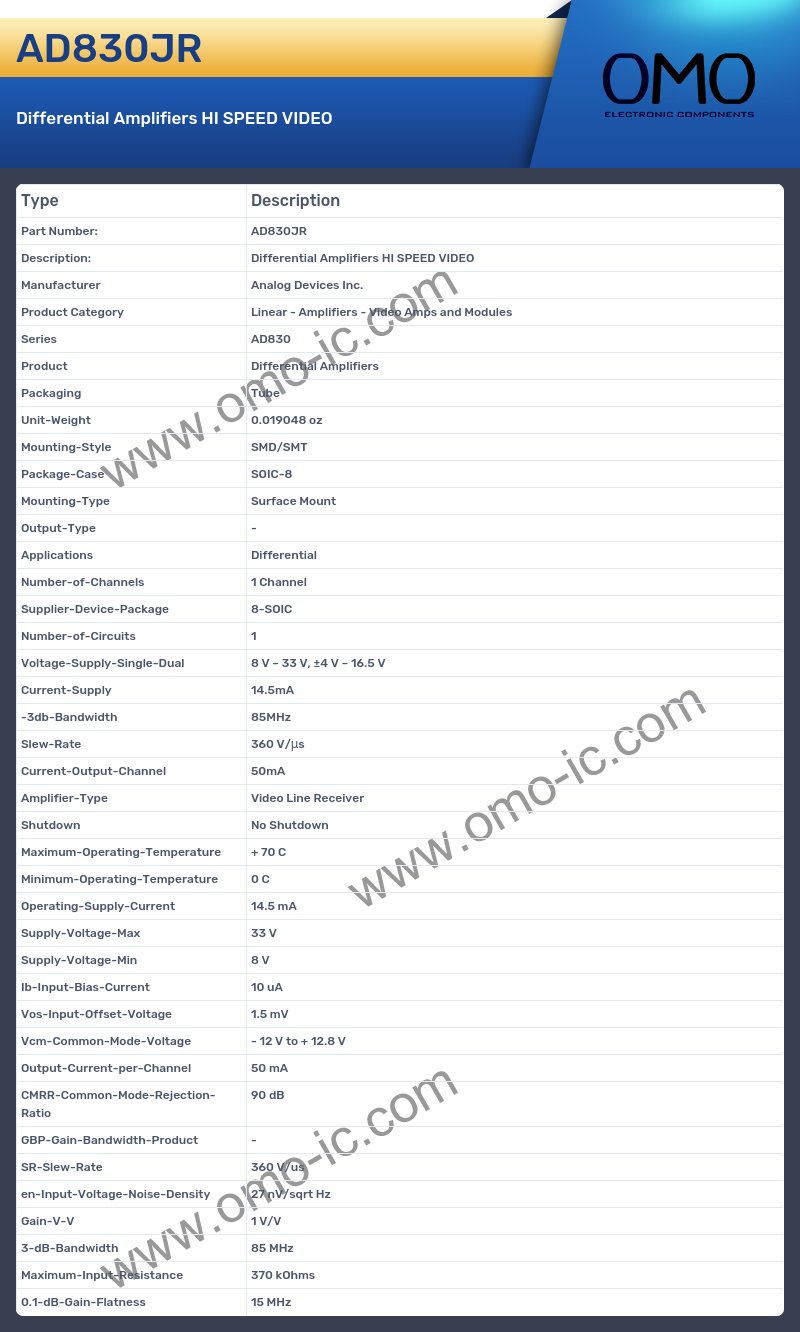

AD830JR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series AD830
• Product Differential Amplifiers
• Packaging Tube
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Mounting-Type Surface Mount
• Output-Type -
• Applications Differential
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Number-of-Circuits 1
• Voltage-Supply-Single-Dual 8 V ~ 33 V, ±4 V ~ 16.5 V
• Current-Supply 14.5mA
• -3db-Bandwidth 85MHz
• Slew-Rate 360 V/μs
• Current-Output-Channel 50mA
• Amplifier-Type Video Line Receiver
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 14.5 mA
• Supply-Voltage-Max 33 V
• Supply-Voltage-Min 8 V
• Ib-Input-Bias-Current 10 uA
• Vos-Input-Offset-Voltage 1.5 mV
• Vcm-Common-Mode-Voltage - 12 V to + 12.8 V
• Output-Current-per-Channel 50 mA
• CMRR-Common-Mode-Rejection-Ratio 90 dB
• GBP-Gain-Bandwidth-Product -
• SR-Slew-Rate 360 V/us
• en-Input-Voltage-Noise-Density 27 nV/sqrt Hz
• Gain-V-V 1 V/V
• 3-dB-Bandwidth 85 MHz
• Maximum-Input-Resistance 370 kOhms
• 0.1-dB-Gain-Flatness 15 MHz
