| Mfr. #: | ADG1312YRZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs 130 Ohm 16.5V Quad SPST NC |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG1312YRZ Datenblatt |
Product belongs to the ADG1312 series. Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style Configuration 4 x SPST Power-off control: 4.8 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 380 uA Maximum supply voltage of 16.5 V Minimum supply voltage is 5 V SOIC-16 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 5 V Single Supply Dual Supply supply type Max on-resistance of 200 Ohms Maximum off time: 50 ns 4 Switch switch functionality Maximum on-time: 125 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 25 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

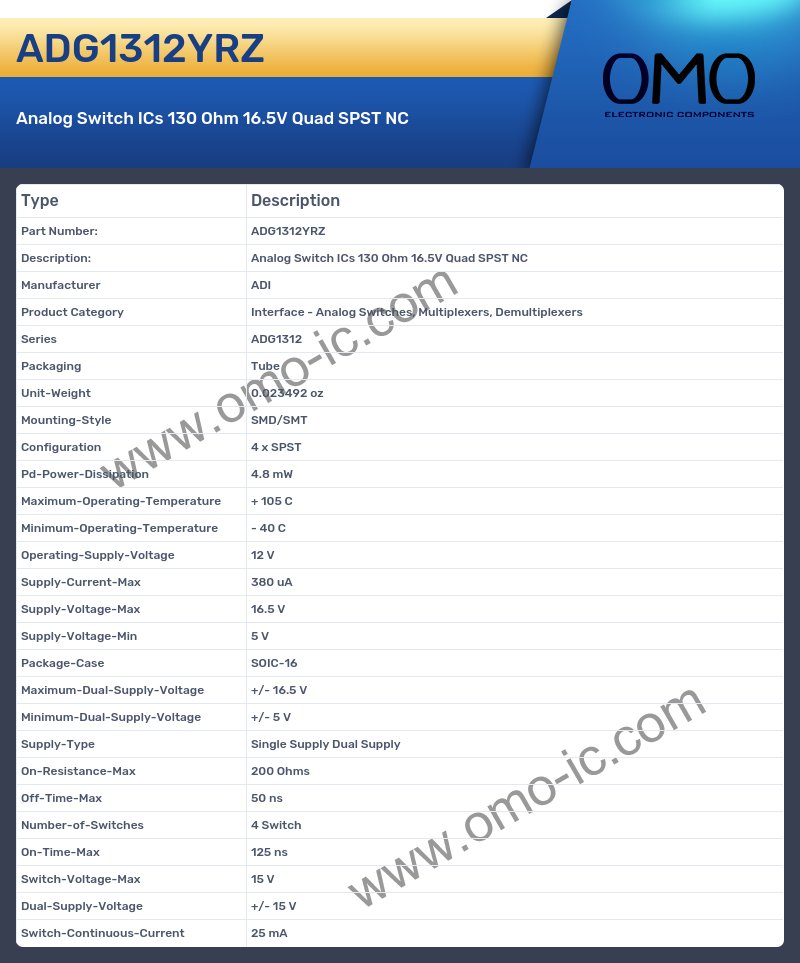

ADG1312YRZ Specifications
A: What is the Series of the product?
Q: The Series of the product is ADG1312.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.023492 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed 4 x SPST
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 4.8 mW.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 105 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 12 V.
A: Is the cutoff frequency of the product Supply-Current-Max?
Q: Yes, the product's Supply-Current-Max is indeed 380 uA
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 16.5 V
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 5 V.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-16
A: At what frequency does the Maximum-Dual-Supply-Voltage?
Q: The product Maximum-Dual-Supply-Voltage is +/- 16.5 V.
A: Is the cutoff frequency of the product Minimum-Dual-Supply-Voltage?
Q: Yes, the product's Minimum-Dual-Supply-Voltage is indeed +/- 5 V
A: What is the Supply-Type of the product?
Q: The Supply-Type of the product is Single Supply Dual Supply.
A: Is the cutoff frequency of the product On-Resistance-Max?
Q: Yes, the product's On-Resistance-Max is indeed 200 Ohms
A: Is the cutoff frequency of the product Off-Time-Max?
Q: Yes, the product's Off-Time-Max is indeed 50 ns
A: What is the Number-of-Switches of the product?
Q: The Number-of-Switches of the product is 4 Switch.
A: At what frequency does the On-Time-Max?
Q: The product On-Time-Max is 125 ns.
A: Is the cutoff frequency of the product Switch-Voltage-Max?
Q: Yes, the product's Switch-Voltage-Max is indeed 15 V
A: At what frequency does the Dual-Supply-Voltage?
Q: The product Dual-Supply-Voltage is +/- 15 V.
A: At what frequency does the Switch-Continuous-Current?
Q: The product Switch-Continuous-Current is 25 mA.
