| Mfr. #: | ADG1421BRMZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs IC 64dB 2.1 Ohm iCMOS Dual SPST |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG1421BRMZ Datenblatt |
Product belongs to the ADG1421 series. Tube is the packaging method for this product Weight of 0.005051 oz SMD/SMT Mounting-Style Configuration 2 x SPST Power-off control: 1.8 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 190 uA Maximum supply voltage of 16.5 V Minimum supply voltage is 5 V MSOP-10 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 5 V Single Supply Dual Supply supply type Max on-resistance of 2.4 Ohms Maximum off time: 145 ns 2 Switch switch functionality Maximum on-time: 145 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 185 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

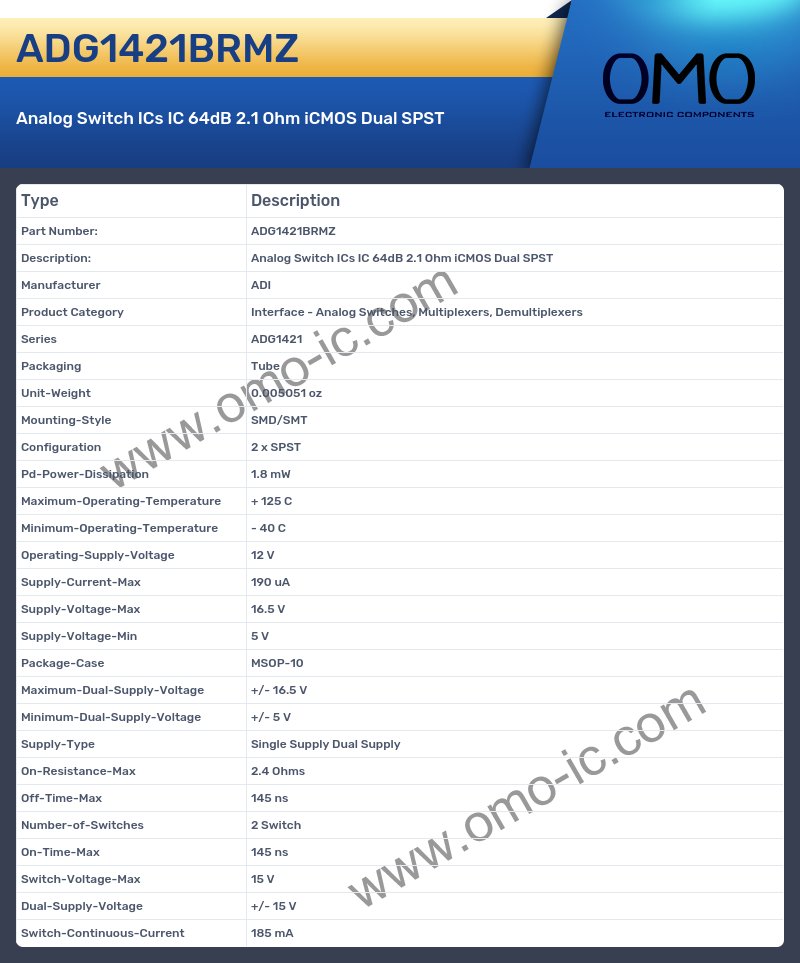

ADG1421BRMZ Specifications
A: What is the Series of the product?
Q: The Series of the product is ADG1421.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.005051 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Configuration of the product?
Q: The Configuration of the product is 2 x SPST.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 1.8 mW
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 12 V
A: What is the Supply-Current-Max of the product?
Q: The Supply-Current-Max of the product is 190 uA.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 16.5 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 5 V.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is MSOP-10.
A: At what frequency does the Maximum-Dual-Supply-Voltage?
Q: The product Maximum-Dual-Supply-Voltage is +/- 16.5 V.
A: What is the Minimum-Dual-Supply-Voltage of the product?
Q: The Minimum-Dual-Supply-Voltage of the product is +/- 5 V.
A: Is the cutoff frequency of the product Supply-Type?
Q: Yes, the product's Supply-Type is indeed Single Supply Dual Supply
A: What is the On-Resistance-Max of the product?
Q: The On-Resistance-Max of the product is 2.4 Ohms.
A: Is the cutoff frequency of the product Off-Time-Max?
Q: Yes, the product's Off-Time-Max is indeed 145 ns
A: Is the cutoff frequency of the product Number-of-Switches?
Q: Yes, the product's Number-of-Switches is indeed 2 Switch
A: What is the On-Time-Max of the product?
Q: The On-Time-Max of the product is 145 ns.
A: Is the cutoff frequency of the product Switch-Voltage-Max?
Q: Yes, the product's Switch-Voltage-Max is indeed 15 V
A: At what frequency does the Dual-Supply-Voltage?
Q: The product Dual-Supply-Voltage is +/- 15 V.
A: At what frequency does the Switch-Continuous-Current?
Q: The product Switch-Continuous-Current is 185 mA.
