| Mfr. #: | ADG1436YRUZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs 2:1 110MHz 1.5 Ohm Dual SPDT iCMOS |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG1436YRUZ Datenblatt |
Product belongs to the ADG1436 series. Tube is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style Configuration 2 x SPDT Power-off control: 30 uW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 285 uA Maximum supply voltage of 16.5 V Minimum supply voltage is 5 V TSSOP-16 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 5 V Single Supply Dual Supply supply type Max on-resistance of 1.8 Ohms Maximum off time: 130 ns 2 Switch switch functionality Maximum on-time: 120 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 260 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

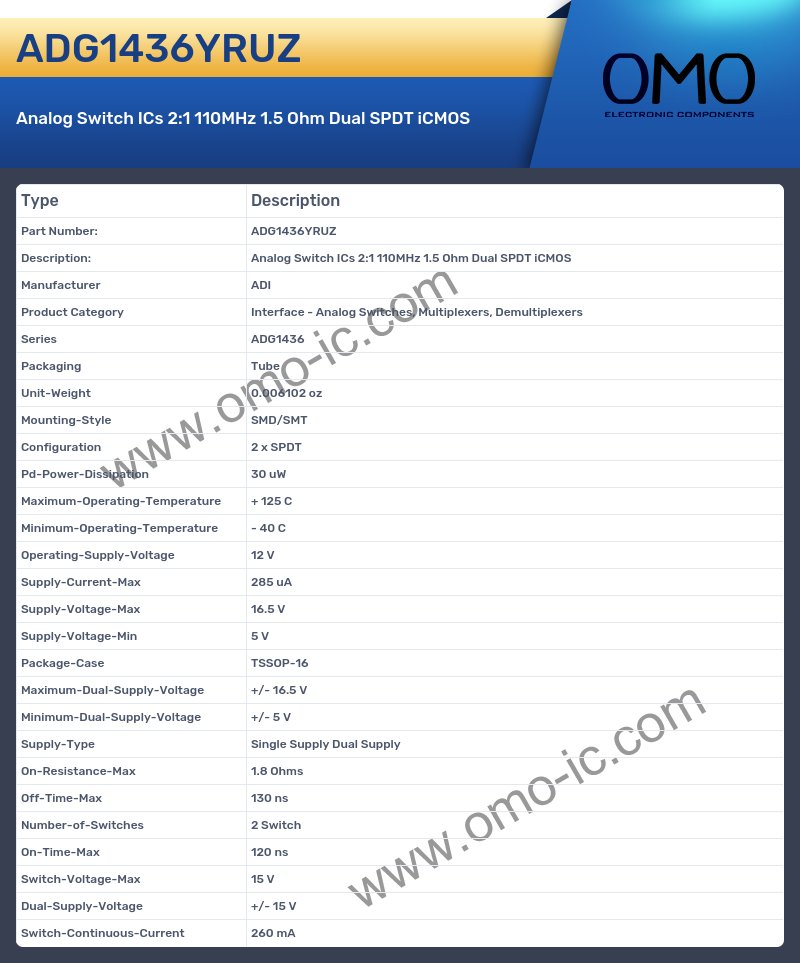

ADG1436YRUZ Specifications
A: What is the Series of the product?
Q: The Series of the product is ADG1436.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.006102 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Configuration?
Q: The product Configuration is 2 x SPDT.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 30 uW.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 125 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 12 V.
A: What is the Supply-Current-Max of the product?
Q: The Supply-Current-Max of the product is 285 uA.
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 16.5 V
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 5 V
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TSSOP-16
A: What is the Maximum-Dual-Supply-Voltage of the product?
Q: The Maximum-Dual-Supply-Voltage of the product is +/- 16.5 V.
A: Is the cutoff frequency of the product Minimum-Dual-Supply-Voltage?
Q: Yes, the product's Minimum-Dual-Supply-Voltage is indeed +/- 5 V
A: What is the Supply-Type of the product?
Q: The Supply-Type of the product is Single Supply Dual Supply.
A: Is the cutoff frequency of the product On-Resistance-Max?
Q: Yes, the product's On-Resistance-Max is indeed 1.8 Ohms
A: What is the Off-Time-Max of the product?
Q: The Off-Time-Max of the product is 130 ns.
A: Is the cutoff frequency of the product Number-of-Switches?
Q: Yes, the product's Number-of-Switches is indeed 2 Switch
A: What is the On-Time-Max of the product?
Q: The On-Time-Max of the product is 120 ns.
A: At what frequency does the Switch-Voltage-Max?
Q: The product Switch-Voltage-Max is 15 V.
A: Is the cutoff frequency of the product Dual-Supply-Voltage?
Q: Yes, the product's Dual-Supply-Voltage is indeed +/- 15 V
A: Is the cutoff frequency of the product Switch-Continuous-Current?
Q: Yes, the product's Switch-Continuous-Current is indeed 260 mA
