| Mfr. #: | ADG333ABNZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs IC +-15 V Quad SPDT |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG333ABNZ Datenblatt |
Product belongs to the ADG333A series. Tube is the packaging method for this product Weight of 0.079719 oz Through Hole Mounting-Style Configuration 4 x SPDT Power-off control: 3.77 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 250 uA Maximum supply voltage of 13.2 V Minimum supply voltage is 10.8 V PDIP-20 Maximum dual supply voltage: +/- 20 V Minimum dual supply voltage of +/- 3 V Single Supply Dual Supply supply type Max on-resistance of 45 Ohms Maximum off time: 145 ns 4 Switch switch functionality Maximum on-time: 175 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 20 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

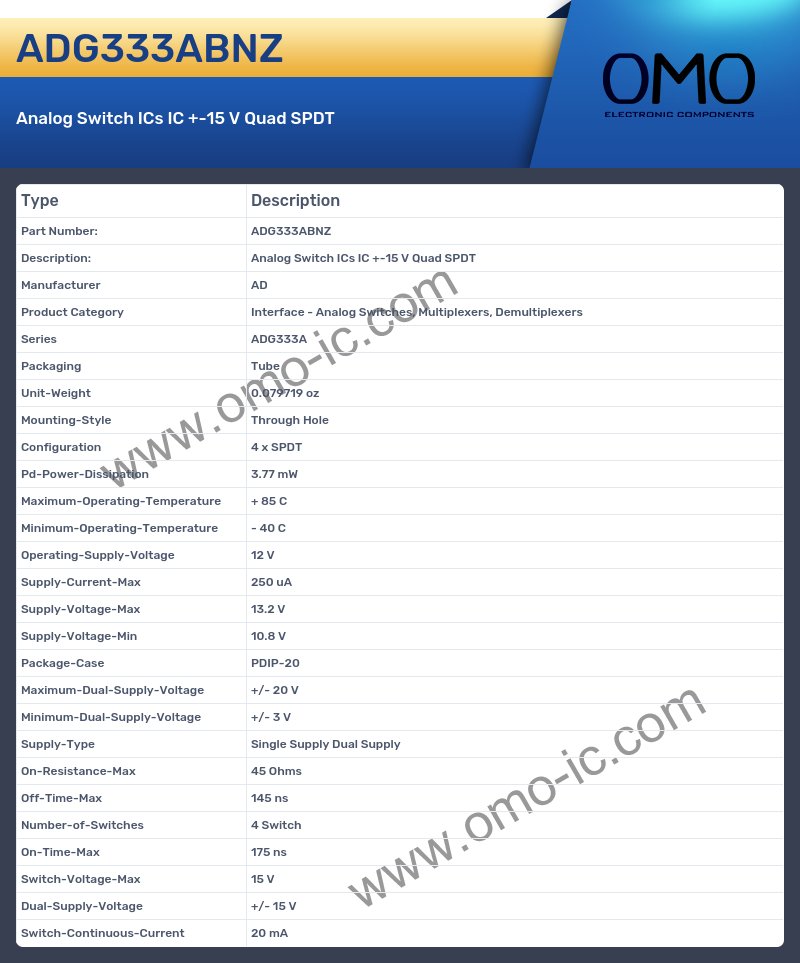

ADG333ABNZ Specifications
A: At what frequency does the Series?
Q: The product Series is ADG333A.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.079719 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: At what frequency does the Configuration?
Q: The product Configuration is 4 x SPDT.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 3.77 mW.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 12 V
A: At what frequency does the Supply-Current-Max?
Q: The product Supply-Current-Max is 250 uA.
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 13.2 V
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 10.8 V.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed PDIP-20
A: What is the Maximum-Dual-Supply-Voltage of the product?
Q: The Maximum-Dual-Supply-Voltage of the product is +/- 20 V.
A: At what frequency does the Minimum-Dual-Supply-Voltage?
Q: The product Minimum-Dual-Supply-Voltage is +/- 3 V.
A: Is the cutoff frequency of the product Supply-Type?
Q: Yes, the product's Supply-Type is indeed Single Supply Dual Supply
A: What is the On-Resistance-Max of the product?
Q: The On-Resistance-Max of the product is 45 Ohms.
A: What is the Off-Time-Max of the product?
Q: The Off-Time-Max of the product is 145 ns.
A: At what frequency does the Number-of-Switches?
Q: The product Number-of-Switches is 4 Switch.
A: Is the cutoff frequency of the product On-Time-Max?
Q: Yes, the product's On-Time-Max is indeed 175 ns
A: Is the cutoff frequency of the product Switch-Voltage-Max?
Q: Yes, the product's Switch-Voltage-Max is indeed 15 V
A: Is the cutoff frequency of the product Dual-Supply-Voltage?
Q: Yes, the product's Dual-Supply-Voltage is indeed +/- 15 V
A: Is the cutoff frequency of the product Switch-Continuous-Current?
Q: Yes, the product's Switch-Continuous-Current is indeed 20 mA
