| Mfr. #: | ADG417BNZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs LC2MOS+-15V Prec Mini-DIP SPST |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG417BNZ Datenblatt |
Product belongs to the ADG417 series. Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style Configuration 1 x SPST Power-off control: 35 uW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 1 uA Maximum supply voltage of 13.2 V Minimum supply voltage is 5 V PDIP-8 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 13.5 V Single Supply Dual Supply supply type Max on-resistance of 35 Ohms Maximum off time: 100 ns 1 Switch switch functionality Maximum on-time: 160 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 30 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

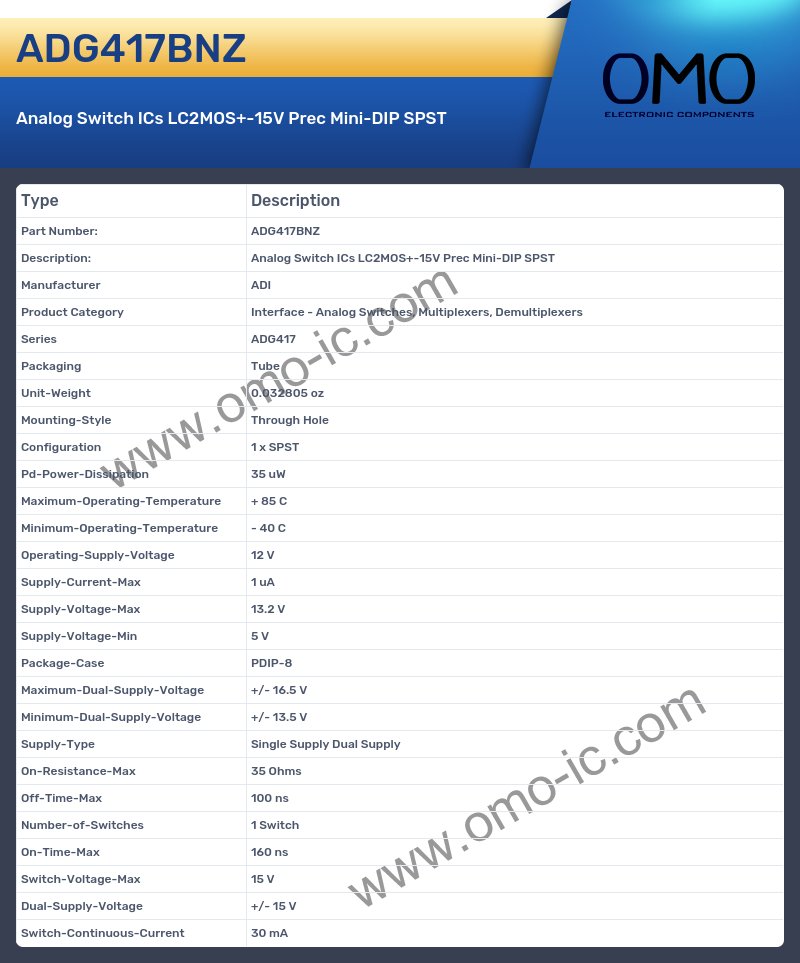

ADG417BNZ Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed ADG417
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.032805 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed 1 x SPST
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 35 uW
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 12 V.
A: What is the Supply-Current-Max of the product?
Q: The Supply-Current-Max of the product is 1 uA.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 13.2 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 5 V.
A: At what frequency does the Package-Case?
Q: The product Package-Case is PDIP-8.
A: At what frequency does the Maximum-Dual-Supply-Voltage?
Q: The product Maximum-Dual-Supply-Voltage is +/- 16.5 V.
A: Is the cutoff frequency of the product Minimum-Dual-Supply-Voltage?
Q: Yes, the product's Minimum-Dual-Supply-Voltage is indeed +/- 13.5 V
A: What is the Supply-Type of the product?
Q: The Supply-Type of the product is Single Supply Dual Supply.
A: What is the On-Resistance-Max of the product?
Q: The On-Resistance-Max of the product is 35 Ohms.
A: At what frequency does the Off-Time-Max?
Q: The product Off-Time-Max is 100 ns.
A: Is the cutoff frequency of the product Number-of-Switches?
Q: Yes, the product's Number-of-Switches is indeed 1 Switch
A: At what frequency does the On-Time-Max?
Q: The product On-Time-Max is 160 ns.
A: What is the Switch-Voltage-Max of the product?
Q: The Switch-Voltage-Max of the product is 15 V.
A: At what frequency does the Dual-Supply-Voltage?
Q: The product Dual-Supply-Voltage is +/- 15 V.
A: At what frequency does the Switch-Continuous-Current?
Q: The product Switch-Continuous-Current is 30 mA.
