| Mfr. #: | ADG417BRZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs LC2MOS+-15V Prec Mini-DIP SPST |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG417BRZ Datenblatt |
Product belongs to the ADG417 series. Tube is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style Configuration 1 x SPST Power-off control: 35 uW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 1 uA Maximum supply voltage of 13.2 V Minimum supply voltage is 5 V SOIC-8 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 13.5 V Single Supply Dual Supply supply type Max on-resistance of 35 Ohms Maximum off time: 100 ns 1 Switch switch functionality Maximum on-time: 160 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 30 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

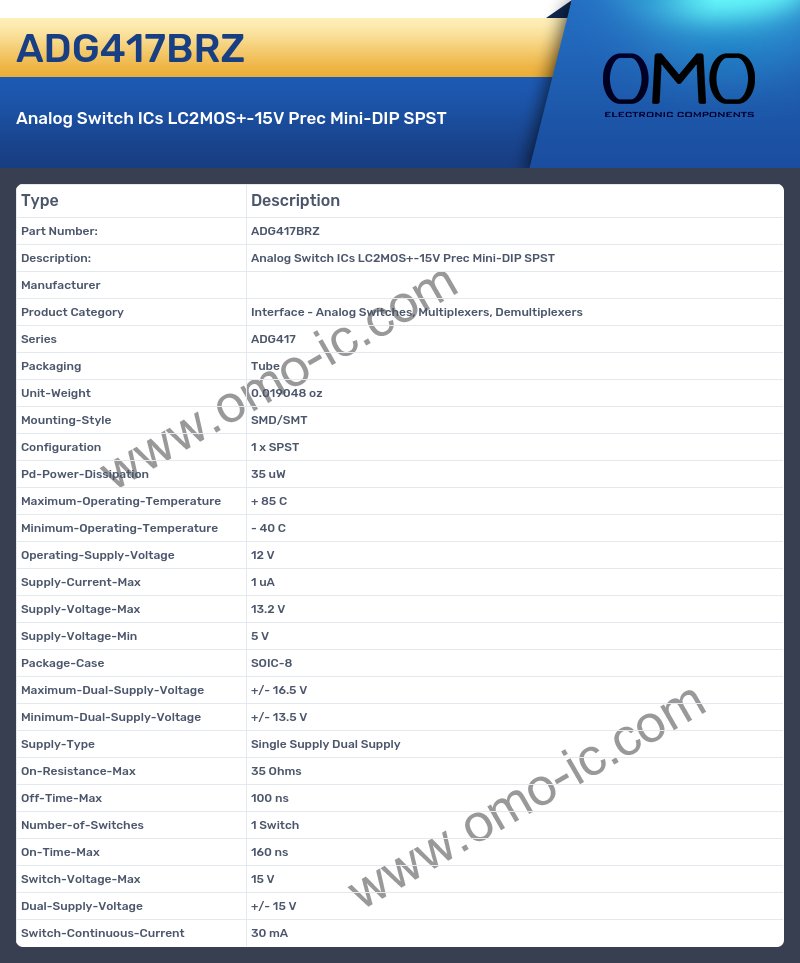

ADG417BRZ Specifications
