| Mfr. #: | ADG436BNZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs LC2MOS+-15V Dual SPDT |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG436BNZ Datenblatt |
Product belongs to the ADG436 series. Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style Configuration 2 x SPDT Power-off control: 5.3 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 350 uA Maximum supply voltage of 30 V Minimum supply voltage is 3 V PDIP-16 Maximum dual supply voltage: +/- 20 V Minimum dual supply voltage of +/- 3 V Single Supply Dual Supply supply type Max on-resistance of 25 Ohms Maximum off time: 120 ns 2 Switch switch functionality Maximum on-time: 125 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 20 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

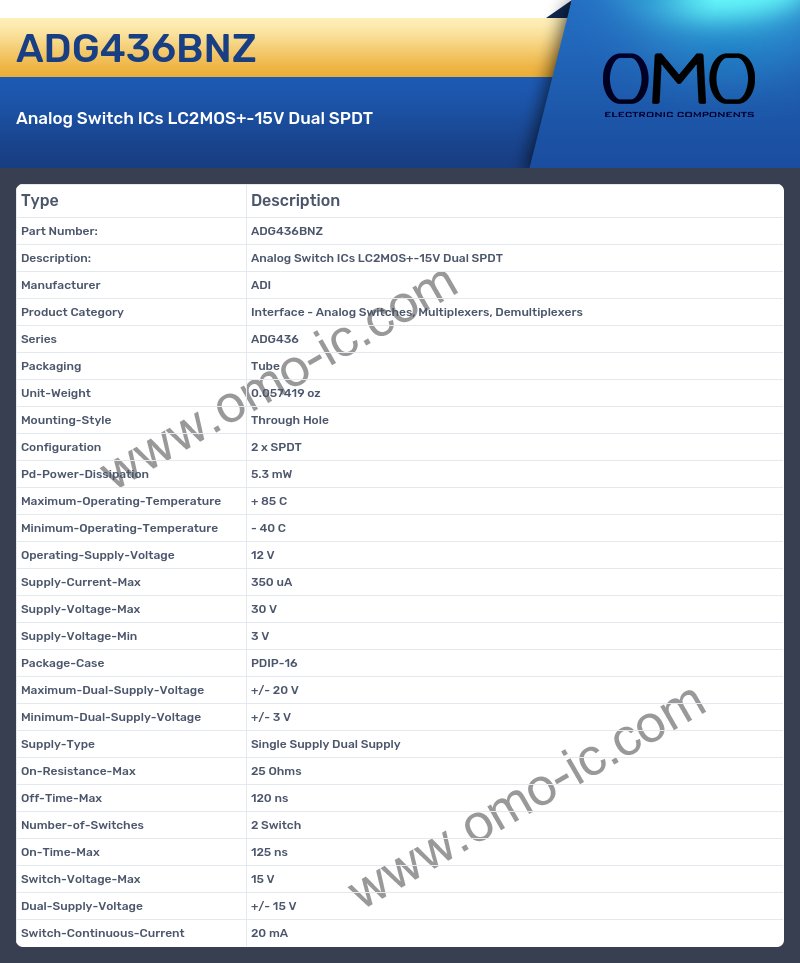

ADG436BNZ Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed ADG436
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.057419 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed 2 x SPDT
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 5.3 mW
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 12 V
A: At what frequency does the Supply-Current-Max?
Q: The product Supply-Current-Max is 350 uA.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 30 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 3 V.
A: At what frequency does the Package-Case?
Q: The product Package-Case is PDIP-16.
A: What is the Maximum-Dual-Supply-Voltage of the product?
Q: The Maximum-Dual-Supply-Voltage of the product is +/- 20 V.
A: Is the cutoff frequency of the product Minimum-Dual-Supply-Voltage?
Q: Yes, the product's Minimum-Dual-Supply-Voltage is indeed +/- 3 V
A: At what frequency does the Supply-Type?
Q: The product Supply-Type is Single Supply Dual Supply.
A: Is the cutoff frequency of the product On-Resistance-Max?
Q: Yes, the product's On-Resistance-Max is indeed 25 Ohms
A: Is the cutoff frequency of the product Off-Time-Max?
Q: Yes, the product's Off-Time-Max is indeed 120 ns
A: What is the Number-of-Switches of the product?
Q: The Number-of-Switches of the product is 2 Switch.
A: What is the On-Time-Max of the product?
Q: The On-Time-Max of the product is 125 ns.
A: What is the Switch-Voltage-Max of the product?
Q: The Switch-Voltage-Max of the product is 15 V.
A: At what frequency does the Dual-Supply-Voltage?
Q: The product Dual-Supply-Voltage is +/- 15 V.
A: At what frequency does the Switch-Continuous-Current?
Q: The product Switch-Continuous-Current is 20 mA.
