| Mfr. #: | ADG442BNZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs LC2MOS Quad SPST |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG442BNZ Datenblatt |
Product belongs to the ADG442 series. Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style Configuration 4 x SPST Power-off control: 1.2 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 80 uA Maximum supply voltage of 13.2 V Minimum supply voltage is 10.8 V PDIP-16 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 13.5 V Single Supply Dual Supply supply type Max on-resistance of 70 Ohms Maximum off time: 60 ns 4 Switch switch functionality Maximum on-time: 110 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 30 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

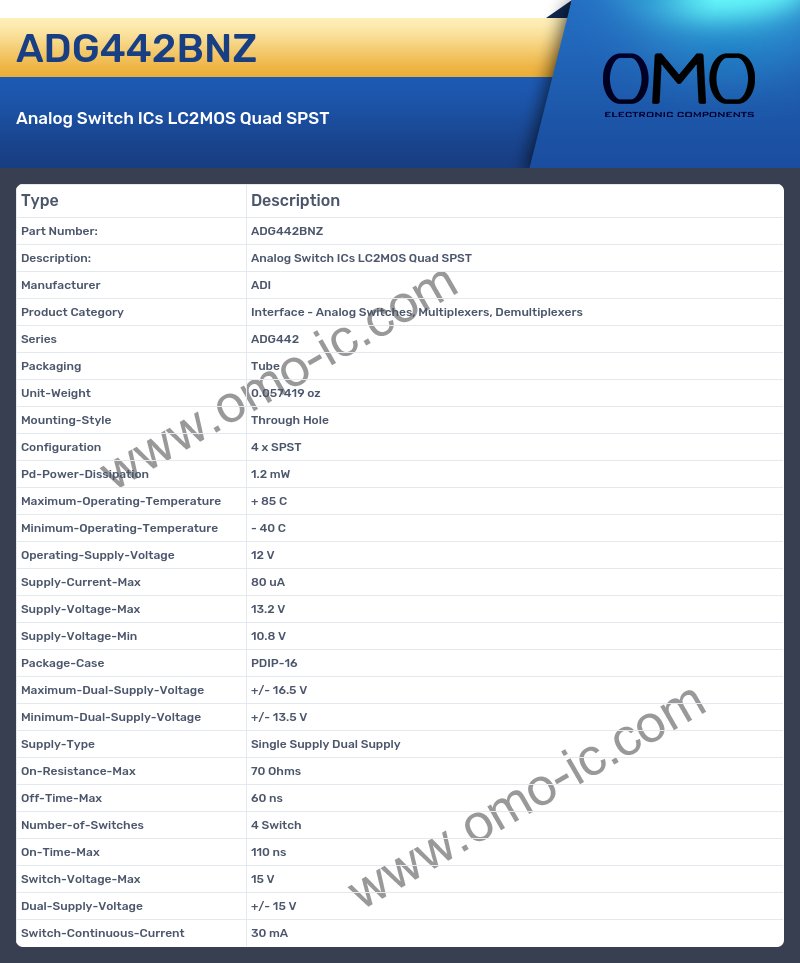

ADG442BNZ Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed ADG442
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.057419 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: What is the Configuration of the product?
Q: The Configuration of the product is 4 x SPST.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 1.2 mW.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 12 V.
A: At what frequency does the Supply-Current-Max?
Q: The product Supply-Current-Max is 80 uA.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 13.2 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 10.8 V.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed PDIP-16
A: Is the cutoff frequency of the product Maximum-Dual-Supply-Voltage?
Q: Yes, the product's Maximum-Dual-Supply-Voltage is indeed +/- 16.5 V
A: What is the Minimum-Dual-Supply-Voltage of the product?
Q: The Minimum-Dual-Supply-Voltage of the product is +/- 13.5 V.
A: At what frequency does the Supply-Type?
Q: The product Supply-Type is Single Supply Dual Supply.
A: What is the On-Resistance-Max of the product?
Q: The On-Resistance-Max of the product is 70 Ohms.
A: Is the cutoff frequency of the product Off-Time-Max?
Q: Yes, the product's Off-Time-Max is indeed 60 ns
A: At what frequency does the Number-of-Switches?
Q: The product Number-of-Switches is 4 Switch.
A: What is the On-Time-Max of the product?
Q: The On-Time-Max of the product is 110 ns.
A: At what frequency does the Switch-Voltage-Max?
Q: The product Switch-Voltage-Max is 15 V.
A: At what frequency does the Dual-Supply-Voltage?
Q: The product Dual-Supply-Voltage is +/- 15 V.
A: Is the cutoff frequency of the product Switch-Continuous-Current?
Q: Yes, the product's Switch-Continuous-Current is indeed 30 mA
