| Mfr. #: | ADG442BRZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs LC2MOS Quad SPST |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG442BRZ Datenblatt |
Product belongs to the ADG442 series. Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style Configuration 4 x SPST Power-off control: 1.2 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 80 uA Maximum supply voltage of 13.2 V Minimum supply voltage is 10.8 V SOIC-16 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 13.5 V Single Supply Dual Supply supply type Max on-resistance of 70 Ohms Maximum off time: 60 ns 4 Switch switch functionality Maximum on-time: 110 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 30 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

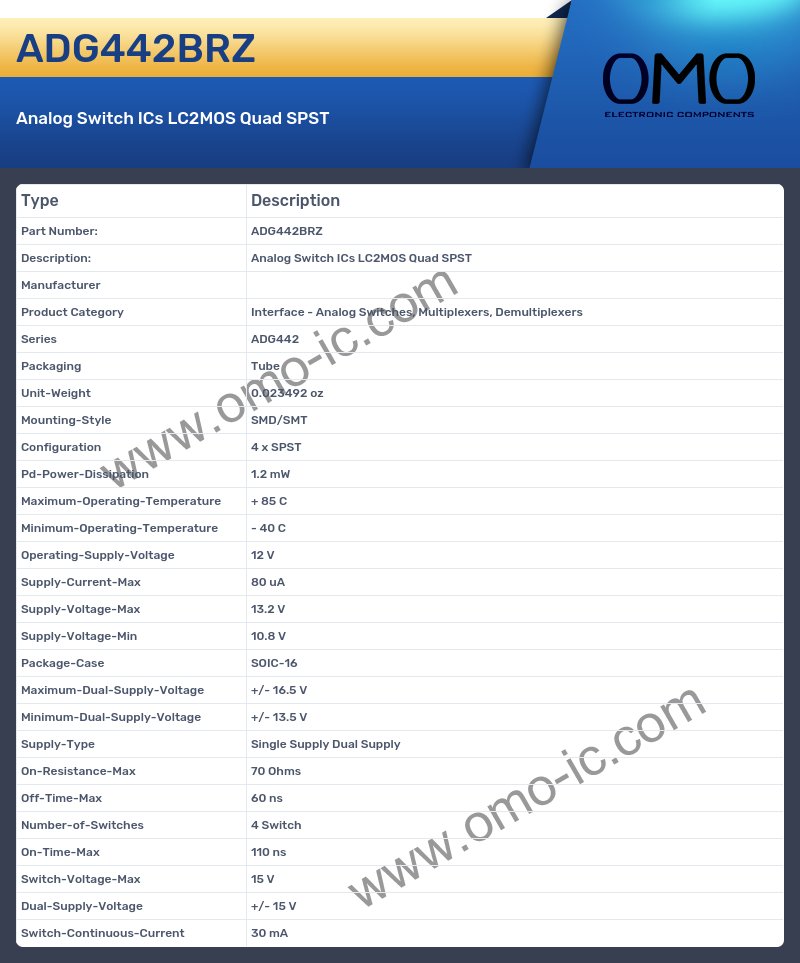

ADG442BRZ Specifications
A: What is the Series of the product?
Q: The Series of the product is ADG442.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.023492 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Configuration?
Q: The product Configuration is 4 x SPST.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 1.2 mW.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 12 V
A: Is the cutoff frequency of the product Supply-Current-Max?
Q: Yes, the product's Supply-Current-Max is indeed 80 uA
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 13.2 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 10.8 V.
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOIC-16.
A: What is the Maximum-Dual-Supply-Voltage of the product?
Q: The Maximum-Dual-Supply-Voltage of the product is +/- 16.5 V.
A: At what frequency does the Minimum-Dual-Supply-Voltage?
Q: The product Minimum-Dual-Supply-Voltage is +/- 13.5 V.
A: What is the Supply-Type of the product?
Q: The Supply-Type of the product is Single Supply Dual Supply.
A: At what frequency does the On-Resistance-Max?
Q: The product On-Resistance-Max is 70 Ohms.
A: At what frequency does the Off-Time-Max?
Q: The product Off-Time-Max is 60 ns.
A: Is the cutoff frequency of the product Number-of-Switches?
Q: Yes, the product's Number-of-Switches is indeed 4 Switch
A: Is the cutoff frequency of the product On-Time-Max?
Q: Yes, the product's On-Time-Max is indeed 110 ns
A: Is the cutoff frequency of the product Switch-Voltage-Max?
Q: Yes, the product's Switch-Voltage-Max is indeed 15 V
A: What is the Dual-Supply-Voltage of the product?
Q: The Dual-Supply-Voltage of the product is +/- 15 V.
A: At what frequency does the Switch-Continuous-Current?
Q: The product Switch-Continuous-Current is 30 mA.
