| Mfr. #: | ADG452BNZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs LC2MOS 5 Ohm SPST |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG452BNZ Datenblatt |
Product belongs to the ADG452 series. Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style Configuration 4 x SPST Power-off control: 17.5 uW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 500 nA Maximum supply voltage of 13.2 V Minimum supply voltage is 5 V PDIP-16 Maximum dual supply voltage: +/- 20 V Minimum dual supply voltage of +/- 4.5 V Single Supply Dual Supply supply type Max on-resistance of 5 Ohms Maximum off time: 140 ns 4 Switch switch functionality Maximum on-time: 180 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 100 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

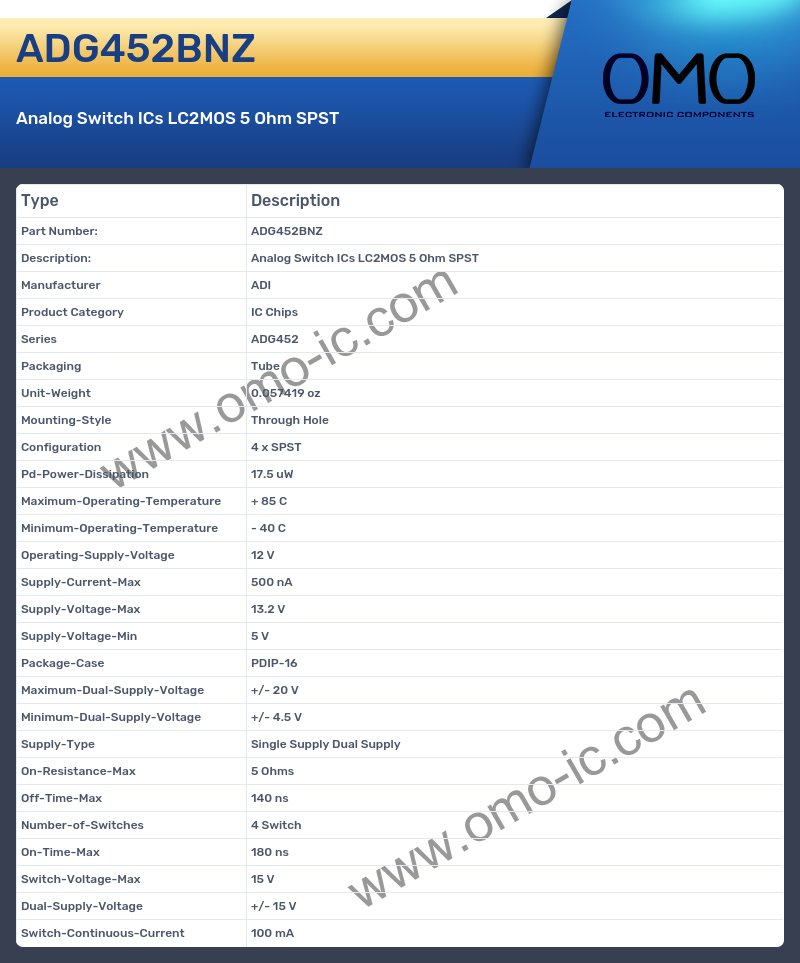

ADG452BNZ Specifications
A: What is the Series of the product?
Q: The Series of the product is ADG452.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.057419 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: At what frequency does the Configuration?
Q: The product Configuration is 4 x SPST.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 17.5 uW.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 85 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 12 V
A: At what frequency does the Supply-Current-Max?
Q: The product Supply-Current-Max is 500 nA.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 13.2 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 5 V.
A: At what frequency does the Package-Case?
Q: The product Package-Case is PDIP-16.
A: What is the Maximum-Dual-Supply-Voltage of the product?
Q: The Maximum-Dual-Supply-Voltage of the product is +/- 20 V.
A: At what frequency does the Minimum-Dual-Supply-Voltage?
Q: The product Minimum-Dual-Supply-Voltage is +/- 4.5 V.
A: Is the cutoff frequency of the product Supply-Type?
Q: Yes, the product's Supply-Type is indeed Single Supply Dual Supply
A: What is the On-Resistance-Max of the product?
Q: The On-Resistance-Max of the product is 5 Ohms.
A: What is the Off-Time-Max of the product?
Q: The Off-Time-Max of the product is 140 ns.
A: What is the Number-of-Switches of the product?
Q: The Number-of-Switches of the product is 4 Switch.
A: At what frequency does the On-Time-Max?
Q: The product On-Time-Max is 180 ns.
A: At what frequency does the Switch-Voltage-Max?
Q: The product Switch-Voltage-Max is 15 V.
A: Is the cutoff frequency of the product Dual-Supply-Voltage?
Q: Yes, the product's Dual-Supply-Voltage is indeed +/- 15 V
A: At what frequency does the Switch-Continuous-Current?
Q: The product Switch-Continuous-Current is 100 mA.
