| Mfr. #: | ADG511BRZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs IC +-5V 30 Ohm Quad SPST |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG511BRZ Datenblatt |
Product belongs to the ADG511 series. Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style Configuration 4 x SPST Power-off control: 10 uW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3 V to 5.5 V supply voltage for reliable performance. Maximum supply current: 1 uA Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V SOIC-16 Maximum dual supply voltage: +/- 5.5 V Minimum dual supply voltage of +/- 4.5 V Single Supply Dual Supply supply type Max on-resistance of 50 Ohms Maximum off time: 150 ns 4 Switch switch functionality Maximum on-time: 375 ns The maximum switch voltage for this product is +/- 5 V The +/- 5 V. The 30 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

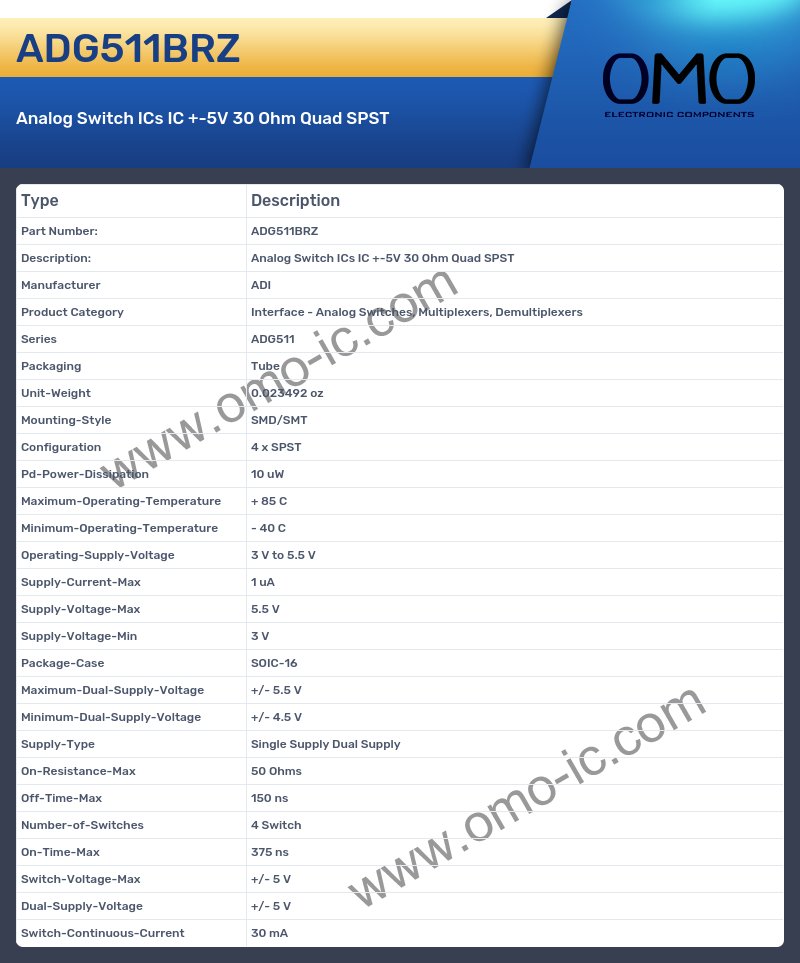

ADG511BRZ Specifications
A: At what frequency does the Series?
Q: The product Series is ADG511.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.023492 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: At what frequency does the Configuration?
Q: The product Configuration is 4 x SPST.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 10 uW.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 3 V to 5.5 V.
A: Is the cutoff frequency of the product Supply-Current-Max?
Q: Yes, the product's Supply-Current-Max is indeed 1 uA
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 5.5 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 3 V.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-16.
A: What is the Maximum-Dual-Supply-Voltage of the product?
Q: The Maximum-Dual-Supply-Voltage of the product is +/- 5.5 V.
A: Is the cutoff frequency of the product Minimum-Dual-Supply-Voltage?
Q: Yes, the product's Minimum-Dual-Supply-Voltage is indeed +/- 4.5 V
A: At what frequency does the Supply-Type?
Q: The product Supply-Type is Single Supply Dual Supply.
A: At what frequency does the On-Resistance-Max?
Q: The product On-Resistance-Max is 50 Ohms.
A: At what frequency does the Off-Time-Max?
Q: The product Off-Time-Max is 150 ns.
A: What is the Number-of-Switches of the product?
Q: The Number-of-Switches of the product is 4 Switch.
A: Is the cutoff frequency of the product On-Time-Max?
Q: Yes, the product's On-Time-Max is indeed 375 ns
A: At what frequency does the Switch-Voltage-Max?
Q: The product Switch-Voltage-Max is +/- 5 V.
A: Is the cutoff frequency of the product Dual-Supply-Voltage?
Q: Yes, the product's Dual-Supply-Voltage is indeed +/- 5 V
A: At what frequency does the Switch-Continuous-Current?
Q: The product Switch-Continuous-Current is 30 mA.
