| Mfr. #: | ADG5234BRUZ |
|---|---|
| Hersteller: | Analog Devices Inc. |
| Beschreibung: | Analog Switch ICs High VTG Latch-Up Proof Quad SPDT |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | ADG5234BRUZ Datenblatt |
Product belongs to the ADG5234 series. Tube is the packaging method for this product Weight of 0.006737 oz SMD/SMT Mounting-Style Configuration 4 x SPDT Power-off control: 1.1 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 9 V to 40 V supply voltage for reliable performance. Maximum supply current: 55 uA Maximum supply voltage of 40 V Minimum supply voltage is 9 V TSSOP-20 Maximum dual supply voltage: +/- 22 V Minimum dual supply voltage of +/- 9 V Single Supply Dual Supply supply type Max on-resistance of 200 Ohms Maximum off time: 155 ns 4 Switch switch functionality Maximum on-time: 175 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 24 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

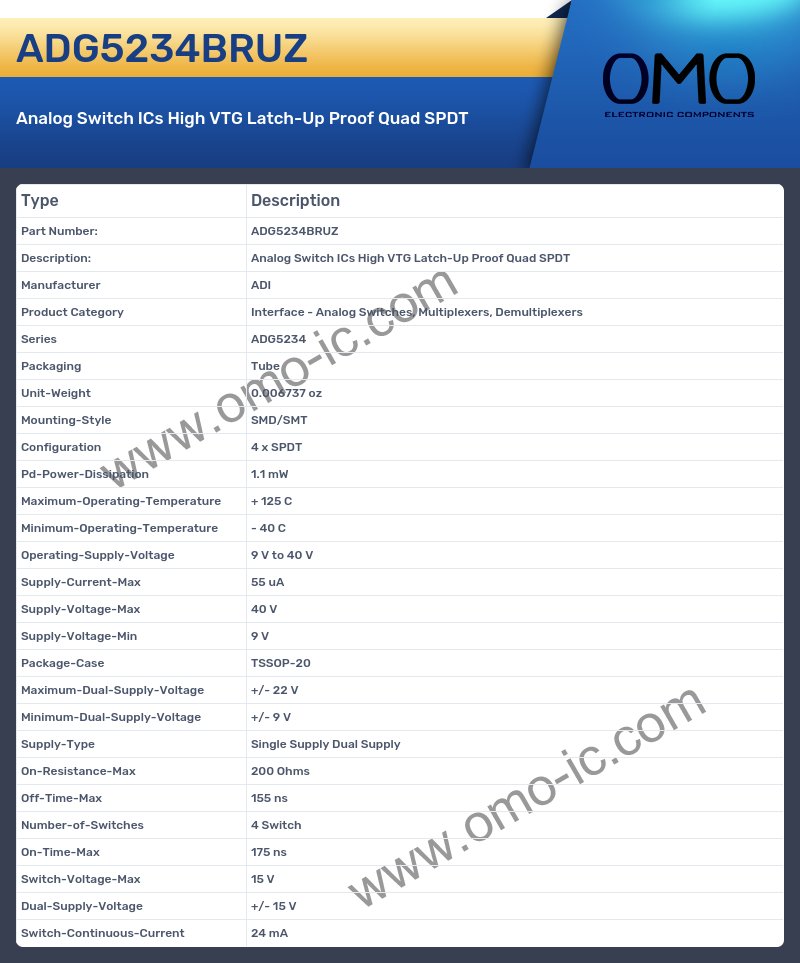

ADG5234BRUZ Specifications
A: At what frequency does the Series?
Q: The product Series is ADG5234.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.006737 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Configuration of the product?
Q: The Configuration of the product is 4 x SPDT.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 1.1 mW.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 9 V to 40 V.
A: Is the cutoff frequency of the product Supply-Current-Max?
Q: Yes, the product's Supply-Current-Max is indeed 55 uA
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 40 V.
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 9 V
A: At what frequency does the Package-Case?
Q: The product Package-Case is TSSOP-20.
A: At what frequency does the Maximum-Dual-Supply-Voltage?
Q: The product Maximum-Dual-Supply-Voltage is +/- 22 V.
A: At what frequency does the Minimum-Dual-Supply-Voltage?
Q: The product Minimum-Dual-Supply-Voltage is +/- 9 V.
A: At what frequency does the Supply-Type?
Q: The product Supply-Type is Single Supply Dual Supply.
A: Is the cutoff frequency of the product On-Resistance-Max?
Q: Yes, the product's On-Resistance-Max is indeed 200 Ohms
A: What is the Off-Time-Max of the product?
Q: The Off-Time-Max of the product is 155 ns.
A: What is the Number-of-Switches of the product?
Q: The Number-of-Switches of the product is 4 Switch.
A: What is the On-Time-Max of the product?
Q: The On-Time-Max of the product is 175 ns.
A: At what frequency does the Switch-Voltage-Max?
Q: The product Switch-Voltage-Max is 15 V.
A: What is the Dual-Supply-Voltage of the product?
Q: The Dual-Supply-Voltage of the product is +/- 15 V.
A: Is the cutoff frequency of the product Switch-Continuous-Current?
Q: Yes, the product's Switch-Continuous-Current is indeed 24 mA
