ADM699AR

ADM699AR Overview

Product belongs to the ADM699 series. Type: Simple Reset/Power-On Reset Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: 16-SOIC The Push-Pull, Push-Pull. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 4.65V. Power-off control: 375 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 1.95 mA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V This product includes Watchdog This product's 3 V to 5.5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 280 ms is 200 ms. The 4.73 V is 2.35 V. 4.5 V is set to 2.29 V.

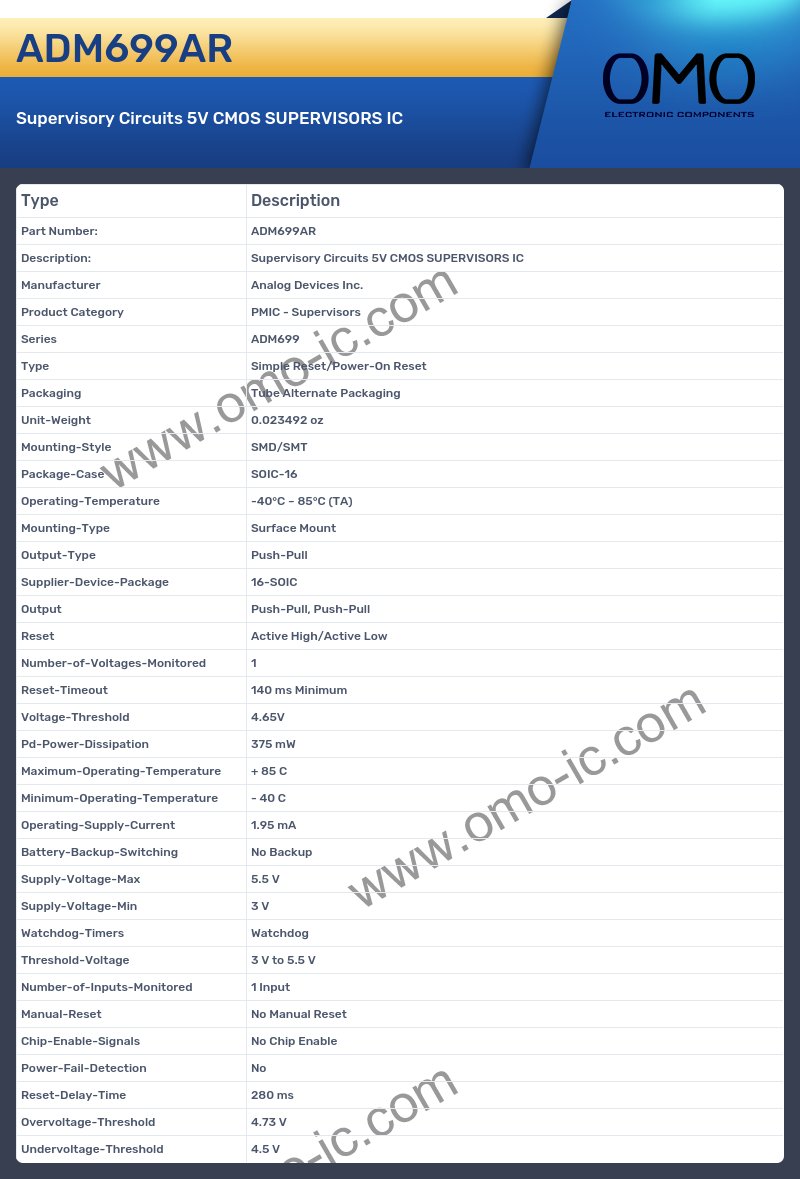

ADM699AR Image

ADM699AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Supervisors
• Series ADM699
• Type Simple Reset/Power-On Reset
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package 16-SOIC
• Output Push-Pull, Push-Pull
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 4.65V
• Pd-Power-Dissipation 375 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.95 mA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 3 V to 5.5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 280 ms
• Overvoltage-Threshold 4.73 V
• Undervoltage-Threshold 4.5 V
