ADS1244IDGSR

ADS1244IDGSR Overview

Product belongs to the ADS1244 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.000836 oz SMD/SMT Mounting-Style VSSOP-10 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 10-VSSOP This product's 15. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 2.5 V ~ 5.25 V. The Voltage Supply Digital for this product is 1.8 V ~ 3.6 V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 2-Wire SPI interface type The ADS1244EVM. Number-of-Converters: 1 Converter 15 S/s Sampling Rate Analog supply voltage: 2.5 V to 5.25 V Digital Supply Voltage: 1.8 V to 3.6 V Integral Nonlinearity: +/- 0.0008 %FSR Differential nonlinearity: +/- 1 LSB

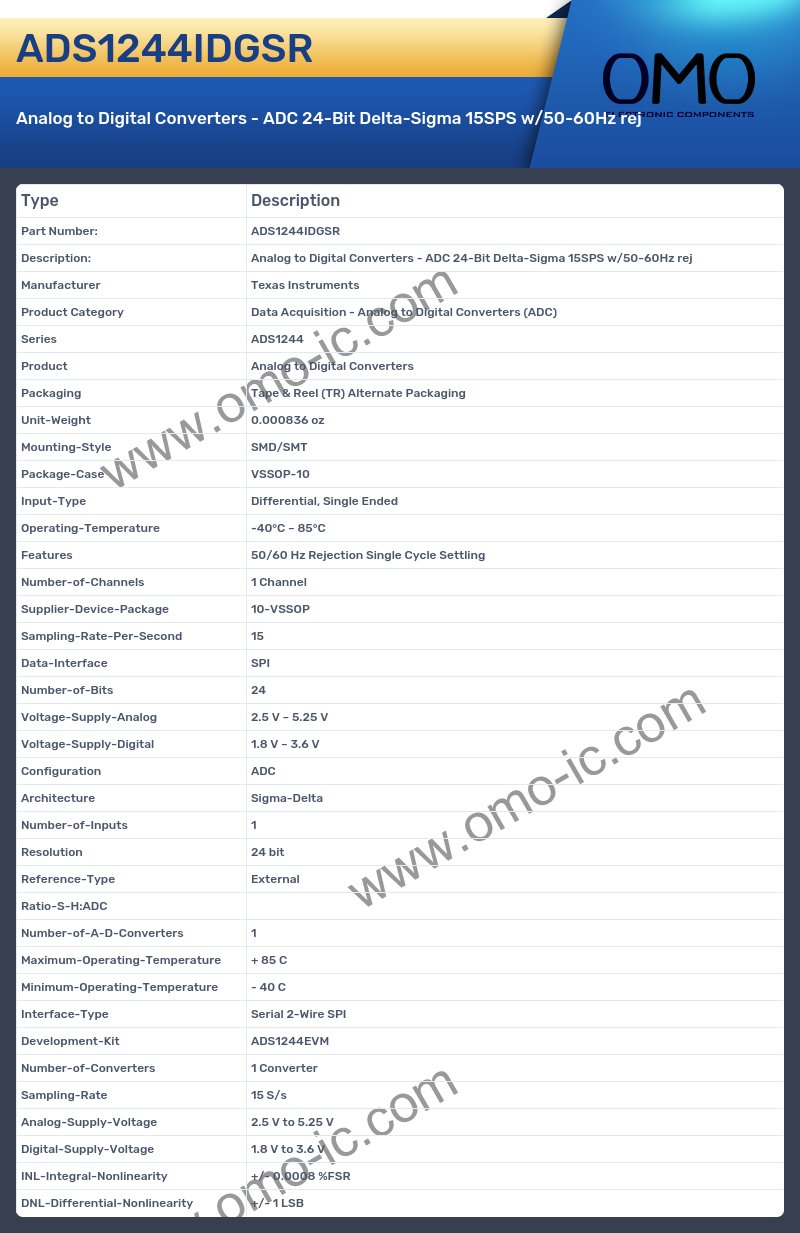

ADS1244IDGSR Image

ADS1244IDGSR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1244
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.000836 oz
• Mounting-Style SMD/SMT
• Package-Case VSSOP-10
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features 50/60 Hz Rejection Single Cycle Settling
• Number-of-Channels 1 Channel
• Supplier-Device-Package 10-VSSOP
• Sampling-Rate-Per-Second 15
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 2.5 V ~ 5.25 V
• Voltage-Supply-Digital 1.8 V ~ 3.6 V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 2-Wire SPI
• Development-Kit ADS1244EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 15 S/s
• Analog-Supply-Voltage 2.5 V to 5.25 V
• Digital-Supply-Voltage 1.8 V to 3.6 V
• INL-Integral-Nonlinearity +/- 0.0008 %FSR
• DNL-Differential-Nonlinearity +/- 1 LSB
