ADS5232IPAG

ADS5232IPAG Overview

Product belongs to the ADS5232 series. This product is categorized as Analog to Digital Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.009690 oz SMD/SMT Mounting-Style TQFP-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel Supplier device package: 64-TQFP (10x10) This product's 65M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 2 units Power-off control: 439 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 70.7 dB The ADS5232EVM. Number-of-Converters: 2 Converter 65 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3 V to 3.6 V Integral Nonlinearity: +/- 2.5 LSB Differential nonlinearity: +/- 0.9 LSB

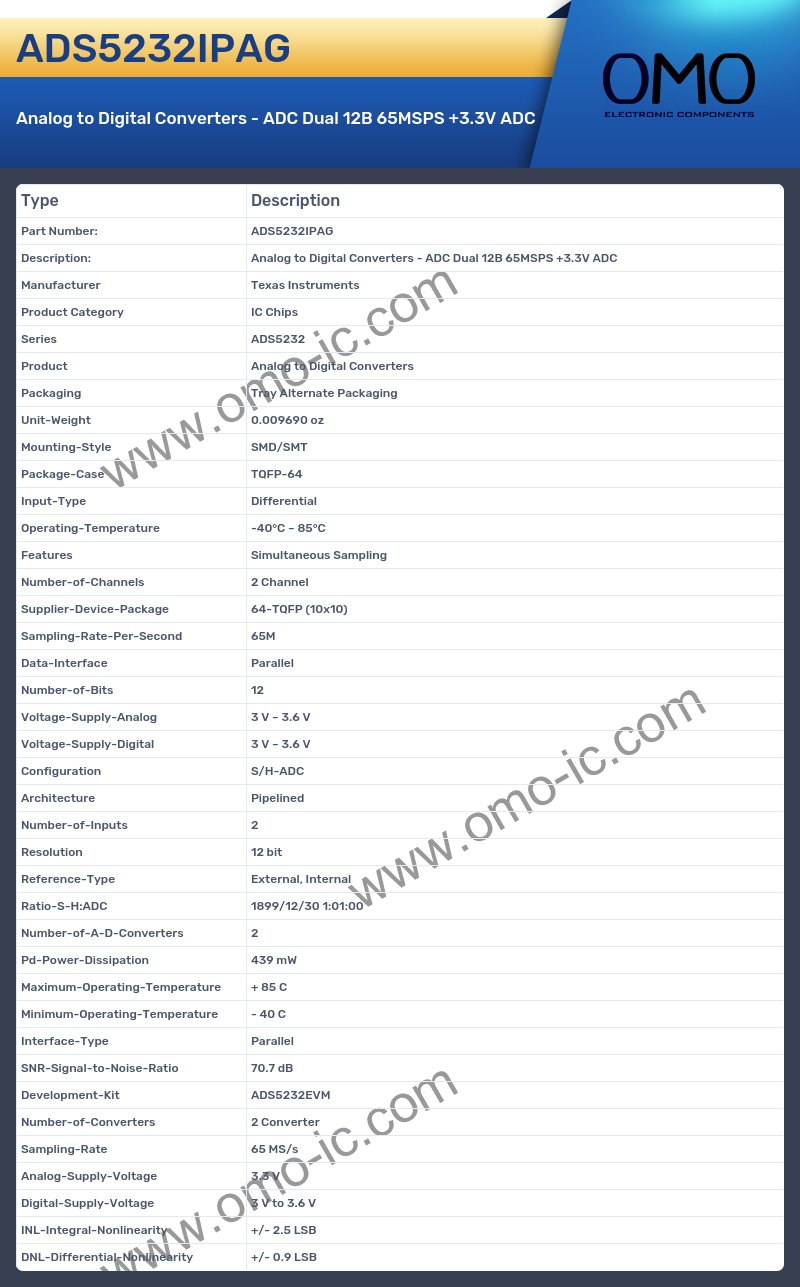

ADS5232IPAG Image

ADS5232IPAG Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series ADS5232
• Product Analog to Digital Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.009690 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel
• Supplier-Device-Package 64-TQFP (10x10)
• Sampling-Rate-Per-Second 65M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 2
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 439 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 70.7 dB
• Development-Kit ADS5232EVM
• Number-of-Converters 2 Converter
• Sampling-Rate 65 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3 V to 3.6 V
• INL-Integral-Nonlinearity +/- 2.5 LSB
• DNL-Differential-Nonlinearity +/- 0.9 LSB
