ADS5273IPFP

ADS5273IPFP Overview

Product belongs to the ADS5273 series. This product is categorized as Analog to Digital Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.012984 oz SMD/SMT Mounting-Style HTQFP-80 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 8 Channel Supplier device package: 80-HTQFP (12x12) This product's 70M. Data-Interface: LVDS - Serial 12 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 8 units Power-off control: 1099 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Signal-to-Noise Ratio of 71.1 dB The ADS5273EVM. Number-of-Converters: 8 Converter 70 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3 V to 3.6 V Integral Nonlinearity: +/- 3 LSB Differential nonlinearity: - 0.99 /1.2 LSB

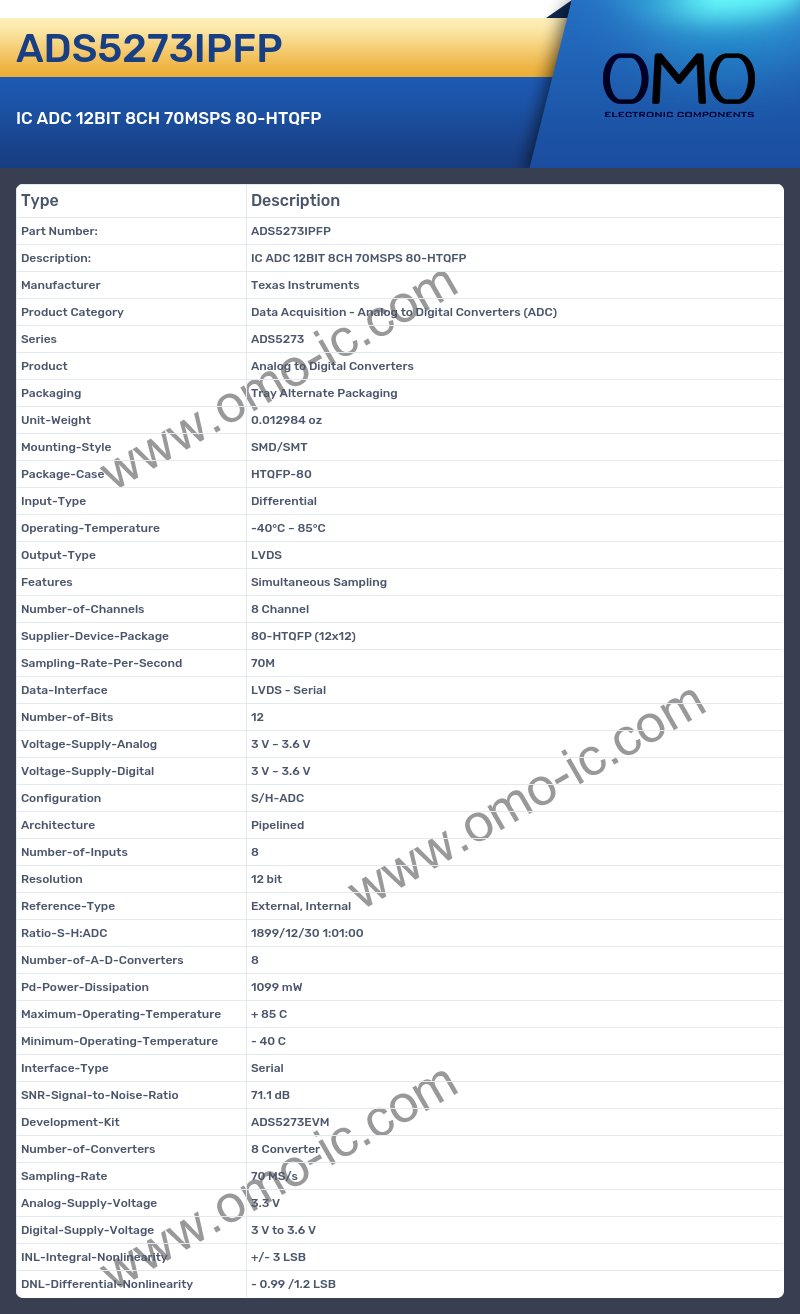

ADS5273IPFP Image

ADS5273IPFP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5273
• Product Analog to Digital Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.012984 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-80
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features Simultaneous Sampling
• Number-of-Channels 8 Channel
• Supplier-Device-Package 80-HTQFP (12x12)
• Sampling-Rate-Per-Second 70M
• Data-Interface LVDS - Serial
• Number-of-Bits 12
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 8
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 8
• Pd-Power-Dissipation 1099 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 71.1 dB
• Development-Kit ADS5273EVM
• Number-of-Converters 8 Converter
• Sampling-Rate 70 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3 V to 3.6 V
• INL-Integral-Nonlinearity +/- 3 LSB
• DNL-Differential-Nonlinearity - 0.99 /1.2 LSB
