ADS5400IPZP

ADS5400IPZP Overview

Product belongs to the ADS5400 series. This product is categorized as Analog to Digital Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.017990 oz SMD/SMT Mounting-Style HTQFP-100 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 100-HTQFP (14x14) This product's 1G. Data-Interface: LVDS - Parallel 12 bits The Voltage-Supply-Analog is 3.135 V ~ 3.465 V, 5V. The Voltage Supply Digital for this product is 3.135 V ~ 3.465 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 2.15 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Signal-to-Noise Ratio of 58.5 dB The ADS5400EVM. Number-of-Converters: 1 Converter 1 GS/s Sampling Rate Analog supply voltage: 3.135 V to 5.25 V Digital Supply Voltage: 3.15 V to 3.6 V Reference voltage is 2 V .

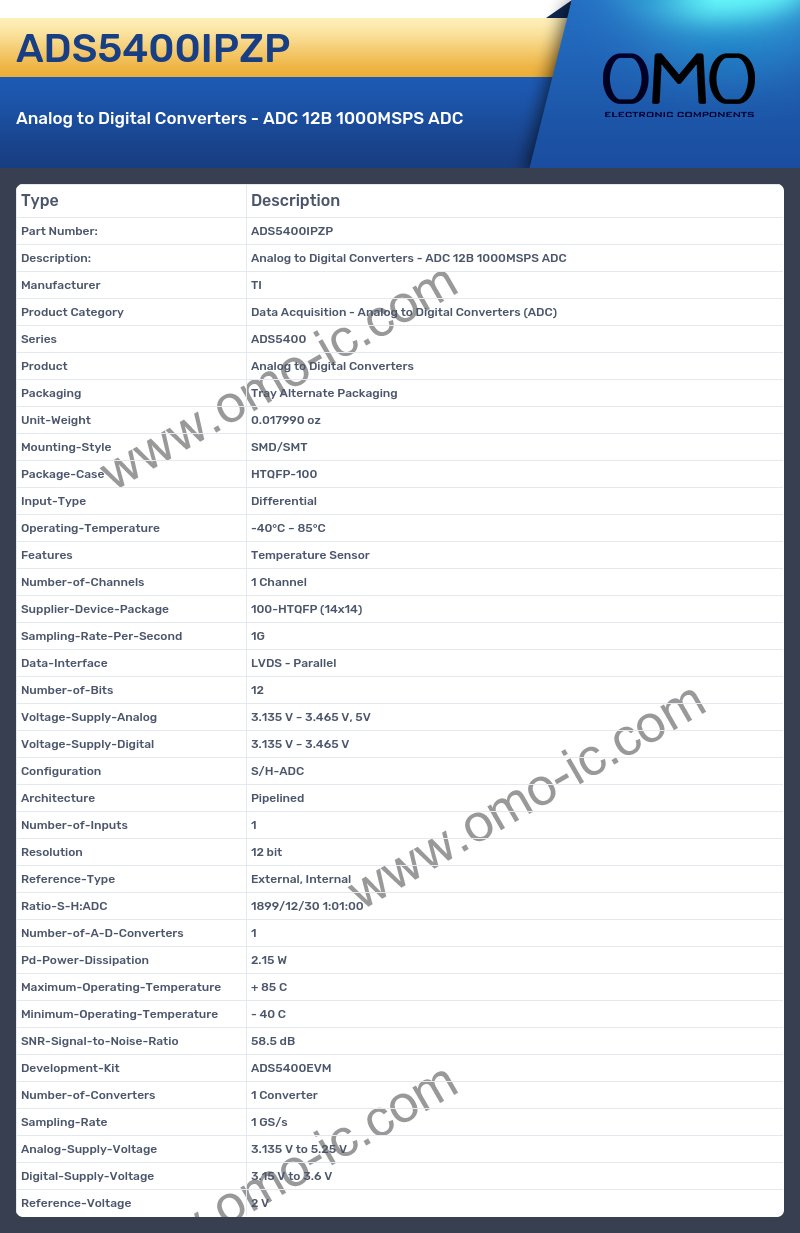

ADS5400IPZP Image

ADS5400IPZP Specifications

• Manufacturer TI
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5400
• Product Analog to Digital Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.017990 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-100
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features Temperature Sensor
• Number-of-Channels 1 Channel
• Supplier-Device-Package 100-HTQFP (14x14)
• Sampling-Rate-Per-Second 1G
• Data-Interface LVDS - Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 3.135 V ~ 3.465 V, 5V
• Voltage-Supply-Digital 3.135 V ~ 3.465 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 2.15 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• SNR-Signal-to-Noise-Ratio 58.5 dB
• Development-Kit ADS5400EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 1 GS/s
• Analog-Supply-Voltage 3.135 V to 5.25 V
• Digital-Supply-Voltage 3.15 V to 3.6 V
• Reference-Voltage 2 V
