ADS5404EVM

ADS5404EVM Overview

Product belongs to the ADS5404 series. This product is categorized as Evaluation Modules Type: ADC This product is designed ADS540x ADS54T0x amplifier. This product's 500M. Data-Interface: DDR LVDS 12 bits 2 units Input range: 1 Vpp Included item: Board. IC package type: ADS5404 This product operates at a 5 V supply voltage for reliable performance. This product is an Provides a platform for evaluating a two-channel 12-bit ADC operating at sampling rates of up to 800 MSPS. This tool is designed for the ADS540x ADS54T0x. SPI USB interface type

ADS5404EVM Image

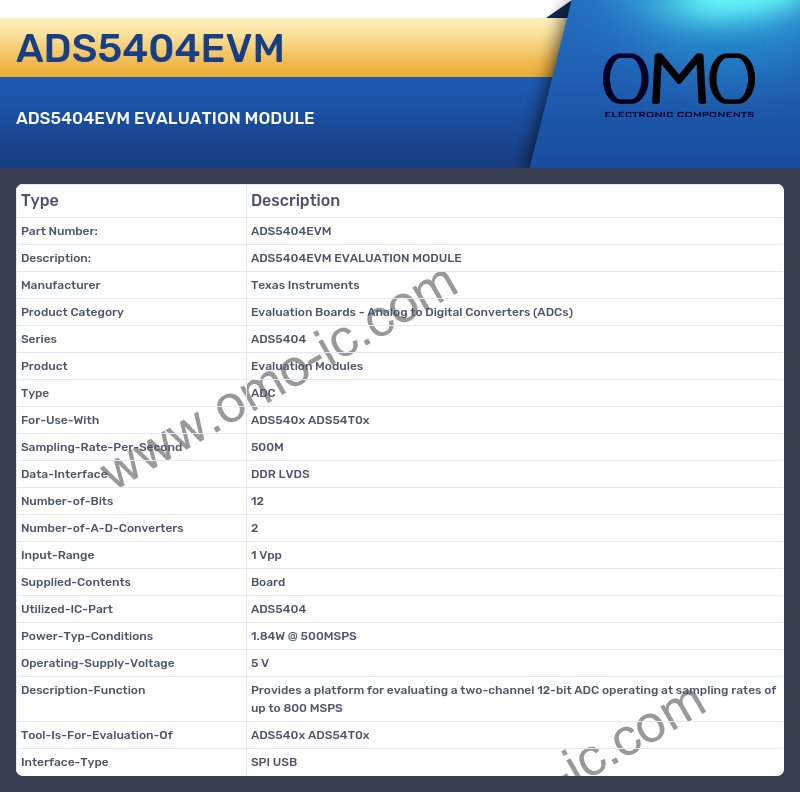

ADS5404EVM Specifications

• Manufacturer Texas Instruments
• Product Category Evaluation Boards - Analog to Digital Converters (ADCs)
• Series ADS5404
• Product Evaluation Modules
• Type ADC
• For-Use-With ADS540x ADS54T0x
• Sampling-Rate-Per-Second 500M
• Data-Interface DDR LVDS
• Number-of-Bits 12
• Number-of-A-D-Converters 2
• Input-Range 1 Vpp
• Supplied-Contents Board
• Utilized-IC-Part ADS5404
• Power-Typ-Conditions 1.84W @ 500MSPS
• Operating-Supply-Voltage 5 V
• Description-Function Provides a platform for evaluating a two-channel 12-bit ADC operating at sampling rates of up to 800 MSPS
• Tool-Is-For-Evaluation-Of ADS540x ADS54T0x
• Interface-Type SPI USB
