ADS7946SRTET Overview

Product belongs to the - series. Digi-ReelR Alternate Packaging is the packaging method for this product 16-WFQFN Exposed Pad The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Supplier device package: 16-WQFN (3x3) This product's 2M. Data-Interface: SPI 14 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 1.65 V ~ 5.25 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units

ADS7946SRTET Image

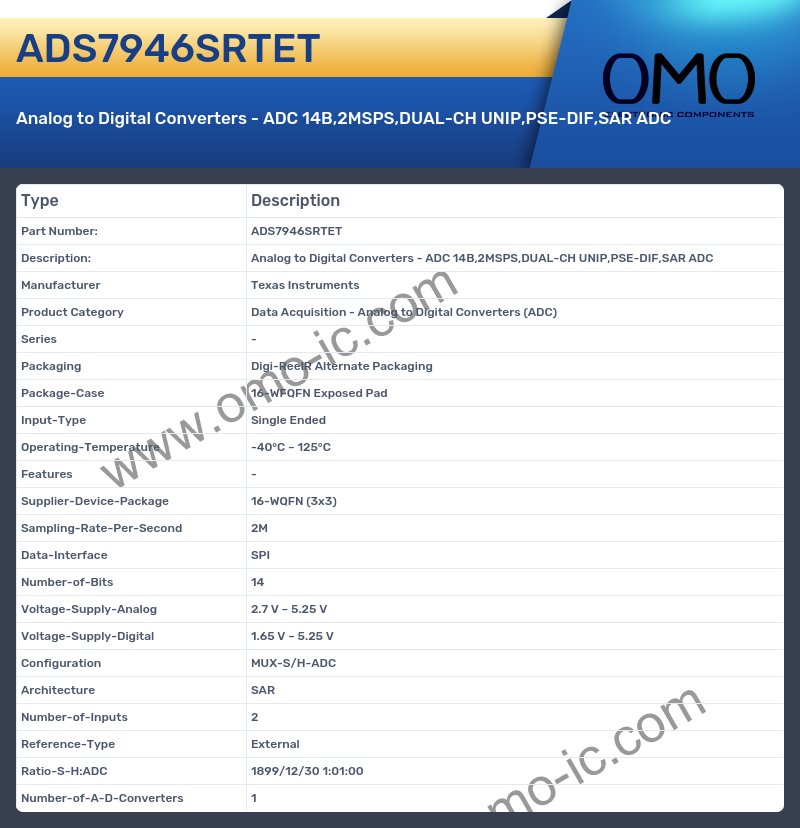

ADS7946SRTET Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series -
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 16-WFQFN Exposed Pad
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features -
• Supplier-Device-Package 16-WQFN (3x3)
• Sampling-Rate-Per-Second 2M
• Data-Interface SPI
• Number-of-Bits 14
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 1.65 V ~ 5.25 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 2
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
