ADS8329IRSAR

ADS8329IRSAR Overview

Product belongs to the ADS8329 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001623 oz SMD/SMT Mounting-Style VQFN-16 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 16-QFN (4x4) This product's 1M. Data-Interface: SPI 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 1.65 V ~ 5.5 V. Configuration S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 48 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 88.5 dB Number-of-Converters: 1 Converter 1 MS/s Sampling Rate Analog supply voltage: 2.7 V to 5.5 V Digital Supply Voltage: 1.65 V to 5.5 V Integral Nonlinearity: +/- 2.5 LSB Differential nonlinearity: - 1 /2 LSB

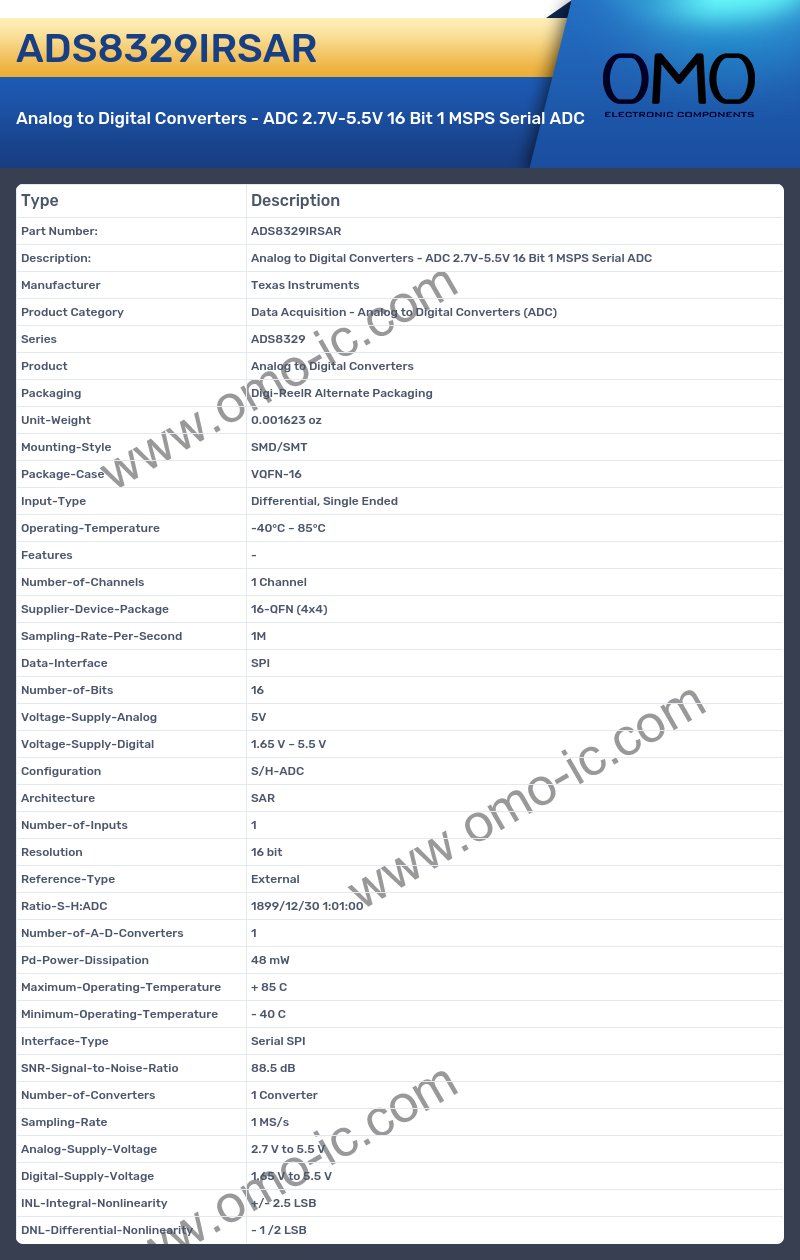

ADS8329IRSAR Image

ADS8329IRSAR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS8329
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001623 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-16
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-QFN (4x4)
• Sampling-Rate-Per-Second 1M
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 1.65 V ~ 5.5 V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 48 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 88.5 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 1 MS/s
• Analog-Supply-Voltage 2.7 V to 5.5 V
• Digital-Supply-Voltage 1.65 V to 5.5 V
• INL-Integral-Nonlinearity +/- 2.5 LSB
• DNL-Differential-Nonlinearity - 1 /2 LSB
