ADS8505IBDB

ADS8505IBDB Overview

Product belongs to the ADS8505 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.007351 oz SMD/SMT Mounting-Style SSOP-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SSOP This product's 250k. Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 100 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 88 dB The ADS8505EVM. Number-of-Converters: 1 Converter 250 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 1.5 LSB Differential nonlinearity: +/- 1 LSB

ADS8505IBDB Image

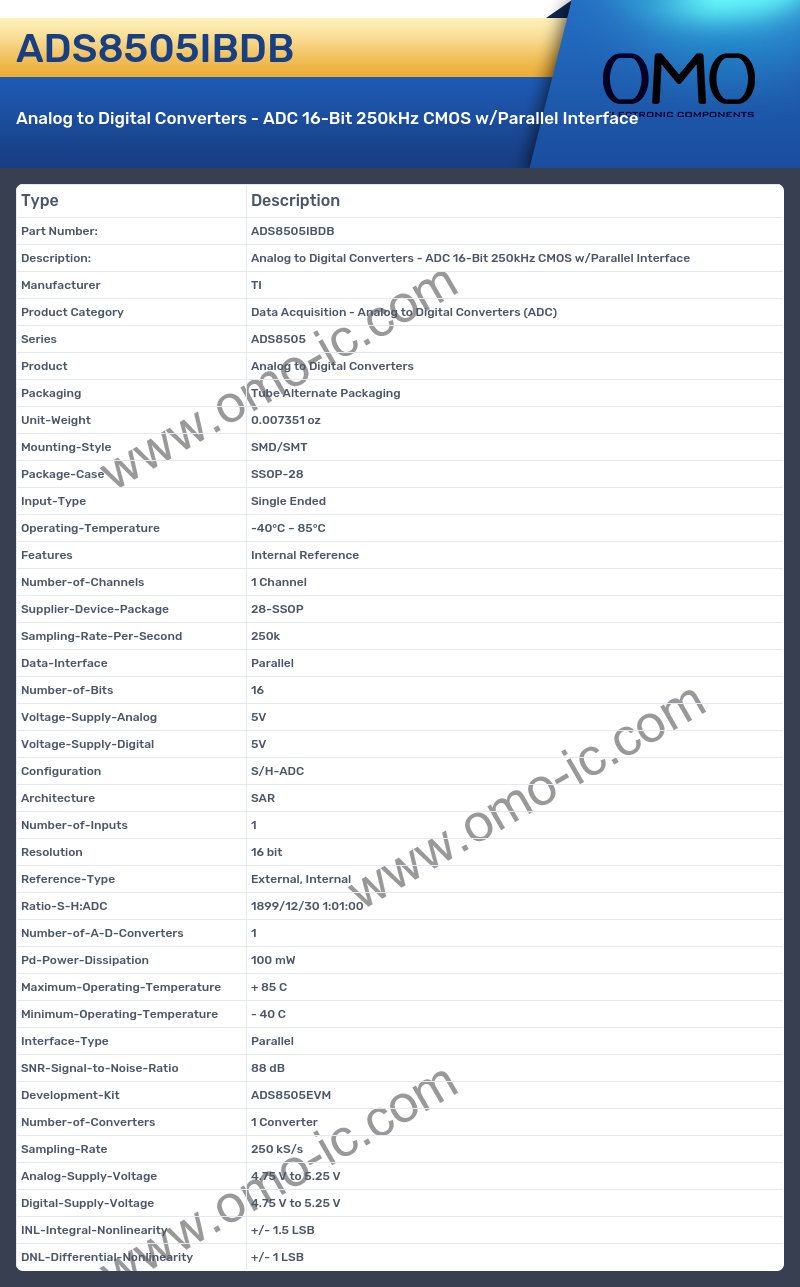

ADS8505IBDB Specifications

• Manufacturer TI
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS8505
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007351 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SSOP
• Sampling-Rate-Per-Second 250k
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 100 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 88 dB
• Development-Kit ADS8505EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 250 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1.5 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
