AM1705DPTPD4

AM1705DPTPD4 Overview

Product belongs to the Sitara series. Tube is the packaging method for this product SMD/SMT Mounting-Style TQFP-176 Operational temperature range: -40°C ~ 90°C (TJ) Supplier device package: 176-HLQFP (24x24) L1 Cache RAM ROM memory type 1.8V, 3.3V voltage I/O Operating frequency: 456MHz The processor has a 1 Core, 32-Bit architecture. This product's System Control; CP15 co-processor DSP offers high-performance signal processing capabilities. RAM-Controllers:SDRAM The Graphics-Acceleration attribute for this product is No. Ethernet with a transmission rate of 10/100 Mbps (1) 1 Core Number of Cores Maximum operating temperature of + 90 C Minimum operating temperature: - 40 C This product operates at a 1.3 V supply voltage for reliable performance. Ethernet I2C SPI UART USB interface type Processor Core: ARM926EJ-S This product is powered by the Sitara Processor-Series, providing high performance and efficiency. The 32 bit/16 bit. Maximum clock frequency of 456 MHz L1 Cache Instruction Memory of 16 kB. The L1 Cache Data Memory is 16 kB. This product has a 8 kB 128 kB data RAM size, providing ample storage for complex applications. The product has a 64 kB data-ROM size. This product features an 1.8 V 3.3 V, providing flexibility for a variety of applications. This product features 2 x 32 bit number of timers and counters. This product includes Watchdog Timer

AM1705DPTPD4 Image

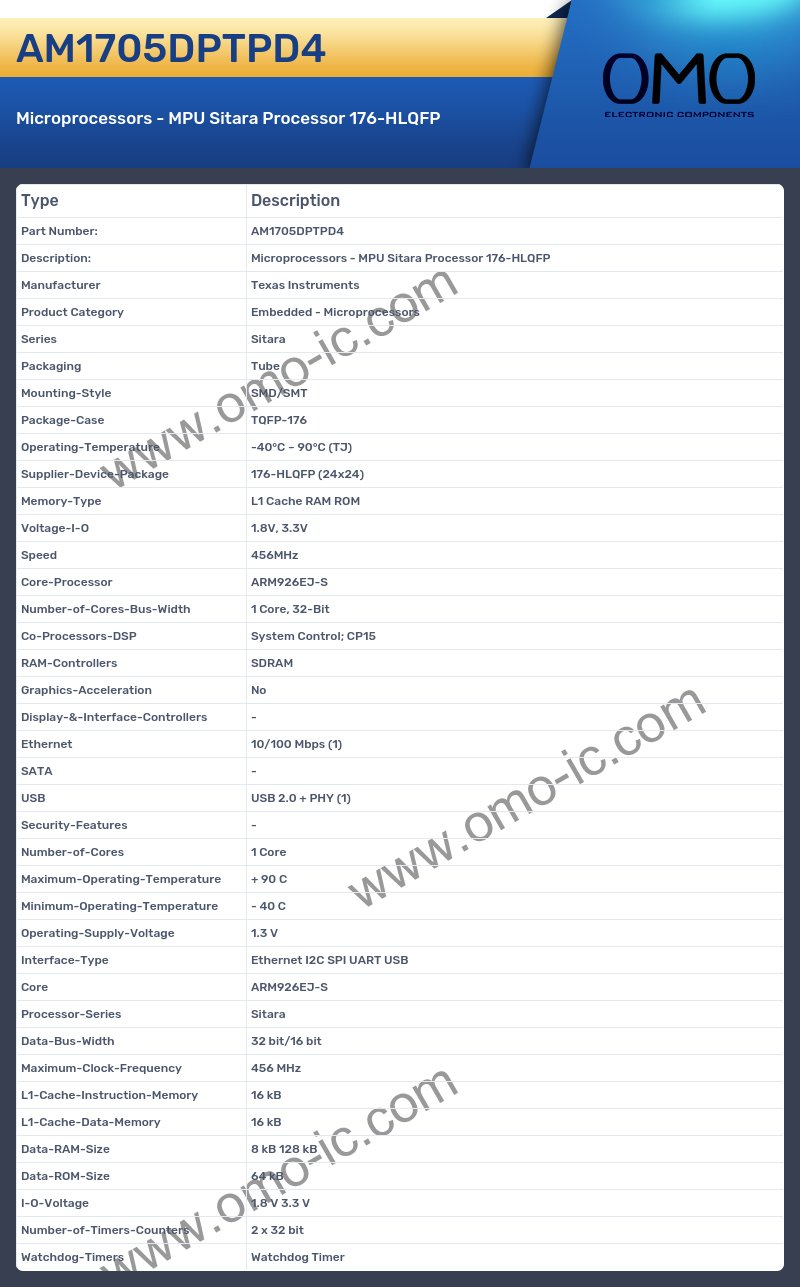

AM1705DPTPD4 Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microprocessors
• Series Sitara
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case TQFP-176
• Operating-Temperature -40°C ~ 90°C (TJ)
• Supplier-Device-Package 176-HLQFP (24x24)
• Memory-Type L1 Cache RAM ROM
• Voltage-I-O 1.8V, 3.3V
• Speed 456MHz
• Core-Processor ARM926EJ-S
• Number-of-Cores-Bus-Width 1 Core, 32-Bit
• Co-Processors-DSP System Control; CP15
• RAM-Controllers SDRAM
• Graphics-Acceleration No
• Display-&-Interface-Controllers -
• Ethernet 10/100 Mbps (1)
• SATA -
• USB USB 2.0 + PHY (1)
• Security-Features -
• Number-of-Cores 1 Core
• Maximum-Operating-Temperature + 90 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.3 V
• Interface-Type Ethernet I2C SPI UART USB
• Core ARM926EJ-S
• Processor-Series Sitara
• Data-Bus-Width 32 bit/16 bit
• Maximum-Clock-Frequency 456 MHz
• L1-Cache-Instruction-Memory 16 kB
• L1-Cache-Data-Memory 16 kB
• Data-RAM-Size 8 kB 128 kB
• Data-ROM-Size 64 kB
• I-O-Voltage 1.8 V 3.3 V
• Number-of-Timers-Counters 2 x 32 bit
• Watchdog-Timers Watchdog Timer
