ATSAM4S16CA-AUR

ATSAM4S16CA-AUR Overview

Product belongs to the SAM4S series. Digi-ReelR Alternate Packaging is the packaging method for this product 100-LQFP Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 100-LQFP (14x14) This product has 79 I/O ports for versatile connectivity. Operating frequency: 120MHz Program memory type: FLASH EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB interface Supply Voltage: 1.62 V ~ 3.6 V 32-Bit architecture Internal oscillator type

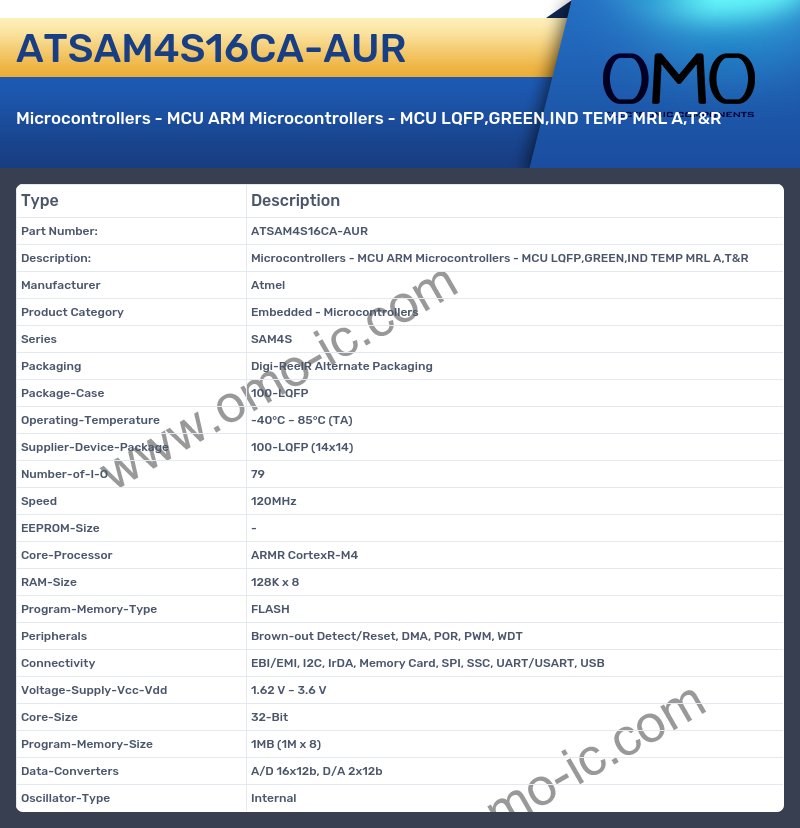

ATSAM4S16CA-AUR Image

ATSAM4S16CA-AUR Specifications

• Manufacturer Atmel
• Product Category Embedded - Microcontrollers
• Series SAM4S
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 100-LQFP
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 100-LQFP (14x14)
• Number-of-I-O 79
• Speed 120MHz
• EEPROM-Size -
• Core-Processor ARMR CortexR-M4
• RAM-Size 128K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
• Connectivity EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
• Voltage-Supply-Vcc-Vdd 1.62 V ~ 3.6 V
• Core-Size 32-Bit
• Program-Memory-Size 1MB (1M x 8)
• Data-Converters A/D 16x12b, D/A 2x12b
• Oscillator-Type Internal

ATSAM4S16CA-AUR FAQ

• A: At what frequency does the Series?

  Q: The product Series is SAM4S.

• A: At what frequency does the Packaging?

  Q: The product Packaging is Digi-ReelR Alternate Packaging.

• A: At what frequency does the Package-Case?

  Q: The product Package-Case is 100-LQFP.

• A: What is the Operating-Temperature of the product?

  Q: The Operating-Temperature of the product is -40°C ~ 85°C (TA).

• A: What is the Supplier-Device-Package of the product?

  Q: The Supplier-Device-Package of the product is 100-LQFP (14x14).

• A: At what frequency does the Number-of-I-O?

  Q: The product Number-of-I-O is 79.

• A: At what frequency does the Speed?

  Q: The product Speed is 120MHz.

• A: Is the cutoff frequency of the product Program-Memory-Type?

  Q: Yes, the product's Program-Memory-Type is indeed FLASH

• A: What is the Connectivity of the product?

  Q: The Connectivity of the product is EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB.

• A: What is the Voltage-Supply-Vcc-Vdd of the product?

  Q: The Voltage-Supply-Vcc-Vdd of the product is 1.62 V ~ 3.6 V.

• A: What is the Core-Size of the product?

  Q: The Core-Size of the product is 32-Bit.

• A: At what frequency does the Oscillator-Type?

  Q: The product Oscillator-Type is Internal.
