ATSAM4SD16CA-CU

ATSAM4SD16CA-CU Overview

Product belongs to the SAM4S series. Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style TFBGA-100 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 100-TFBGA (9x9) This product has 79 I/O ports for versatile connectivity. Operating frequency: 120MHz Program memory type: FLASH EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB interface Supply Voltage: 1.62 V ~ 3.6 V 32-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.62 V to 3.6 V supply voltage for reliable performance. I2C I2S SPI UART interface type Processor Core: ARM Cortex M4 This product is powered by the RISC Processor-Series, providing high performance and efficiency. The 32 bit. Maximum clock frequency of 120 MHz Number of ADC Channels: 16 This product has 79 I/O connections. This product has a 160 kB data RAM size, providing ample storage for complex applications. This product features 6 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage.

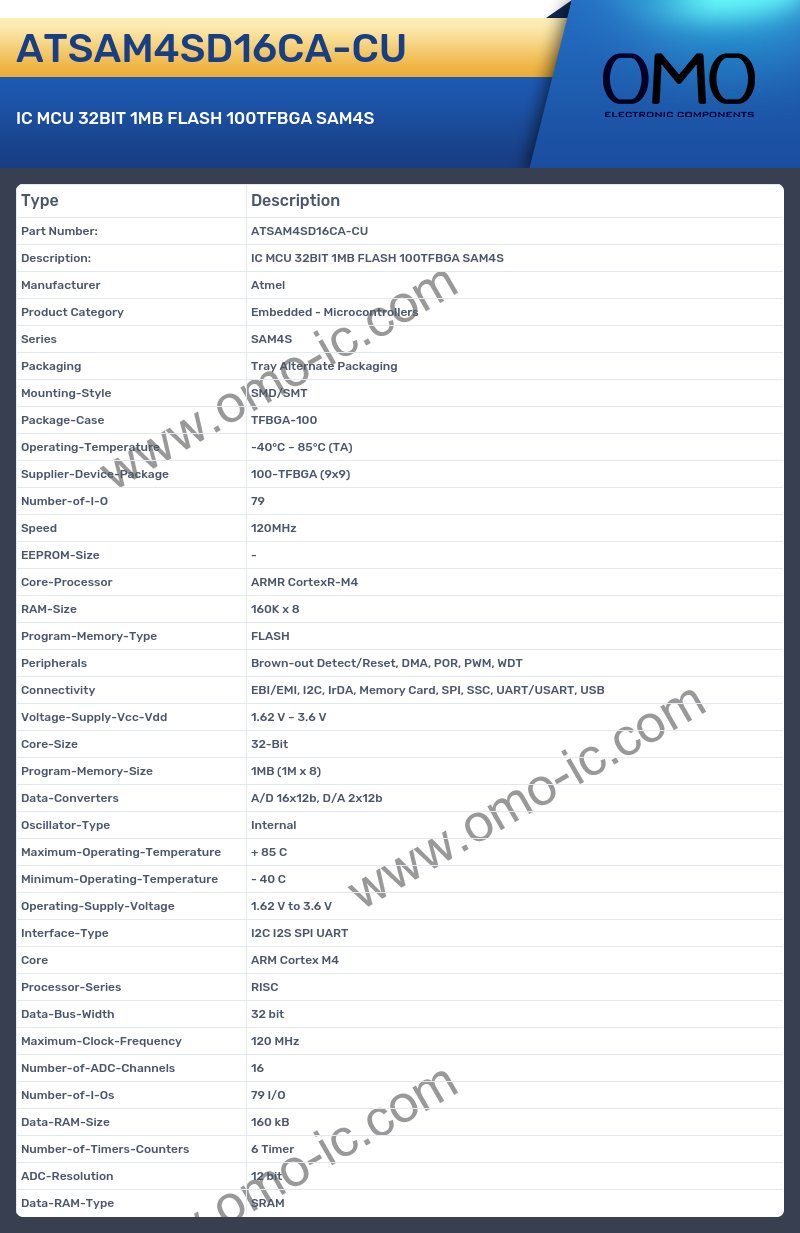

ATSAM4SD16CA-CU Image

ATSAM4SD16CA-CU Specifications

• Manufacturer Atmel
• Product Category Embedded - Microcontrollers
• Series SAM4S
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case TFBGA-100
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 100-TFBGA (9x9)
• Number-of-I-O 79
• Speed 120MHz
• EEPROM-Size -
• Core-Processor ARMR CortexR-M4
• RAM-Size 160K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
• Connectivity EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
• Voltage-Supply-Vcc-Vdd 1.62 V ~ 3.6 V
• Core-Size 32-Bit
• Program-Memory-Size 1MB (1M x 8)
• Data-Converters A/D 16x12b, D/A 2x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.62 V to 3.6 V
• Interface-Type I2C I2S SPI UART
• Core ARM Cortex M4
• Processor-Series RISC
• Data-Bus-Width 32 bit
• Maximum-Clock-Frequency 120 MHz
• Number-of-ADC-Channels 16
• Number-of-I-Os 79 I/O
• Data-RAM-Size 160 kB
• Number-of-Timers-Counters 6 Timer
• ADC-Resolution 12 bit
• Data-RAM-Type SRAM
