| Mfr. #: | BAT54JFILM |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | DIODE SCHOTTKY 40V 300MA SOD323 |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | BAT54JFILM Datenblatt |
Product belongs to the BAT54 series. This product is categorized as Schottky Diodes Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001164 oz SMD/SMT Mounting-Style SC-76, SOD-323 Si is the technology used. Surface Mount mounting type Supplier device package: SOD-323 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1μA @ 30V Current-Reverse-Leakage-Vr 1. Vf Max 900mV @ 100mA is the Voltage-Forward; Maximum DC reverse voltage 40V The 300mA (DC) Current-Average-Rectified-Io; The capacitance value of this product is 10pF @ 1V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 150°C Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 0.9 V at 0.1 A Ir-Reverse-Current is 1 uA at 30 V. If-Forward-Current is 0.3 A. VRRM (40 V) Reverse Voltage 1 A IFSM Forward Surge Current The 5 ns TRR-Reverse-Recovery-time
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

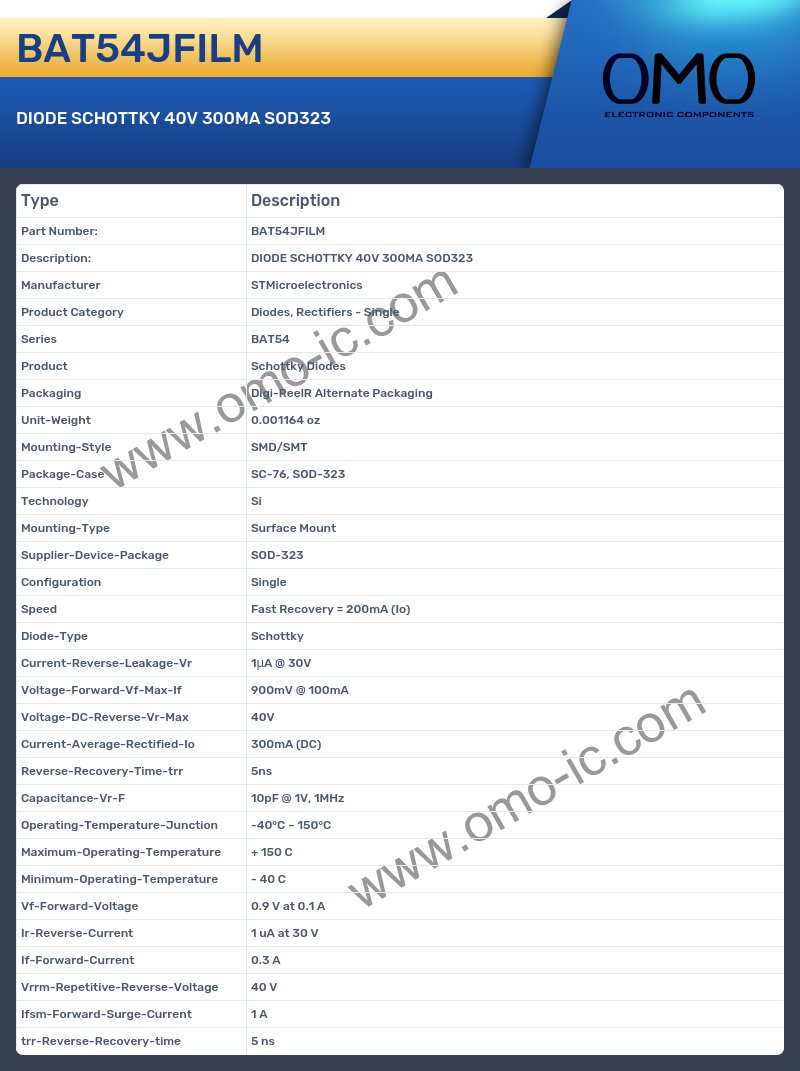

BAT54JFILM Specifications
A: What is the Series of the product?
Q: The Series of the product is BAT54.
A: What is the Product of the product?
Q: The Product of the product is Schottky Diodes.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.001164 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SC-76, SOD-323.
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Si
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is SOD-323.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: At what frequency does the Speed?
Q: The product Speed is Fast Recovery = 200mA (Io).
A: At what frequency does the Diode-Type?
Q: The product Diode-Type is Schottky.
A: What is the Current-Reverse-Leakage-Vr of the product?
Q: The Current-Reverse-Leakage-Vr of the product is 1μA @ 30V.
A: At what frequency does the Voltage-Forward-Vf-Max-If?
Q: The product Voltage-Forward-Vf-Max-If is 900mV @ 100mA.
A: At what frequency does the Voltage-DC-Reverse-Vr-Max?
Q: The product Voltage-DC-Reverse-Vr-Max is 40V.
A: At what frequency does the Current-Average-Rectified-Io?
Q: The product Current-Average-Rectified-Io is 300mA (DC).
A: What is the Capacitance-Vr-F of the product?
Q: The Capacitance-Vr-F of the product is 10pF @ 1V, 1MHz.
A: At what frequency does the Operating-Temperature-Junction?
Q: The product Operating-Temperature-Junction is -40°C ~ 150°C.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: At what frequency does the Vf-Forward-Voltage?
Q: The product Vf-Forward-Voltage is 0.9 V at 0.1 A.
A: What is the Ir-Reverse-Current of the product?
Q: The Ir-Reverse-Current of the product is 1 uA at 30 V.
A: At what frequency does the If-Forward-Current?
Q: The product If-Forward-Current is 0.3 A.
A: At what frequency does the Vrrm-Repetitive-Reverse-Voltage?
Q: The product Vrrm-Repetitive-Reverse-Voltage is 40 V.
A: Is the cutoff frequency of the product Ifsm-Forward-Surge-Current?
Q: Yes, the product's Ifsm-Forward-Surge-Current is indeed 1 A
A: What is the trr-Reverse-Recovery-time of the product?
Q: The trr-Reverse-Recovery-time of the product is 5 ns.
