BUF05704AIPWPR Overview

Product belongs to the BUF05704 series. This product is categorized as LCD Gamma Buffers Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002046 oz SMD/SMT Mounting-Style HTSSOP-14 Surface Mount mounting type Output-Type: Rail-to-Rail Versatile TFT-LCD Panels: Gamma Buffer, VCOM Driver applications for maximum usability Number of channels: 4 Channel Supplier device package: 14-HTSSOP 4 is 8. Voltage supply range: 4.5 V ~ 18 V This product has a 5mA of 200μA. The 1MHz The 1.6 V/μs. Current-Output-Channel is - Power-off control: No Shutdown Power-off control: 2670 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C 7.5 mA is 92 nA. Maximum supply voltage of 18 V Minimum supply voltage is 7 V Input bias current of 1 pA The 30 mV. The 62 dB.

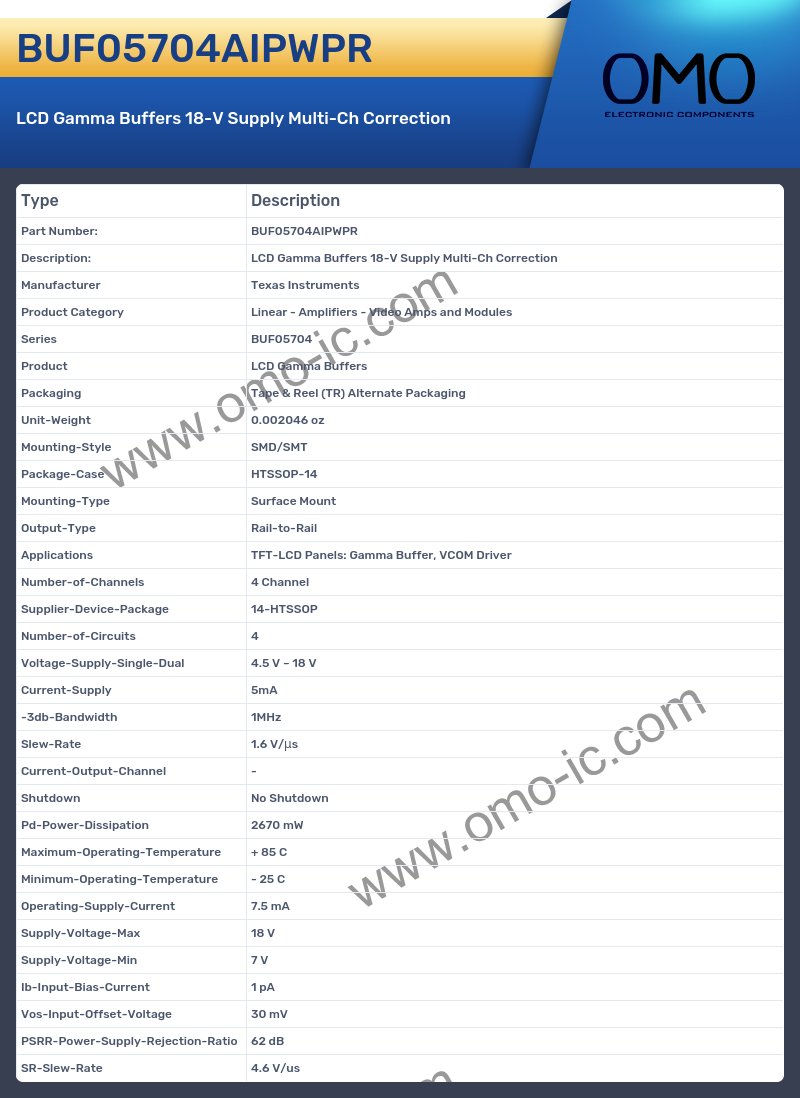

BUF05704AIPWPR Image

BUF05704AIPWPR Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series BUF05704
• Product LCD Gamma Buffers
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002046 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-14
• Mounting-Type Surface Mount
• Output-Type Rail-to-Rail
• Applications TFT-LCD Panels: Gamma Buffer, VCOM Driver
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-HTSSOP
• Number-of-Circuits 4
• Voltage-Supply-Single-Dual 4.5 V ~ 18 V
• Current-Supply 5mA
• -3db-Bandwidth 1MHz
• Slew-Rate 1.6 V/μs
• Current-Output-Channel -
• Shutdown No Shutdown
• Pd-Power-Dissipation 2670 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Current 7.5 mA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 7 V
• Ib-Input-Bias-Current 1 pA
• Vos-Input-Offset-Voltage 30 mV
• PSRR-Power-Supply-Rejection-Ratio 62 dB
• SR-Slew-Rate 4.6 V/us
