| Mfr. #: | CD4016BEE4 |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Analog Switch ICs Quad |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | CD4016BEE4 Datenblatt |
Product belongs to the 4000B series. Type: Bilateral, FET Switches Tube Alternate Packaging is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style PDIP-14 Operational temperature range: -55°C ~ 125°C Through Hole mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 14-PDIP Voltage supply source: Analog and digital Dual Supply Configuration 4 x SPST Circuit type: 1 x 1:1 4 Independent Circuit Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 3 V to 18 V supply voltage for reliable performance. Maximum supply current: 5 uA Maximum supply voltage of 18 V Minimum supply voltage is 3 V Single Supply Dual Supply supply type Max on-resistance of 850 Ohms 4 Switch switch functionality Maximum on-time: 30 ns The maximum switch voltage for this product is 15 V The +/- 10 V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

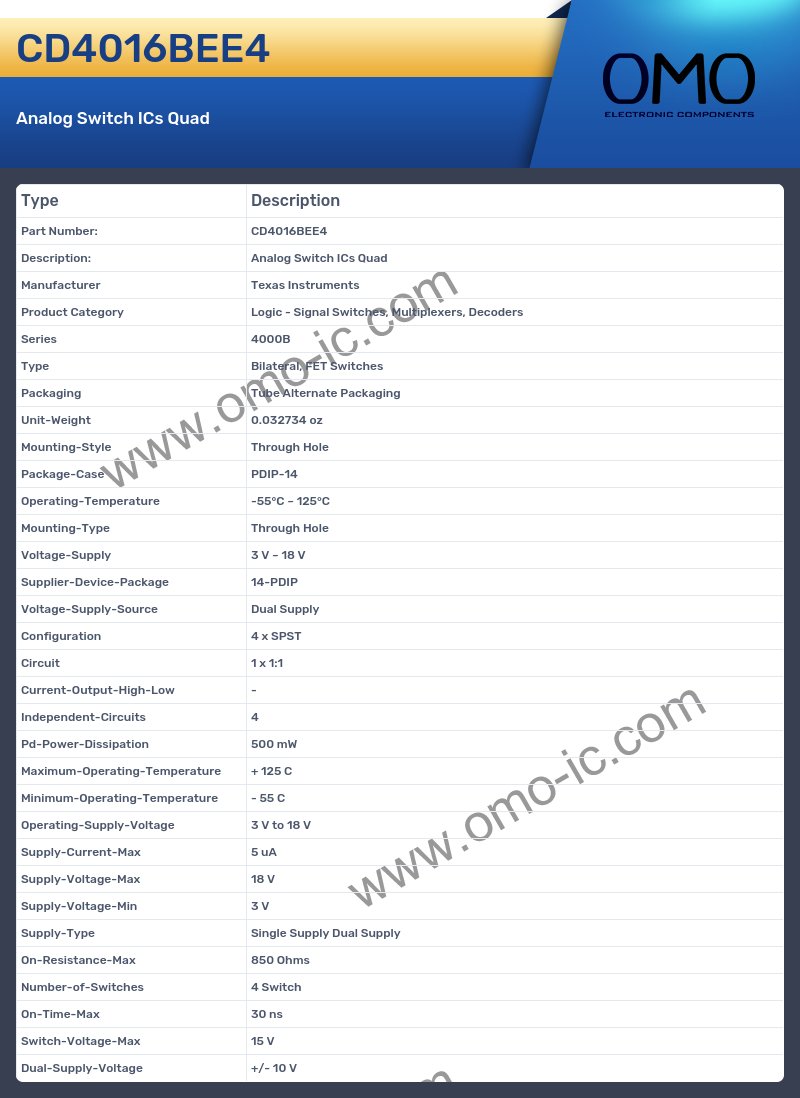

CD4016BEE4 Specifications
A: At what frequency does the Series?
Q: The product Series is 4000B.
A: At what frequency does the Type?
Q: The product Type is Bilateral, FET Switches.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.032734 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is PDIP-14.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -55°C ~ 125°C.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 3 V ~ 18 V
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 14-PDIP.
A: Is the cutoff frequency of the product Voltage-Supply-Source?
Q: Yes, the product's Voltage-Supply-Source is indeed Dual Supply
A: At what frequency does the Configuration?
Q: The product Configuration is 4 x SPST.
A: What is the Circuit of the product?
Q: The Circuit of the product is 1 x 1:1.
A: At what frequency does the Independent-Circuits?
Q: The product Independent-Circuits is 4.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 500 mW
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 3 V to 18 V.
A: What is the Supply-Current-Max of the product?
Q: The Supply-Current-Max of the product is 5 uA.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 18 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 3 V.
A: Is the cutoff frequency of the product Supply-Type?
Q: Yes, the product's Supply-Type is indeed Single Supply Dual Supply
A: At what frequency does the On-Resistance-Max?
Q: The product On-Resistance-Max is 850 Ohms.
A: Is the cutoff frequency of the product Number-of-Switches?
Q: Yes, the product's Number-of-Switches is indeed 4 Switch
A: What is the On-Time-Max of the product?
Q: The On-Time-Max of the product is 30 ns.
A: Is the cutoff frequency of the product Switch-Voltage-Max?
Q: Yes, the product's Switch-Voltage-Max is indeed 15 V
A: Is the cutoff frequency of the product Dual-Supply-Voltage?
Q: Yes, the product's Dual-Supply-Voltage is indeed +/- 10 V
