| Mfr. #: | CD4053BM |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | Multiplexer Switch ICs CMOS Tr 2-Ch Ana Multipl/Demltplx |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | CD4053BM Datenblatt |
Product belongs to the CD4053B series. This product is categorized as Multiplexers/Demultiplexers Tube is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style Number of channels: 3 Channel Configuration 3 x 2 30 Mhz bandwidth Power-off control: 700 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 5 V to 18 V supply voltage for reliable performance. Maximum supply current: 100 uA Maximum supply voltage of 18 V Minimum supply voltage is 5 V SOIC-16 55 ns at 5 V 35 ns at 10 V 25 ns at 15 V is 23 microseconds. Maximum dual supply voltage: +/- 9 V Single Supply Dual Supply supply type Max on-resistance of 240 Ohms Maximum off time: 420 ns Maximum on-time: 1.2 us
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

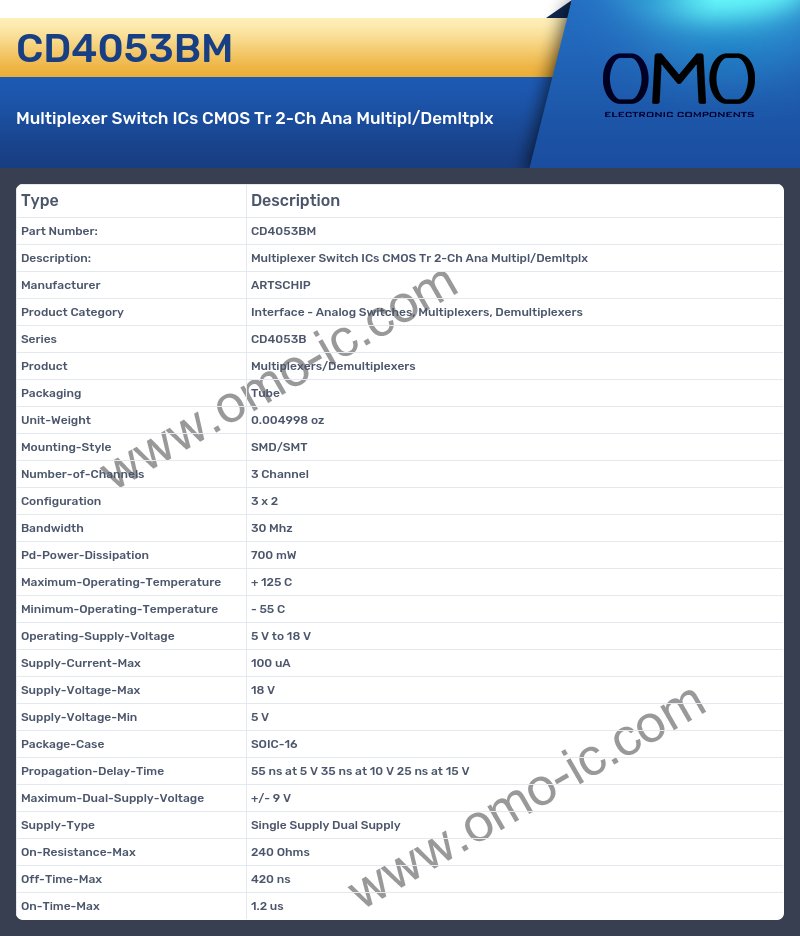

CD4053BM Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed CD4053B
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Multiplexers/Demultiplexers
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.004998 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 3 Channel.
A: At what frequency does the Configuration?
Q: The product Configuration is 3 x 2.
A: At what frequency does the Bandwidth?
Q: The product Bandwidth is 30 Mhz.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 700 mW.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 125 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: At what frequency does the Operating-Supply-Voltage?
Q: The product Operating-Supply-Voltage is 5 V to 18 V.
A: Is the cutoff frequency of the product Supply-Current-Max?
Q: Yes, the product's Supply-Current-Max is indeed 100 uA
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 18 V
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 5 V
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOIC-16.
A: Is the cutoff frequency of the product Propagation-Delay-Time?
Q: Yes, the product's Propagation-Delay-Time is indeed 55 ns at 5 V 35 ns at 10 V 25 ns at 15 V
A: At what frequency does the Maximum-Dual-Supply-Voltage?
Q: The product Maximum-Dual-Supply-Voltage is +/- 9 V.
A: What is the Supply-Type of the product?
Q: The Supply-Type of the product is Single Supply Dual Supply.
A: What is the On-Resistance-Max of the product?
Q: The On-Resistance-Max of the product is 240 Ohms.
A: Is the cutoff frequency of the product Off-Time-Max?
Q: Yes, the product's Off-Time-Max is indeed 420 ns
A: What is the On-Time-Max of the product?
Q: The On-Time-Max of the product is 1.2 us.
