CD4066BM96E4 Overview

Product belongs to the 4000B series. Type: Bilateral, FET Switches Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 14-SOIC Voltage supply source: Analog and digital Dual Supply Configuration 4 x SPST Circuit type: 1 x 1:1 4 Independent Circuit Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 3 V to 18 V supply voltage for reliable performance. Maximum supply current: 5 uA Maximum supply voltage of 18 V Minimum supply voltage is 3 V Single Supply Dual Supply supply type Max on-resistance of 240 Ohms Maximum off time: 30 ns 4 Switch switch functionality Maximum on-time: 30 ns The maximum switch voltage for this product is 15 V The +/- 7.5 V.

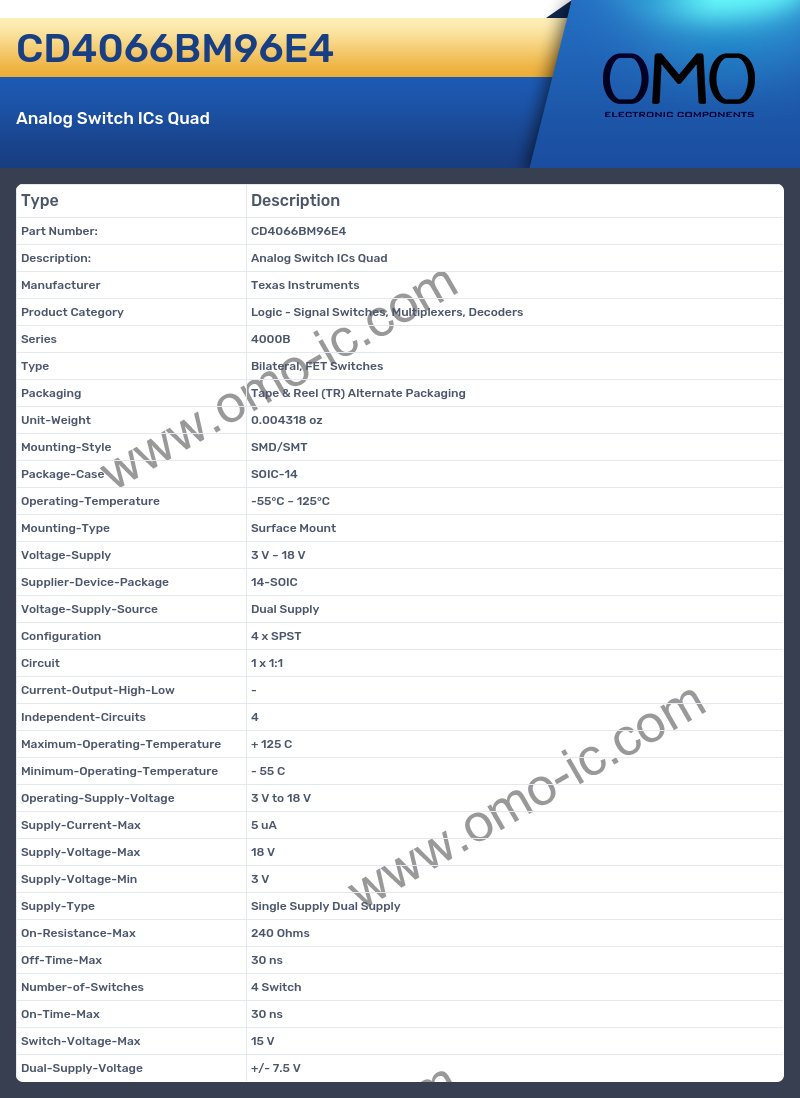

CD4066BM96E4 Image

CD4066BM96E4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Signal Switches, Multiplexers, Decoders
• Series 4000B
• Type Bilateral, FET Switches
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Voltage-Supply 3 V ~ 18 V
• Supplier-Device-Package 14-SOIC
• Voltage-Supply-Source Dual Supply
• Configuration 4 x SPST
• Circuit 1 x 1:1
• Current-Output-High-Low -
• Independent-Circuits 4
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 3 V to 18 V
• Supply-Current-Max 5 uA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 3 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 240 Ohms
• Off-Time-Max 30 ns
• Number-of-Switches 4 Switch
• On-Time-Max 30 ns
• Switch-Voltage-Max 15 V
• Dual-Supply-Voltage +/- 7.5 V
