CD4504BMG4 Overview

Product belongs to the 4000B series. Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Non-Inverted Supplier device package: 16-SOIC 1 is 8. This product uses Voltage Level as the translator type This product's Unidirectional 6 Channels The product is designed to operate at 5 V ~ 15 V. The Voltage-VCCB is set at 5 V ~ 15 V.

CD4504BMG4 Image

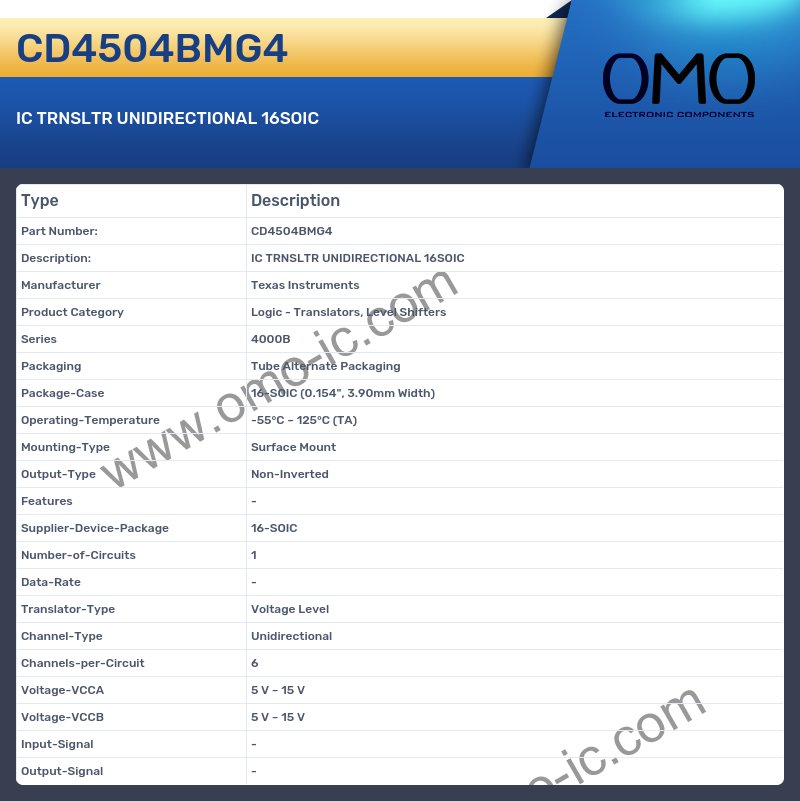

CD4504BMG4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Translators, Level Shifters
• Series 4000B
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Non-Inverted
• Features -
• Supplier-Device-Package 16-SOIC
• Number-of-Circuits 1
• Data-Rate -
• Translator-Type Voltage Level
• Channel-Type Unidirectional
• Channels-per-Circuit 6
• Voltage-VCCA 5 V ~ 15 V
• Voltage-VCCB 5 V ~ 15 V
• Input-Signal -
• Output-Signal -
