CSD17510Q5A

CSD17510Q5A Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. 8-PowerTDFN Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: 8-VSON (5x6) Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 30V This product has an 1250pF @ 15V value of 300pF @ 25V. This product's Standard. 20A (Ta), 100A (Tc) continuous drain-ID current at 25°C; This product has an 5.2 mOhm @ 20A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 3 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product's 20 V. The ID of continuous drain current is 20 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. This product has a 1.5 V Vgs-th gate-source threshold voltage for efficient power management. The 5.4 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 6.4 nC. This product features a 59 S of 500 S for high performance.

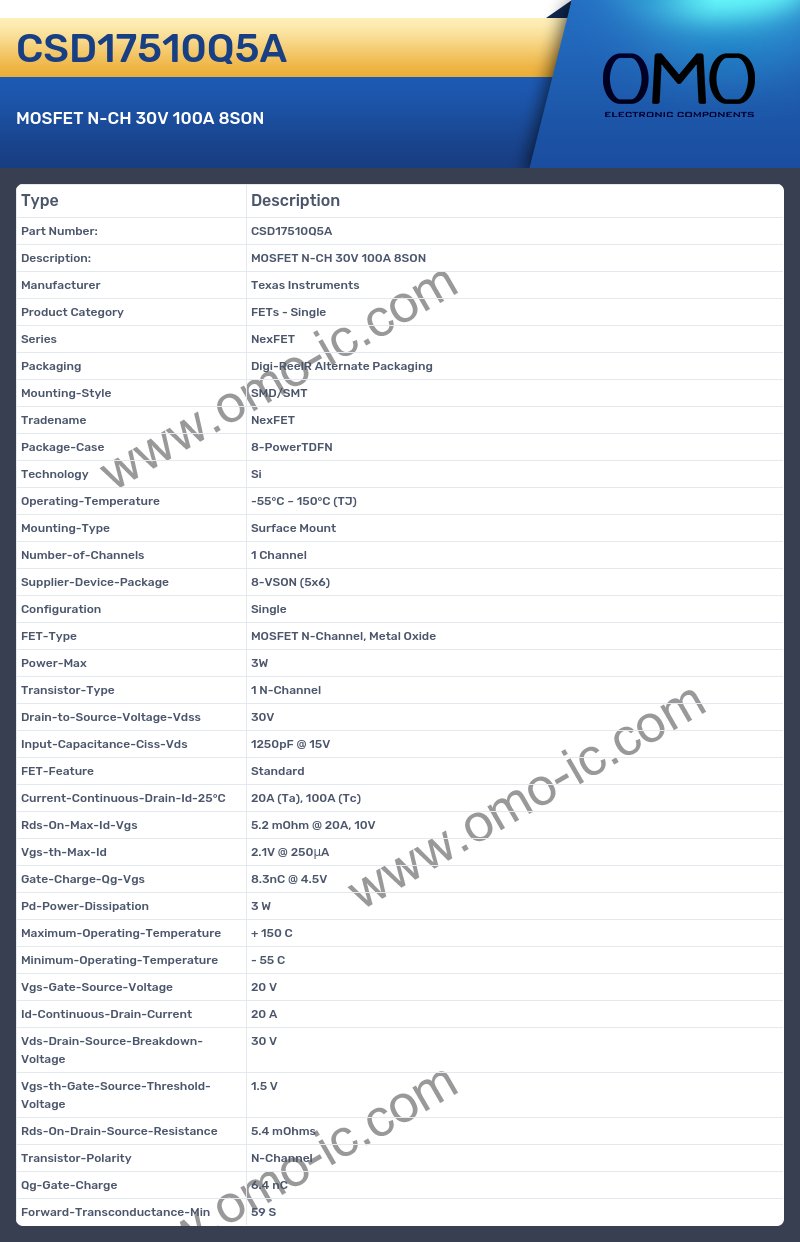

CSD17510Q5A Image

CSD17510Q5A Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Single
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case 8-PowerTDFN
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-VSON (5x6)
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 3W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 30V
• Input-Capacitance-Ciss-Vds 1250pF @ 15V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 20A (Ta), 100A (Tc)
• Rds-On-Max-Id-Vgs 5.2 mOhm @ 20A, 10V
• Vgs-th-Max-Id 2.1V @ 250μA
• Gate-Charge-Qg-Vgs 8.3nC @ 4.5V
• Pd-Power-Dissipation 3 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 20 A
• Vds-Drain-Source-Breakdown-Voltage 30 V
• Vgs-th-Gate-Source-Threshold-Voltage 1.5 V
• Rds-On-Drain-Source-Resistance 5.4 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 6.4 nC
• Forward-Transconductance-Min 59 S
