| Mfr. #: | CSD17579Q3AT |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | IGBT Transistors MOSFET 30V NCh NexFET Pwr MOSFET |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | CSD17579Q3AT Datenblatt |
Product belongs to the CSD17579Q3A series. Reel is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. VSONP-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 29 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 1 ns of 16 ns. This product has a 5 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 39 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. This product has a 1.5 V Vgs-th gate-source threshold voltage for efficient power management. The 11.8 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 11 ns This product has a 2 ns. Qg-Gate-Charge is 5.3 nC. This product features a 37 S of 500 S for high performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

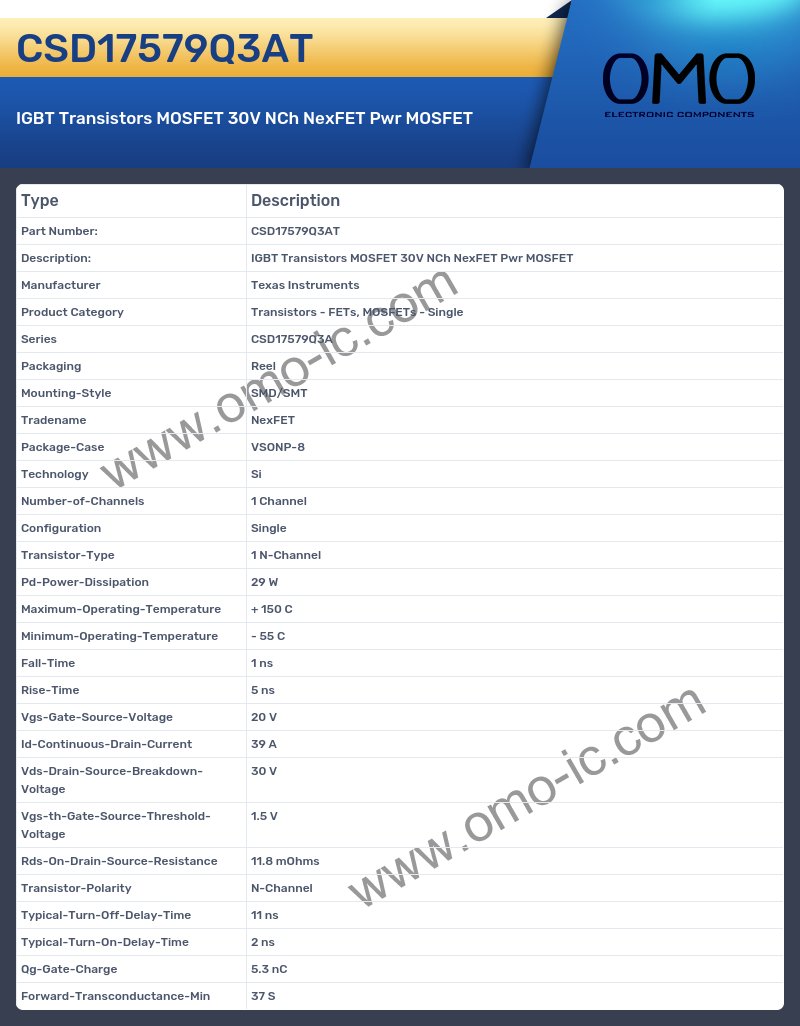

CSD17579Q3AT Specifications
A: What is the Series of the product?
Q: The Series of the product is CSD17579Q3A.
A: At what frequency does the Packaging?
Q: The product Packaging is Reel.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Tradename?
Q: The product Tradename is NexFET.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed VSONP-8
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 N-Channel.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 29 W
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 1 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 5 ns.
A: What is the Vgs-Gate-Source-Voltage of the product?
Q: The Vgs-Gate-Source-Voltage of the product is 20 V.
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 39 A.
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 30 V
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 1.5 V.
A: At what frequency does the Rds-On-Drain-Source-Resistance?
Q: The product Rds-On-Drain-Source-Resistance is 11.8 mOhms.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is N-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 11 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 2 ns.
A: What is the Qg-Gate-Charge of the product?
Q: The Qg-Gate-Charge of the product is 5.3 nC.
A: Is the cutoff frequency of the product Forward-Transconductance-Min?
Q: Yes, the product's Forward-Transconductance-Min is indeed 37 S
