CSD18533Q5A

CSD18533Q5A Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product 8-PowerTDFN Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 8-SON (5x6) This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. 60V This product has an 2750pF @ 30V value of 300pF @ 25V. This product's Logic Level Gate. 17A (Ta), 100A (Tc) continuous drain-ID current at 25°C; This product has an 5.9 mOhm @ 18A, 10V of 12 Ohm @ 150mA, 0V.

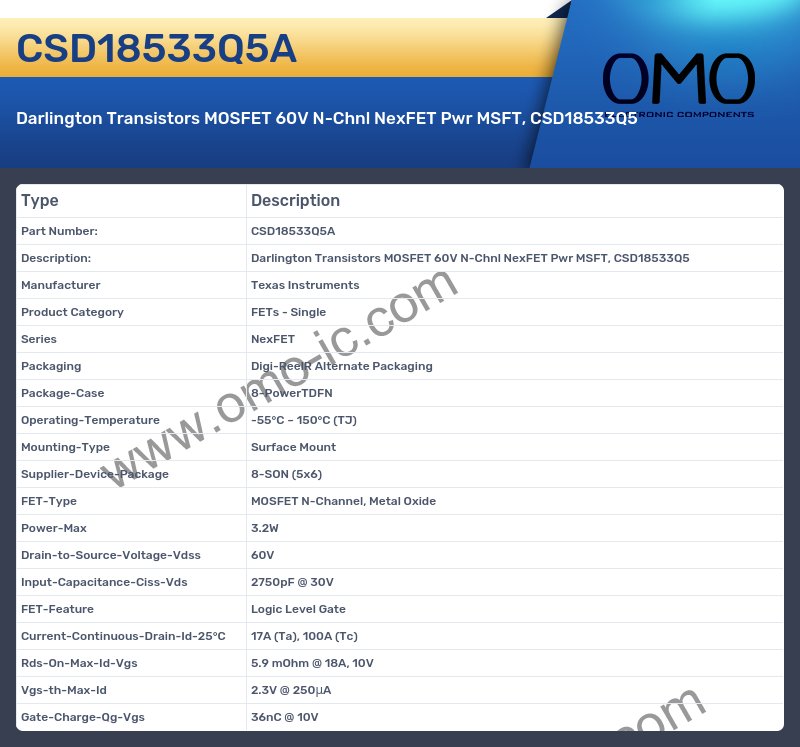

CSD18533Q5A Image

CSD18533Q5A Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Single
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 8-PowerTDFN
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SON (5x6)
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 3.2W
• Drain-to-Source-Voltage-Vdss 60V
• Input-Capacitance-Ciss-Vds 2750pF @ 30V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 17A (Ta), 100A (Tc)
• Rds-On-Max-Id-Vgs 5.9 mOhm @ 18A, 10V
• Vgs-th-Max-Id 2.3V @ 250μA
• Gate-Charge-Qg-Vgs 36nC @ 10V
