CSD95472Q5MC Overview

Product belongs to the NexFET series. This product is categorized as Driver ICs - Various Type: Synchronous Buck NexFET Power Stage Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. VSON-12 Power MOSFET is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile Synchronous Buck Converters applications for maximum usability Interface: PWM Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 12-VSON (5x6) Configuration PowerStage Number-of-Outputs: 1 Output Current-Output-Channel is 60A The -. This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The -. The product's 90A is 4A. Voltage-Load range is 4.5 V ~ 16 V. Power-off control: 12 W Maximum operating temperature of + 155 C Minimum operating temperature: - 55 C Output voltage: 5.5 V Output current: 60 A Maximum supply voltage of 16 V Minimum supply voltage is 4.5 V Number-of-Drivers: 1 Driver

CSD95472Q5MC Image

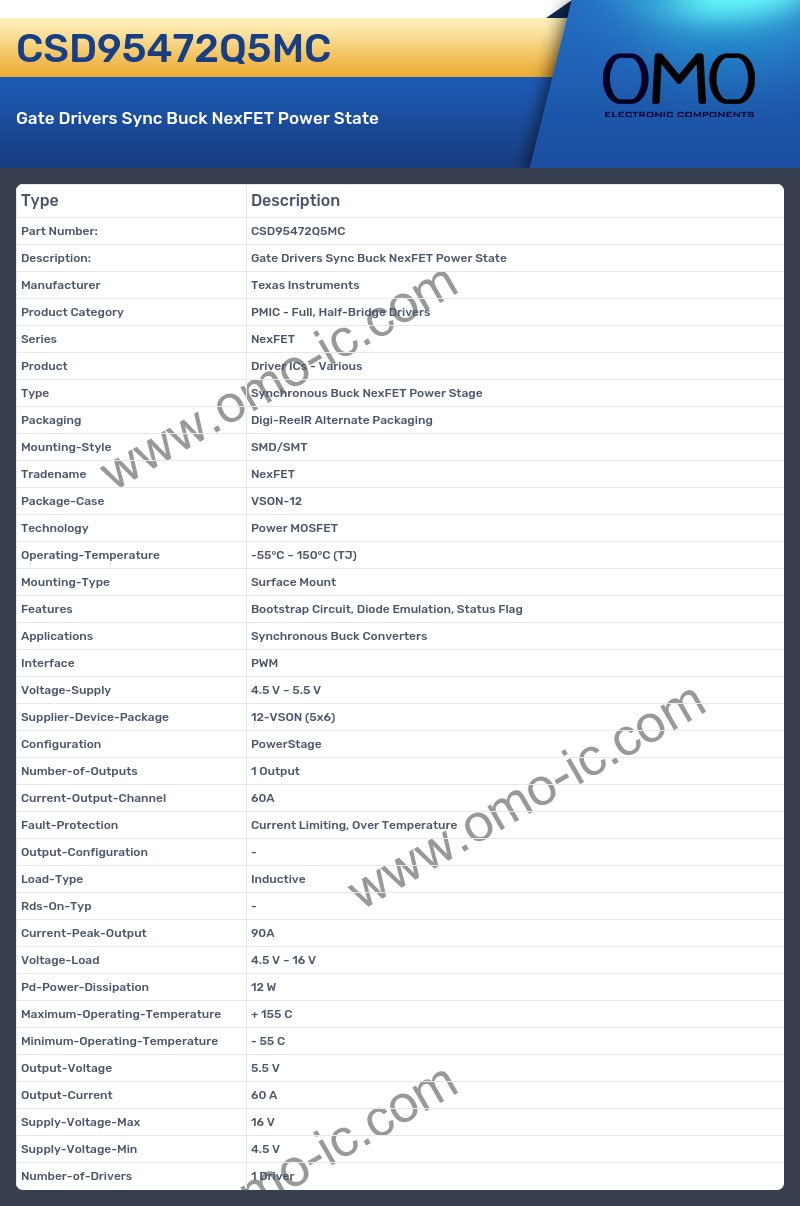

CSD95472Q5MC Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Full, Half-Bridge Drivers
• Series NexFET
• Product Driver ICs - Various
• Type Synchronous Buck NexFET Power Stage
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case VSON-12
• Technology Power MOSFET
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Bootstrap Circuit, Diode Emulation, Status Flag
• Applications Synchronous Buck Converters
• Interface PWM
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 12-VSON (5x6)
• Configuration PowerStage
• Number-of-Outputs 1 Output
• Current-Output-Channel 60A
• Fault-Protection Current Limiting, Over Temperature
• Output-Configuration -
• Load-Type Inductive
• Rds-On-Typ -
• Current-Peak-Output 90A
• Voltage-Load 4.5 V ~ 16 V
• Pd-Power-Dissipation 12 W
• Maximum-Operating-Temperature + 155 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage 5.5 V
• Output-Current 60 A
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 1 Driver
