DAC08CPZ

DAC08CPZ Overview

Product belongs to the DAC08 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 16-PDIP Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is ±4.5 V ~ 18 V. The Voltage Supply Digital for this product is -. The architecture of this product is Multiplying DAC . External is the reference type. Number of D-A converters: 1 The 150μs is an impressive 15 us. Yes Differential-Output Power-off control: 174 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 2.5 mA is 92 nA. Parallel interface type Maximum supply voltage of 18 V Minimum supply voltage is 4.5 V Number-of-Converters: 1 Converter Reference voltage is - 15 V to + 14 V .

DAC08CPZ Image

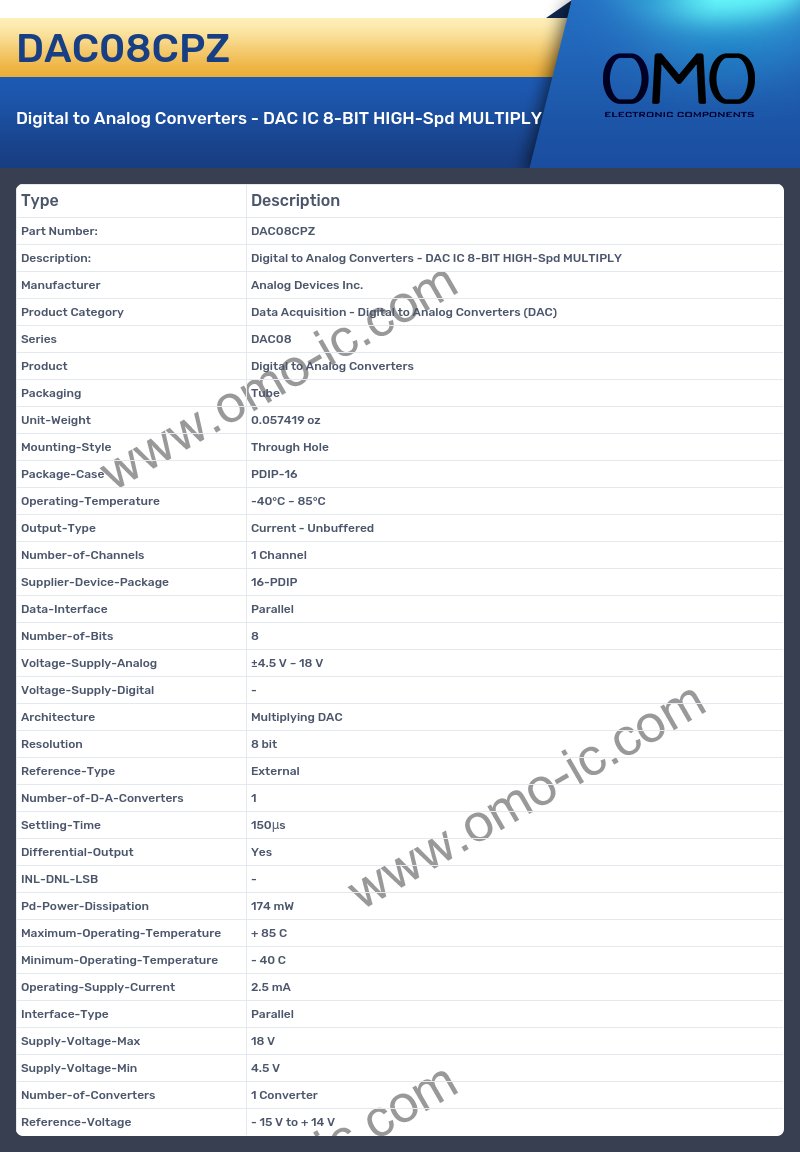

DAC08CPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC08
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.057419 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-PDIP
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog ±4.5 V ~ 18 V
• Voltage-Supply-Digital -
• Architecture Multiplying DAC
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 150μs
• Differential-Output Yes
• INL-DNL-LSB -
• Pd-Power-Dissipation 174 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 2.5 mA
• Interface-Type Parallel
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 4.5 V
• Number-of-Converters 1 Converter
• Reference-Voltage - 15 V to + 14 V
