DAC3174IRGCR

DAC3174IRGCR Overview

Product belongs to the DAC3174 series. This product is categorized as Digital to Analog Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.008021 oz SMD/SMT Mounting-Style VQFN-64 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 64-VQFN (9x9) Data-Interface: LVDS - Parallel 14 bits The Voltage-Supply-Analog is 1.71 V ~ 1.89 V, 3.15 V ~ 3.45 V. The Voltage Supply Digital for this product is 1.71 V ~ 1.89 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 2 The 11μs (Typ) is an impressive 15 us. Yes Differential-Output Power-off control: 530 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 52 mA is 92 nA. Parallel interface type The DAC3174EVM. Maximum supply voltage of 3.3 V Minimum supply voltage is 1.8 V Number-of-Converters: 2 Converter 500 MS/s Sampling Rate Reference voltage is 1.2 V .

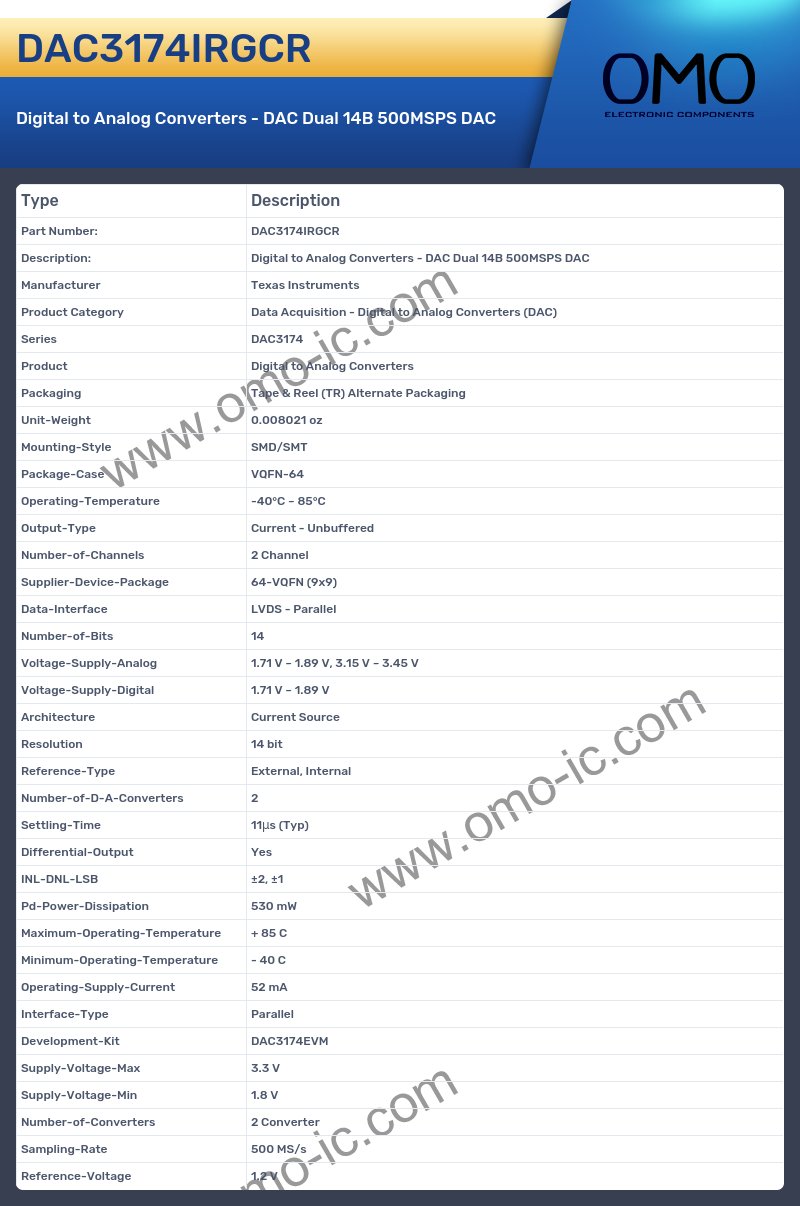

DAC3174IRGCR Image

DAC3174IRGCR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC3174
• Product Digital to Analog Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.008021 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-64
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 64-VQFN (9x9)
• Data-Interface LVDS - Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 1.71 V ~ 1.89 V, 3.15 V ~ 3.45 V
• Voltage-Supply-Digital 1.71 V ~ 1.89 V
• Architecture Current Source
• Resolution 14 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 11μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±2, ±1
• Pd-Power-Dissipation 530 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 52 mA
• Interface-Type Parallel
• Development-Kit DAC3174EVM
• Supply-Voltage-Max 3.3 V
• Supply-Voltage-Min 1.8 V
• Number-of-Converters 2 Converter
• Sampling-Rate 500 MS/s
• Reference-Voltage 1.2 V
