DAC5687IPZP

DAC5687IPZP Overview

Product belongs to the DAC5687 series. This product is categorized as Digital to Analog Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.017827 oz SMD/SMT Mounting-Style HTQFP-100 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 100-HTQFP (14x14) Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 1.71 V ~ 2.15 V. The architecture of this product is Current Sink . External, Internal is the reference type. Number of D-A converters: 2 The 10.4μs (Typ) is an impressive 15 us. Yes Differential-Output Power-off control: 1750 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 2 mA is 92 nA. Parallel interface type Signal-to-Noise Ratio of 75 dB The DAC5687EVM. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Converters: 2 Converter 500 MS/s Sampling Rate Reference voltage is 1.2 V .

DAC5687IPZP Image

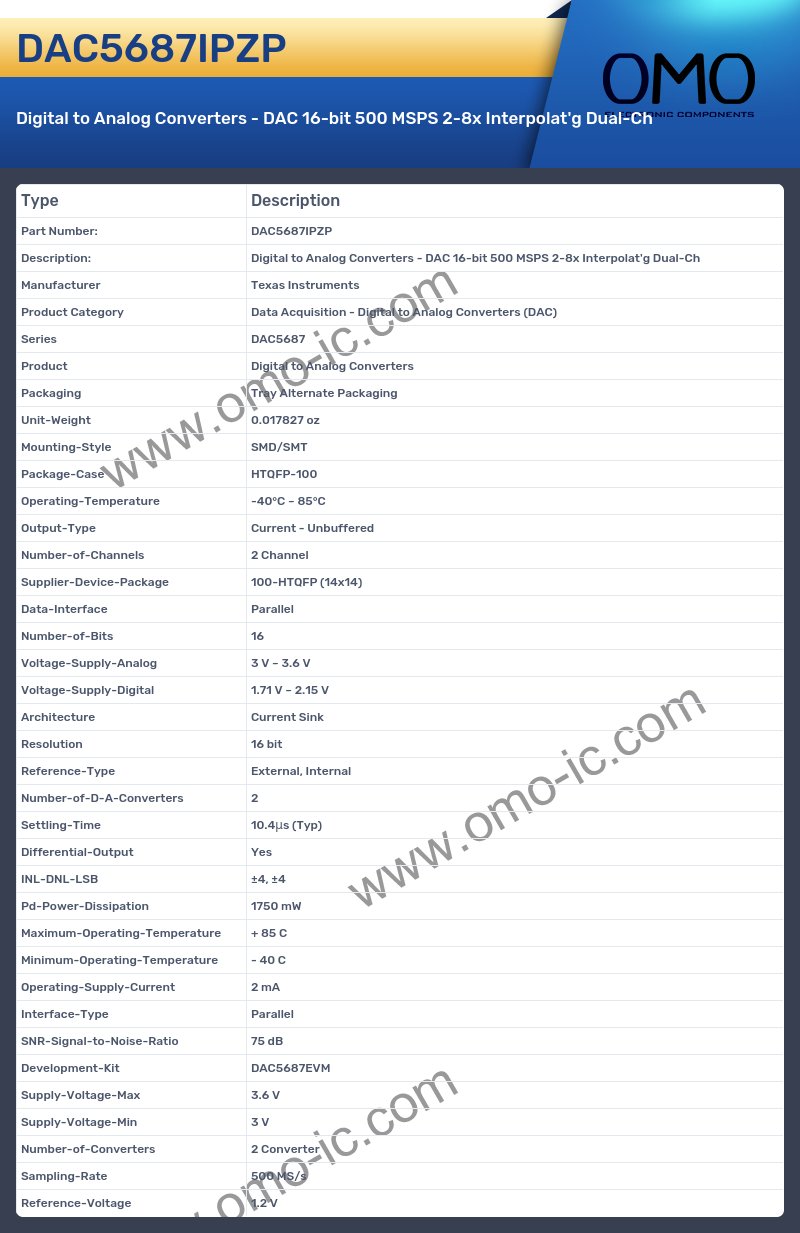

DAC5687IPZP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC5687
• Product Digital to Analog Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.017827 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-100
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 100-HTQFP (14x14)
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 1.71 V ~ 2.15 V
• Architecture Current Sink
• Resolution 16 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 10.4μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±4, ±4
• Pd-Power-Dissipation 1750 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 2 mA
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 75 dB
• Development-Kit DAC5687EVM
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Converters 2 Converter
• Sampling-Rate 500 MS/s
• Reference-Voltage 1.2 V
