DAC7731EB

DAC7731EB Overview

Product belongs to the DAC7731 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.007764 oz SMD/SMT Mounting-Style SSOP-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 24-SSOP Data-Interface: SPI 16 bits The Voltage-Supply-Analog is ±11.4 V ~ 15.75 V, -4.75 V ~ -11.4 V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External, Internal is the reference type. Number of D-A converters: 1 The 5μs is an impressive 15 us. No Differential-Output Power-off control: 150 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type The DAC7731EVM. Maximum supply voltage of 5.25 V 15.75 V Minimum supply voltage is 4.75 V 11.4 V Number-of-Converters: 1 Converter Integral Nonlinearity: 4 LSB Differential nonlinearity: 2 LSB

DAC7731EB Image

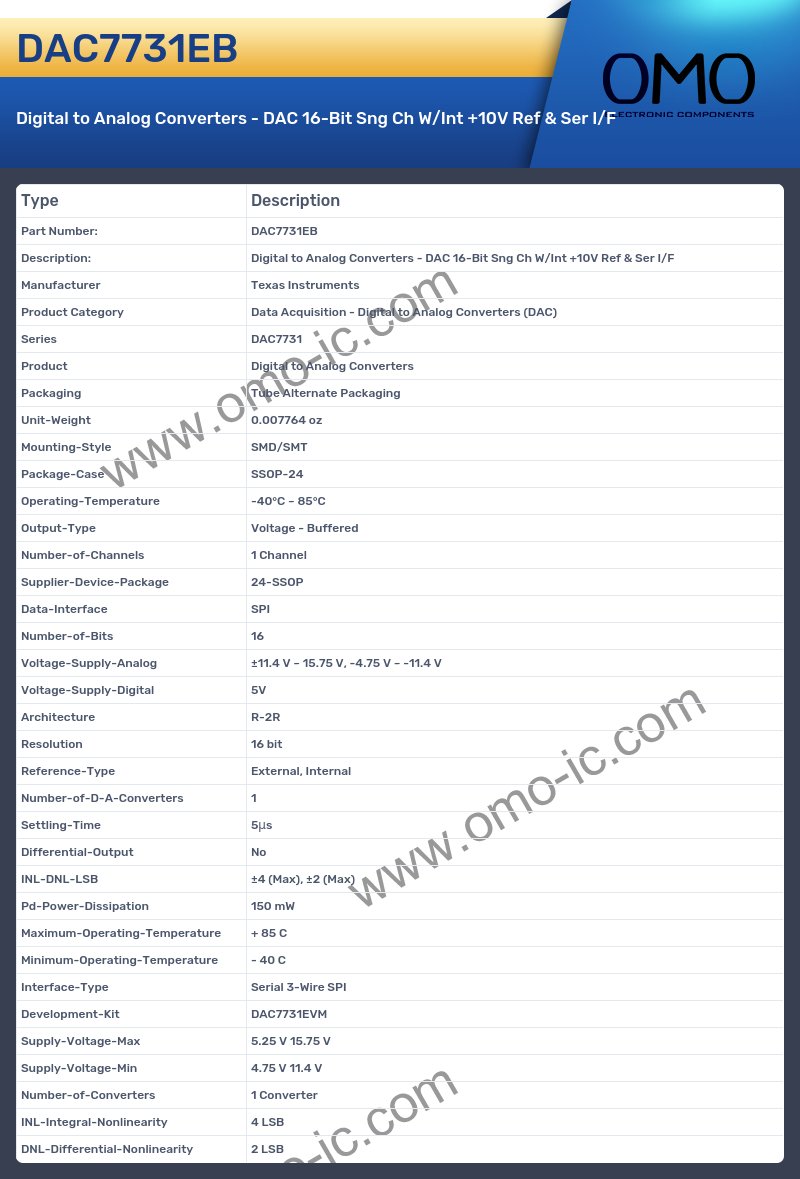

DAC7731EB Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7731
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007764 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 24-SSOP
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog ±11.4 V ~ 15.75 V, -4.75 V ~ -11.4 V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 16 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 5μs
• Differential-Output No
• INL-DNL-LSB ±4 (Max), ±2 (Max)
• Pd-Power-Dissipation 150 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• Development-Kit DAC7731EVM
• Supply-Voltage-Max 5.25 V 15.75 V
• Supply-Voltage-Min 4.75 V 11.4 V
• Number-of-Converters 1 Converter
• INL-Integral-Nonlinearity 4 LSB
• DNL-Differential-Nonlinearity 2 LSB
