DAC813AU Overview

Product belongs to the DAC813 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 Operational temperature range: -55°C ~ 125°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 28-SOIC Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±11.4 V ~ 16.5 V. The Voltage Supply Digital for this product is 11.4 V ~ 16.5 V. The architecture of this product is R-2R . External, Internal is the reference type. Number of D-A converters: 1 The 6μs is an impressive 15 us. No Differential-Output Power-off control: 330 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Maximum supply voltage of +/- 16.5 V Minimum supply voltage is +/- 11.4 V Number-of-Converters: 1 Converter Integral Nonlinearity: 0.5 LSB Differential nonlinearity: 0.75 LSB

DAC813AU Image

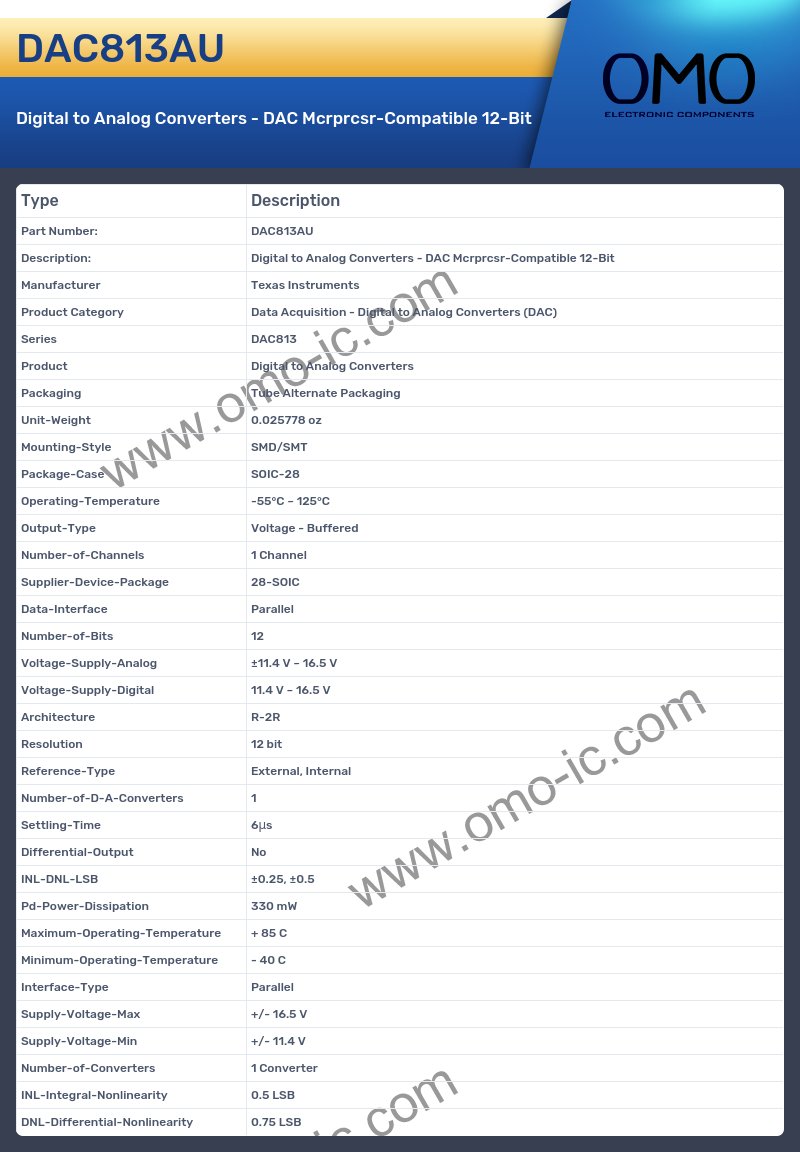

DAC813AU Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC813
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Operating-Temperature -55°C ~ 125°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SOIC
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±11.4 V ~ 16.5 V
• Voltage-Supply-Digital 11.4 V ~ 16.5 V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 6μs
• Differential-Output No
• INL-DNL-LSB ±0.25, ±0.5
• Pd-Power-Dissipation 330 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Supply-Voltage-Max +/- 16.5 V
• Supply-Voltage-Min +/- 11.4 V
• Number-of-Converters 1 Converter
• INL-Integral-Nonlinearity 0.5 LSB
• DNL-Differential-Nonlinearity 0.75 LSB
