DAC8562TDGST Overview

Product belongs to the DAC8562T series. This product is categorized as Digital to Analog Converters Type: Precision DAC Digi-ReelR Alternate Packaging is the packaging method for this product 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Operational temperature range: -40°C ~ 125°C Output-Type: Voltage - Buffered Number of channels: 2 Channel Supplier device package: 10-VSSOP Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . External, Internal is the reference type. Number of D-A converters: 2 The 10μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: No Shutdown Power-off control: 3.2 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 900 uA is 92 nA. Serial SPI interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V The 0.01 % of this product is 0.2%. Number-of-Converters: 2 Converter 100 kS/s Sampling Rate Integral Nonlinearity: 4 LSB Reference voltage is 5.5 V . Differential nonlinearity: 0.2 LSB

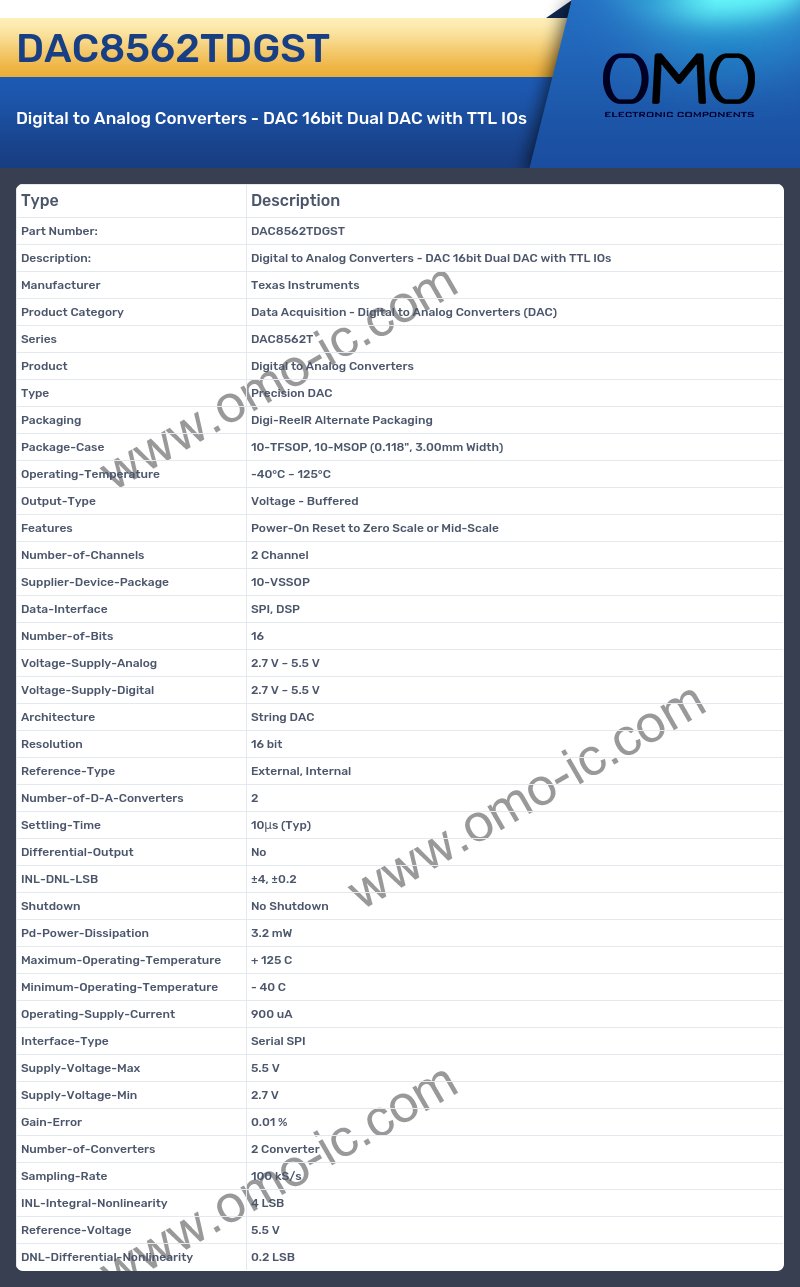

DAC8562TDGST Image

DAC8562TDGST Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8562T
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
• Operating-Temperature -40°C ~ 125°C
• Output-Type Voltage - Buffered
• Features Power-On Reset to Zero Scale or Mid-Scale
• Number-of-Channels 2 Channel
• Supplier-Device-Package 10-VSSOP
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Resolution 16 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±4, ±0.2
• Shutdown No Shutdown
• Pd-Power-Dissipation 3.2 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 900 uA
• Interface-Type Serial SPI
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Gain-Error 0.01 %
• Number-of-Converters 2 Converter
• Sampling-Rate 100 kS/s
• INL-Integral-Nonlinearity 4 LSB
• Reference-Voltage 5.5 V
• DNL-Differential-Nonlinearity 0.2 LSB
