DAC8581IPW

DAC8581IPW Overview

Product belongs to the DAC8581 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.002222 oz SMD/SMT Mounting-Style TSSOP-16 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 16-TSSOP Data-Interface: SPI 16 bits The Voltage-Supply-Analog is ±5V. The Voltage Supply Digital for this product is 1.8 V ~ 5.5 V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 1 The 1μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: 175 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type Maximum supply voltage of +/- 6 V Minimum supply voltage is +/- 4 V Number-of-Converters: 1 Converter 3 MS/s Sampling Rate Integral Nonlinearity: 0.1 % FS Differential nonlinearity: 0.5 LSB

DAC8581IPW Image

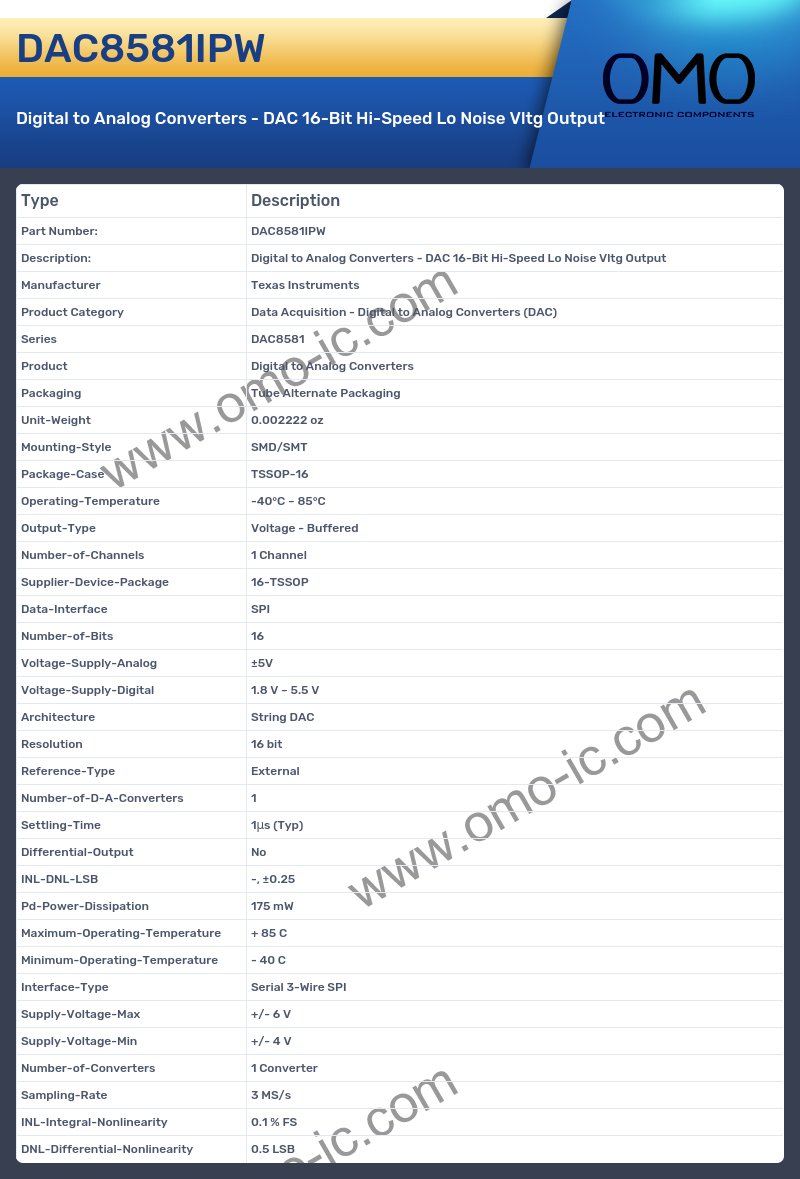

DAC8581IPW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8581
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002222 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-TSSOP
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog ±5V
• Voltage-Supply-Digital 1.8 V ~ 5.5 V
• Architecture String DAC
• Resolution 16 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 1μs (Typ)
• Differential-Output No
• INL-DNL-LSB -, ±0.25
• Pd-Power-Dissipation 175 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• Supply-Voltage-Max +/- 6 V
• Supply-Voltage-Min +/- 4 V
• Number-of-Converters 1 Converter
• Sampling-Rate 3 MS/s
• INL-Integral-Nonlinearity 0.1 % FS
• DNL-Differential-Nonlinearity 0.5 LSB
