DN3525N8-G

DN3525N8-G Overview

Product belongs to the - series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001862 oz SMD/SMT Mounting-Style TO-243AA Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: TO-243AA (SOT-89) Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 250V This product has an 350pF @ 25V value of 300pF @ 25V. This product's Depletion Mode. 360mA (Tj) continuous drain-ID current at 25°C; This product has an 6 Ohm @ 200mA, 0V of 12 Ohm @ 150mA, 0V. Power-off control: 1.6 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 25 ns of 16 ns. This product has a 25 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 360 mA. This product has a Vds-Drain-Source-Breakdown-Voltageof 250 V. The 6 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 25 ns This product has a 20 ns. This product operates in Depletion channel mode for optimal performance.

DN3525N8-G Image

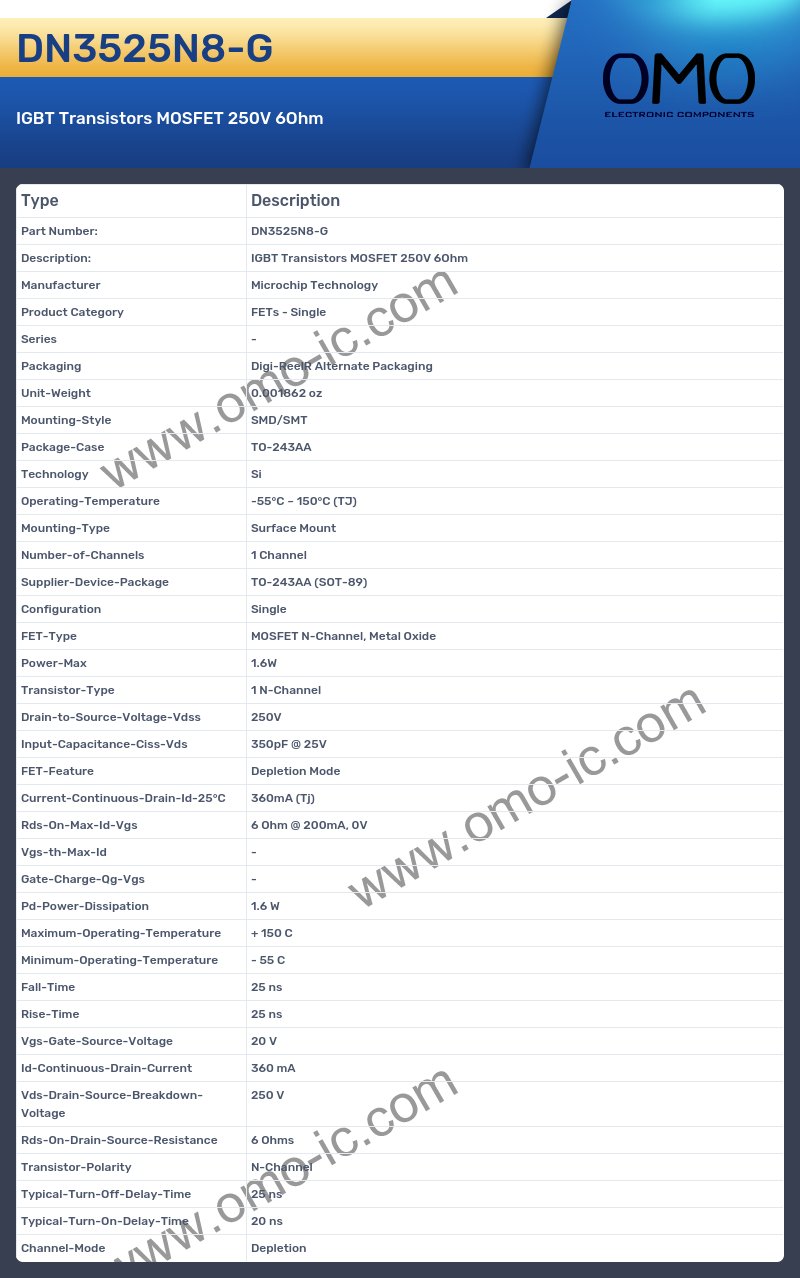

DN3525N8-G Specifications

• Manufacturer Microchip Technology
• Product Category FETs - Single
• Series -
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001862 oz
• Mounting-Style SMD/SMT
• Package-Case TO-243AA
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package TO-243AA (SOT-89)
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 1.6W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 250V
• Input-Capacitance-Ciss-Vds 350pF @ 25V
• FET-Feature Depletion Mode
• Current-Continuous-Drain-Id-25°C 360mA (Tj)
• Rds-On-Max-Id-Vgs 6 Ohm @ 200mA, 0V
• Vgs-th-Max-Id -
• Gate-Charge-Qg-Vgs -
• Pd-Power-Dissipation 1.6 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 25 ns
• Rise-Time 25 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 360 mA
• Vds-Drain-Source-Breakdown-Voltage 250 V
• Rds-On-Drain-Source-Resistance 6 Ohms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 25 ns
• Typical-Turn-On-Delay-Time 20 ns
• Channel-Mode Depletion
